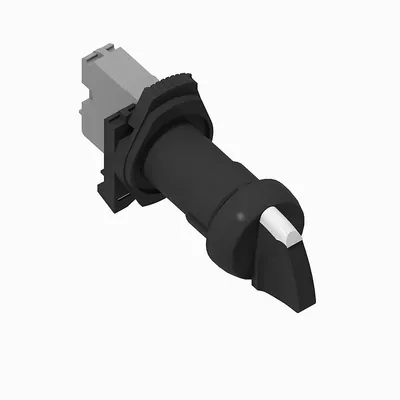

Allen-Bradley – 800FD-SL22R02 22mm Selector Switch 800F PB

MPN: 800FD-SL22R02 · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 800FD-SL22R02 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	800FD Monolithic Push Buttons
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 800FD-SL22R02 now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 800FD-SL22R02, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 800FD-SL22R02 be shipped?

800FD-SL22R02 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800FD-SL22R02 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800FD-SL22R02 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800FD-SL22R02, subject to availability and destination.

Allen-Bradley 800FD-SL22R02 — 22mm Selector Switch 800F PB. Discontinued by Rockwell Automation on June 30, 2025. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	June 30, 2025
Replacement category (Rockwell)	Direct Replacement
Repair options available	No

Specifications

Type	22mm Selector Switch
Contact block configuration	2 NC
Contact block durability	300000 cycles
Contact block mounting style	Latch
Contact block operational voltage, max	600V (A600, Q600) - screw termination
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC 15 - screw termination
Contact block utilization category (DC)	Q600, DC-13 - screw termination
Enclosure compatibility	IP66, Type 4/4X/13 (round plastic operator)
Hazardous location rating	false
Hole diameter	22.5 mm
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Latch material	Plastic
Material front ring	Plastic
Number of contacts as normally closed contact	2
Number of switch positions	2
Operating temperature	-25 °C
Operator cap/button material	Plastic
Operator cap color	Black
Operator construction/material	Plastic
Operator function	Spring return from left, 2 position
Operator mechanical design life (cycles, min.)	300000
Operator type	Selector switch - standard knob
Packaging	Standard pack (1 per package)
Shock	100 G
Spring-return	true
Storage temperature	-40 °C
Suitable for illumination	false
Switching function latching	false
Termination style	Screw for ring lugs
Type of control element	Short thumb-grip
Type of electric connection	Screw connection
Vibration	10 G
With front ring	true
With light source	false
