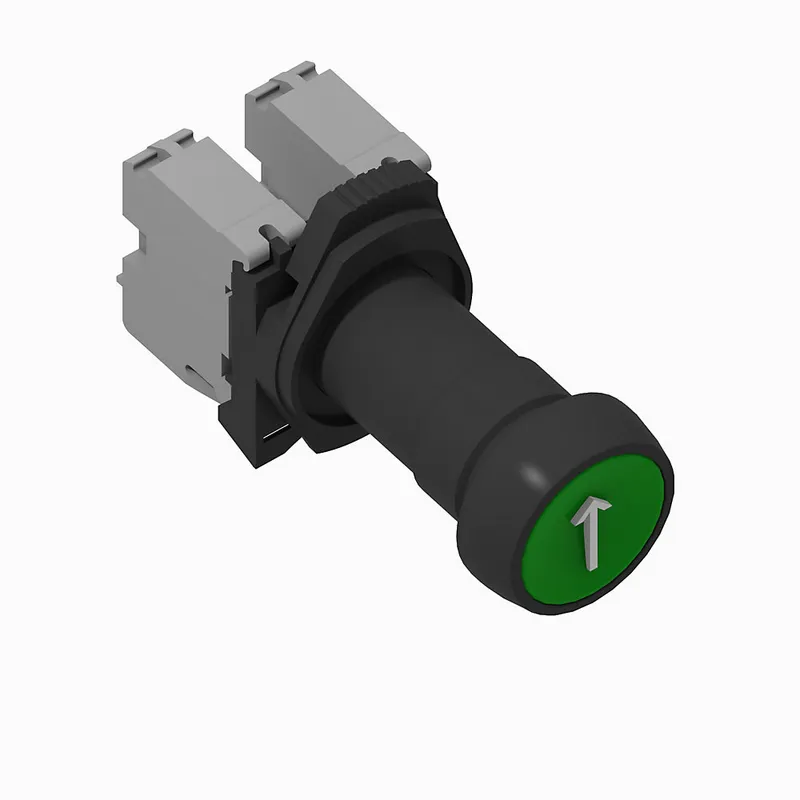

Allen-Bradley – 800FD-F308X11 22mm Momentary Push Button 800F PB

MPN: 800FD-F308X11 · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	800FD Monolithic Push Buttons
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 800FD-F308X11 be shipped?

800FD-F308X11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800FD-F308X11 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800FD-F308X11 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800FD-F308X11, subject to availability and destination.

Allen-Bradley 800FD-F308X11 — 22mm Momentary Push Button 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Type	22mm Momentary Push Button
Contact block configuration	1 NO/1 NC
Contact block durability	300000
Contact block mounting style	Latch
Contact block operational voltage, max	300V AC @ 300V DC (B300, R300) - screw termination
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)
Contact block thermal current rating	5 A
Contact block utilization category (AC)	B300, AC 15 - screw termination
Contact block utilization category (DC)	R300, DC-13 - screw termination
Enclosure compatibility	IP66 (Type 3/3R/4/4X/12/13)
Hole diameter	22.5 mm
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Latch material	Plastic
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Operating temperature	-25 °C
Operator cap/button material	Plastic
Operator cap/button shape	Round
Operator cap color (lens)	Green
Operator cap text/symbol	Arrow
Operator cap type	Flush push-button
Operator construction/material	Plastic
Operator function	22 mm momentary push button
Operator type	Push button
Shock	100 G
Storage temperature	-40 °C
Suitable for illumination	false
Termination style	Screw
Type of electric connection	Screw connection
Vibration	10 G
