Allen-Bradley 800F-PX22B

22mm Back of Panel Composite 800F PB

MPN
800F-PX22B
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 800F-PX22B?

Allen-Bradley 800F-PX22B — 22mm Back of Panel Composite 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Contact block configuration2 NO/2 NC
Contact block termination tightening torque6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block termination wire range#18...12 AWG (0.75...2.5 mm²)
Contact block typeNC early break
Humidity≤95% RH from 25...60 °C (77...140 °F)
Illumination lamp typeNo power module
Illumination module input voltageNo power module
Illumination module typeNo power module
Latch materialPlastic
Number of contacts as normally closed contact2
Number of contacts as normally open contact2
Operating temperature-25 °C
Operator mounting hole dimension22.5 mm
Shock100 g
Storage temperature-40 °C
Termination styleScrew
Type of electric connectionScrew connection
Vibration10 g

800F-PX22B: frequently asked questions

When can 800F-PX22B be shipped?

800F-PX22B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800F-PX22B in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800F-PX22B and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800F-PX22B, subject to availability and destination.

More Rockwell Automation / Allen-Bradley parts

Allen-Bradley 800F-PX14 – 22mm Back of Panel Composite 800F PB
Allen-Bradley
800F-PX14

22mm Back of Panel Composite 800F PB

Allen-Bradley 800F-PX20 – 22mm Back of Panel Composite 800F PB
Allen-Bradley
800F-PX20

/ – 22mm Back of Panel Composite 800F PB

Allen-Bradley 800F-PX20C – 22mm Contact Block 800F PB
Allen-Bradley
800F-PX20C

/ – 22mm Contact Block 800F PB

Allen-Bradley 800F-PX21C – Latch And Cb
Allen-Bradley
800F-PX21C

/ – Latch And Cb

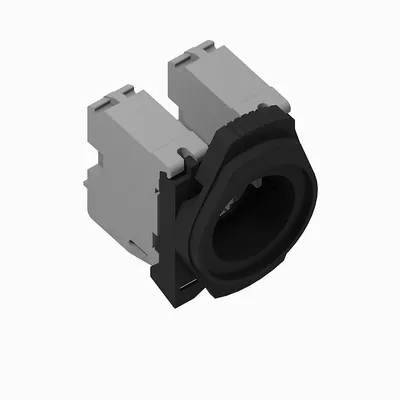

Allen-Bradley 800F-PX22S – 22mm Back of Panel Composite 800F PB
