Allen-Bradley 800F-PN5WX11E

22mm Back of Panel Composite 800F PB

MPN
800F-PN5WX11E
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 800F-PN5WX11E?

Allen-Bradley 800F-PN5WX11E — 22mm Back of Panel Composite 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Contact block configuration1 NO/1 NC
Contact block typeNO early make
Hole diameter22.5 mm
Humidity≤95% RH from 25...60 °C (77...140 °F)
Illumination lamp typeWhite LED
Illumination module input voltage120V AC/DC (incandescent), 120V AC (LED)
Illumination module termination tightening torque6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range#18...12 AWG (0.75...2.5 mm²)
Illumination module typeLED
Latch materialPlastic
Number of contacts as normally closed contact1
Number of contacts as normally open contact1
Operating temperature-25 °C
Shock100 G
Storage temperature-40 °C
Suitable for illuminationtrue
Supply voltage lamp120 V
Termination styleScrew
Type of electric connectionScrew connection
Vibration10 G

800F-PN5WX11E: frequently asked questions

When can 800F-PN5WX11E be shipped?

800F-PN5WX11E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800F-PN5WX11E in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800F-PN5WX11E and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800F-PN5WX11E, subject to availability and destination.

More Rockwell Automation / Allen-Bradley parts

Allen-Bradley 800F-PN5RX30 – 22mm Back of Panel Composite 800F PB
Allen-Bradley
800F-PN5RX30

22mm Back of Panel Composite 800F PB

Allen-Bradley 800F-PN5W – 22mm Back of Panel Composite 800F PB
Allen-Bradley
800F-PN5W

/ – 22mm Back of Panel Composite 800F PB

Allen-Bradley 800F-PN5WX02L – 22mm Back of Panel Composite 800F PB
Allen-Bradley
800F-PN5WX02L

22mm Back of Panel Composite 800F PB

Allen-Bradley 800F-PN5WX10 – 22mm Back of Panel Composite 800F PB
Allen-Bradley
800F-PN5WX10

/ – 22mm Back of Panel Composite 800F PB

Allen-Bradley 800F-PN7G – 22mm Back of Panel Composite 800F PB
Allen-Bradley
800F-PN7G

/ – 22mm Back of Panel Composite 800F PB

Allen-Bradley 800F-PN7GX11 – 22mm Back of Panel Composite 800F PB
Allen-Bradley
800F-PN7GX11

22mm Back of Panel Composite 800F PB

Allen-Bradley 800F-PN7R – 22mm Back of Panel Composite 800F PB
Allen-Bradley
800F-PN7R

/ – 22mm Back of Panel Composite 800F PB

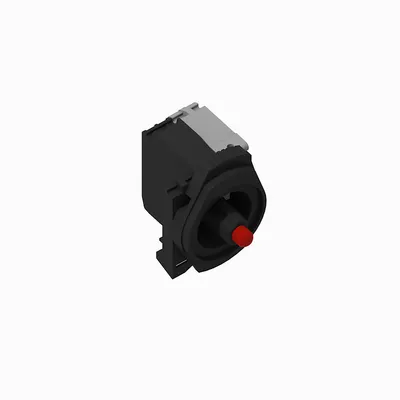

Allen-Bradley 800F-PN7RX02 – 22mm Back of Panel Composite 800F PB
