Allen-Bradley 800F-PN5RX10E

22mm Back of Panel Composite 800F PB

MPN
800F-PN5RX10E
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 800F-PN5RX10E?

Allen-Bradley 800F-PN5RX10E — 22mm Back of Panel Composite 800F PB. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Type22mm Back of Panel Composite
Contact block configuration1 NO
Contact block typeNO early make
Hole diameter22.5 mm
Humidity≤95% RH from 25...60 °C (77...140 °F)
Illumination lamp typeRed LED
Illumination module input voltage120V AC/DC (incandescent), 120V AC (LED)
Illumination module termination tightening torque6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range#18...12 AWG (0.75...2.5 mm²)
Illumination module typeLED
Latch materialPlastic
Number of contacts as normally open contact1
Operating temperature-25 °C
Shock100 G
Storage temperature-40 °C
Suitable for illuminationtrue
Supply voltage lamp120 V
Termination styleScrew
Type of electric connectionScrew connection
Vibration10 G

800F-PN5RX10E: frequently asked questions

When can 800F-PN5RX10E be shipped?

800F-PN5RX10E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 800F-PN5RX10E in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 800F-PN5RX10E and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800F-PN5RX10E, subject to availability and destination.

More Rockwell Automation / Allen-Bradley parts

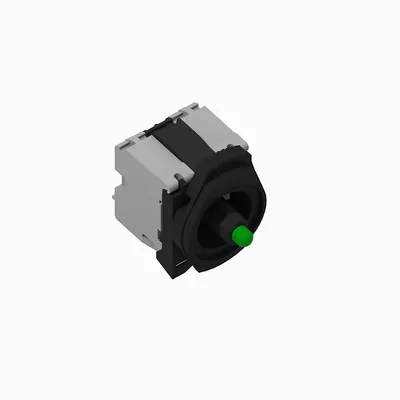

Allen-Bradley 800F-PN5GX11S – 22mm Back of Panel Composite 800F PB
Allen-Bradley
800F-PN5GX11S

22mm Back of Panel Composite 800F PB

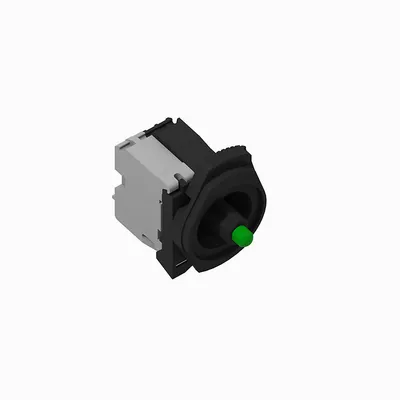

Allen-Bradley 800F-PN5GX30 – 22mm Back of Panel Composite 800F PB
