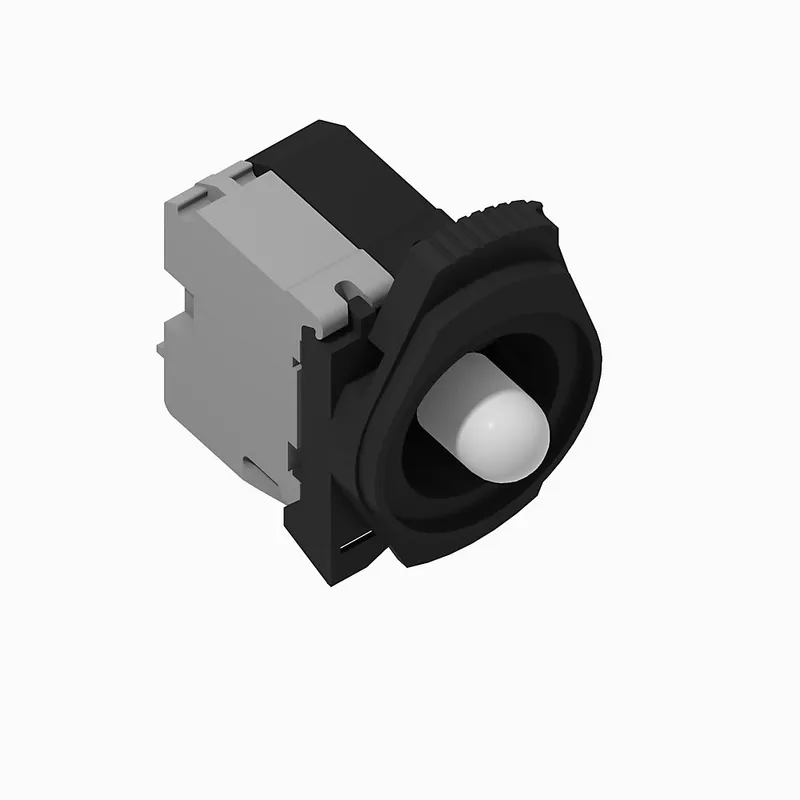

Allen-Bradley – 800F-PD3CX30V 22mm Back of Panel Composite 800F PB
Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 800F-PD3CX30V (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | 800F 90 mm Enclosed |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the 800F-PD3CX30V now that it is discontinued?
Yes. Rockwell Automation / Allen-Bradley has discontinued the 800F-PD3CX30V, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 800F-PD3CX30V be shipped?
800F-PD3CX30V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 800F-PD3CX30V in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 800F-PD3CX30V and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 800F-PD3CX30V, subject to availability and destination.
Allen-Bradley 800F-PD3CX30V — 22mm Back of Panel Composite 800F PB. Discontinued by Rockwell Automation on June 30, 2025. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued |
| Discontinued date | June 30, 2025 |
| Replacement category (Rockwell) | Engineering Replacement |
| Repair options available | No |
Specifications
| Type | 22mm Back of Panel Composite |
| Contact block configuration | 3 NO |
| Contact block type | Low voltage |
| Hole diameter | 22.5 mm |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Illumination lamp type | Incandescent |
| Illumination module input voltage | 24V AC/DC (incandescent or LED) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Illumination module termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Illumination module type | Incandescent |
| Latch material | Plastic |
| Number of contacts as normally open contact | 3 |
| Operating temperature | -25 °C |
| Shock | 100 G |
| Storage temperature | -40 °C |
| Suitable for illumination | true |
| Supply voltage lamp | 24 V |
| Termination style | Screw |
| Type of electric connection | Screw connection |
| Vibration | 10 G |
