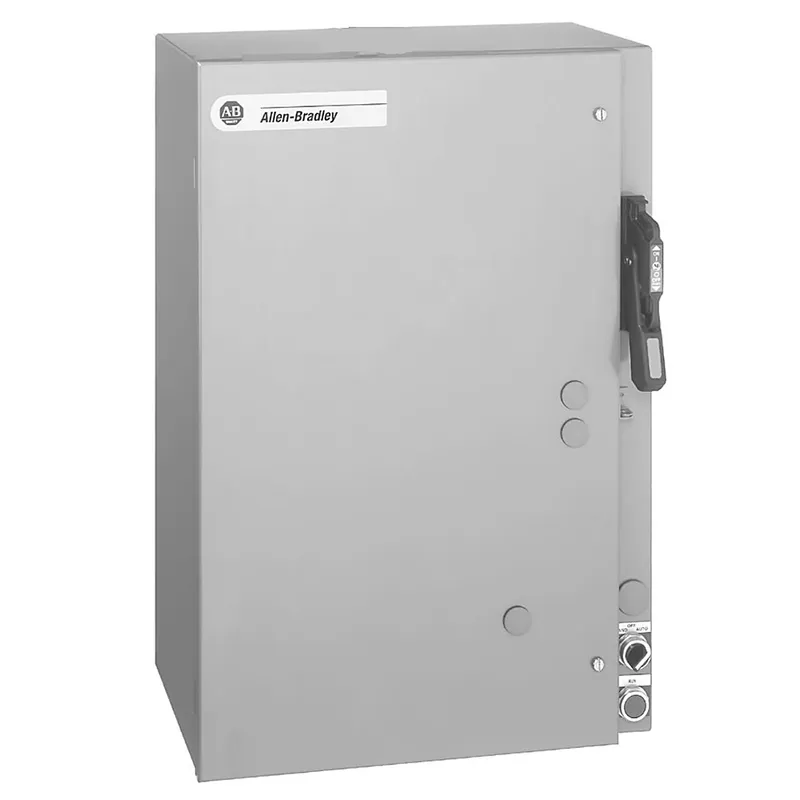

Allen-Bradley – 513M-BFBD-3-38 NEMA COMB Starter CB Oversize Encl

MPN: 513M-BFBD-3-38 · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Programmable Controllers
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 513M-BFBD-3-38 be shipped?

513M-BFBD-3-38 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 513M-BFBD-3-38 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 513M-BFBD-3-38 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 513M-BFBD-3-38, subject to availability and destination.

Allen-Bradley 513M-BFBD-3-38 — NEMA COMB Starter CB Oversize Encl. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Control Voltage	120V 60 Hz
Horsepower Code	3 HP (Mtr Prt), 80A (Fdr Prt)
Sub Brand	NEMA
Circuit breaker type	Instantaneous trip, standard
Continuous current rating	27 A
Coordination class according to IEC 60947-4-3	Class 2
Degree of protection (NEMA)	12
Depth	10.19 mm
Enclosure type	NEMA 3R/4/12 painted
External reset possible	true
Factory installed modifications	HAND-OFF-AUTO selector switch
Height	30 mm
Horsepower	3 Hp
Load voltage	460V
Material housing	Steel
NEMA size	Size 1
Overload relay	Eutectic alloy overload relay
Rated control supply voltage at AC 50 Hz	110 V
Rated control supply voltage at AC 60 Hz	120 V
Suitable for emergency stop	true
Temperature compensated overload protection	true
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Type of electrical connection of main circuit	Screw connection
Type of motor starter	Direct online starter (DOL)
Voltage type for actuating	AC
Weight	90 lb
Width	20.5 mm
With fuse	false
With short-circuit release	true
With transformer	false
