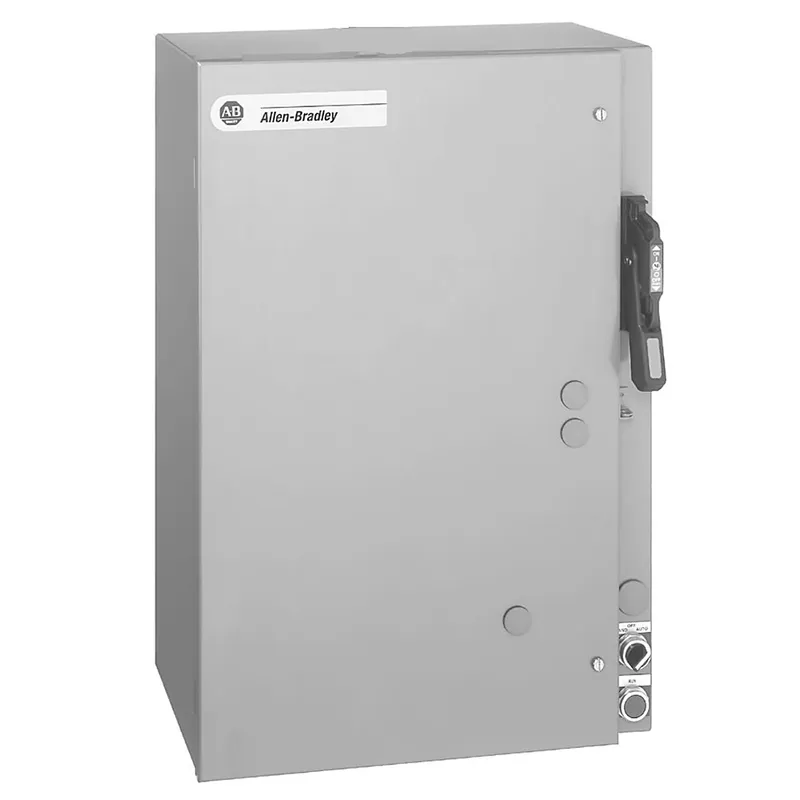

Allen-Bradley 513M-BCB-A2G-6P-41-90011
NEMA COMB Starter CB Oversize Encl
- MPN
- 513M-BCB-A2G-6P-41-90011
- Category
- Programmable Controllers
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 513M-BCB-A2G-6P-41-90011?
Allen-Bradley 513M-BCB-A2G-6P-41-90011 — NEMA COMB Starter CB Oversize Encl. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Repair options available | No |
Specifications
| Circuit-Breaker Type | Instantaneous Trip - Standard |
| Control Voltage | 120V 60 Hz |
| Horsepower Code | 10HP (Mtr Prt), 125A (Fdr Prt) |
| Sub Brand | NEMA |
| Circuit breaker type | Instantaneous trip, standard |
| Continuous current rating | 27 A |
| Coordination class according to IEC 60947-4-3 | Class 2 |
| Degree of protection (NEMA) | 4X |
| Depth | 10.19 mm |
| Enclosure type | NEMA 4/4X stainless steel |
| External reset possible | true |
| Factory installed modifications | Transformer with 2 primary & 1 sary fuse |
| Height | 30 mm |
| Horsepower | 10 Hp |
| Load voltage | 460V |
| Material housing | Stainless steel |
| NEMA size | Size 1 |
| Overload relay | E1 plus, manual reset, Class 20, full load current adjustment range 5.7...18 A |
| Overload release current setting | 5.7 A |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Release class | CLASS 20 |
| Suitable for emergency stop | true |
| Temperature compensated overload protection | true |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| Weight | 90 lb |
| Width | 20.5 mm |
| With fuse | false |
| With short-circuit release | true |
| With transformer | true |
No matching specifications
513M-BCB-A2G-6P-41-90011: frequently asked questions
When can 513M-BCB-A2G-6P-41-90011 be shipped?
513M-BCB-A2G-6P-41-90011 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 513M-BCB-A2G-6P-41-90011 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 513M-BCB-A2G-6P-41-90011 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 513M-BCB-A2G-6P-41-90011, subject to availability and destination.
