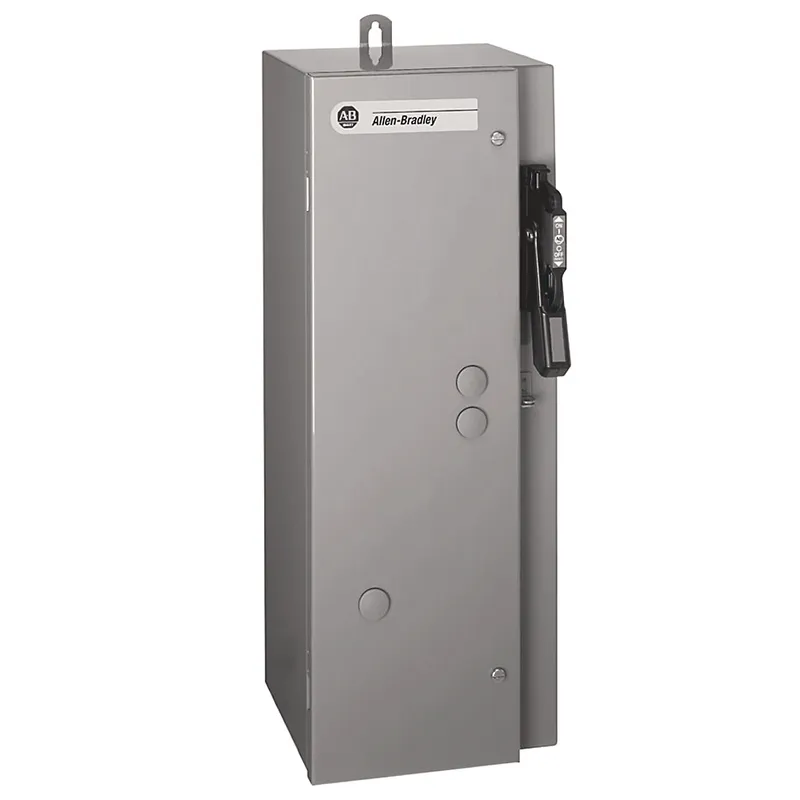

Allen-Bradley – 513-EFB-A2M-22-50-412-901-VH NEMA Size 4 COMB Starter Circuit Breaker

Name: Allen-Bradley – 513-EFB-A2M-22-50-412-901-VH NEMA Size 4 COMB Starter Circuit Breaker
Brand: Rockwell Automation / Allen-Bradley
SKU: 513-EFB-A2M-22-50-412-901-VH

MPN: 513-EFB-A2M-22-50-412-901-VH · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	LV NEMA Combination Starters
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 513-EFB-A2M-22-50-412-901-VH be shipped?

513-EFB-A2M-22-50-412-901-VH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 513-EFB-A2M-22-50-412-901-VH in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 513-EFB-A2M-22-50-412-901-VH and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 513-EFB-A2M-22-50-412-901-VH, subject to availability and destination.

Allen-Bradley 513-EFB-A2M-22-50-412-901-VH — NEMA Size 4 COMB Starter Circuit Breaker. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Circuit-Breaker Type	Instantaneous Trip - Standard
Product Family	NEMA
Altitude	10000 ft before derating
Auxiliary contact material	Silver
Available short circuit amperes RMS symmetrical	65000 A
Circuit breaker type	Instantaneous trip, standard
Circuit closing inrush current peak including offset, max	1581 A
Coil operating limits	85 to 110 %
Continuous current rating	135 A
Coordination class according to IEC 60947-4-3	Class 2
Corrosion-resistance	All metal parts are treated for corrosion-resistance
Degree of protection (NEMA)	12
Depth	10.19 mm
Enclosure type	NEMA 3R/4/12 painted
External reset possible	true
Factory installed modifications	Vault hardware installed
Heat dissipation	14.8 W (2...3 poles)
Height	30 mm
Horsepower	100 Hp
Load voltage	460V
Material housing	Steel
Mechanical life operations	5000000
NEMA size	Size 4
Number of auxiliary contacts, max	8
Operating position	Vertical
Operating temperature	-25 °C
Operating time, drop-out	20 ms
Operating time, pick-up	27 ms
Operating volt amperes burden	Sealed: 69VA, 60 Hz coils (2...3 poles)
Overload relay	E1 plus, manual reset, Class 20, full load current adjustment range 57...180 A
Overload release current setting	57 A
Power contact material	Silver alloy
Rated control supply voltage at AC 50 Hz	480 V
Rated control supply voltage at AC 60 Hz	480 V
Release class	CLASS 20
Required torque on power terminal wire clamps and pressure connectors or lugs	275 in-lb
Suitable for emergency stop	true
Temperature compensated overload protection	true
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Type of electrical connection of main circuit	Screw connection
Type of motor starter	Direct online starter (DOL)
Type of power terminal	Pressure terminals
Voltage type for actuating	AC
Weight	90 lb
Width	20.5 mm
Wire size	For power terminals: 6...4 AWG
With fuse	false
With short-circuit release	true
With transformer	false
