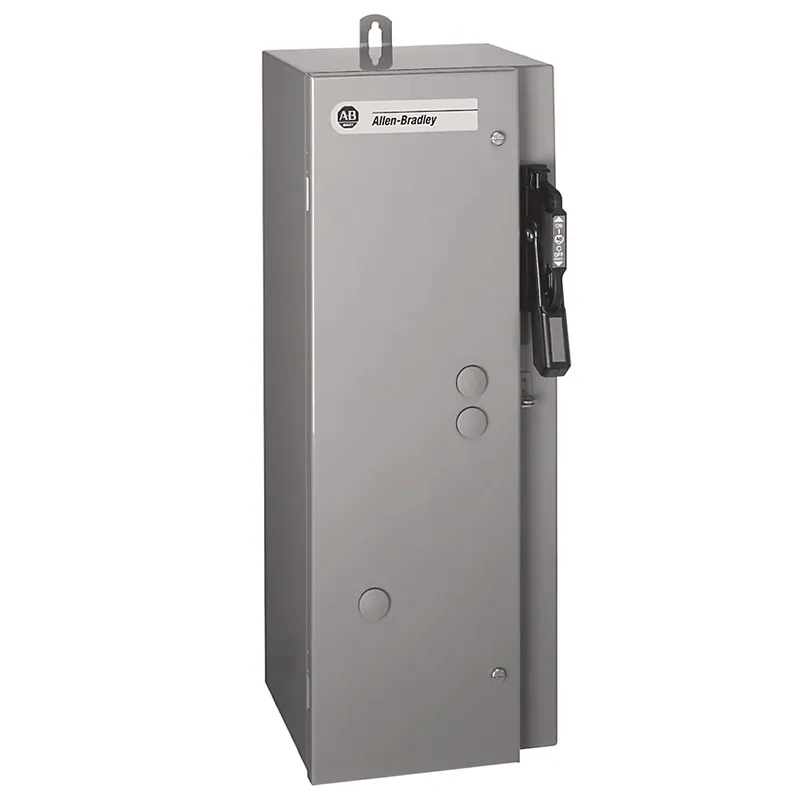

Allen-Bradley 513-CUBD-A2J-44

NEMA Size 2 COMB Starter Circuit Breaker

MPN
513-CUBD-A2J-44
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 513-CUBD-A2J-44?

Allen-Bradley 513-CUBD-A2J-44 — NEMA Size 2 COMB Starter Circuit Breaker. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Circuit-Breaker TypeInstantaneous Trip - Standard
Control Voltage120V 60 Hz
Sub BrandNEMA
Altitude10000 ft before derating
Auxiliary contact materialSilver
Available short circuit amperes RMS symmetrical65000 A
Circuit breaker typeInstantaneous trip, standard
Circuit closing inrush current peak including offset, max483 A
Coil operating limits85 to 110 %
Continuous current rating45 A
Coordination class according to IEC 60947-4-3Class 2
Corrosion-resistanceAll metal parts are treated for corrosion-resistance
Degree of protection (NEMA)3R
Depth15.39 mm
Enclosure typeNEMA 3R/7/9 unilock
External reset possibletrue
Heat dissipation5.9 W (2...3 poles)
Height15.66 mm
Horsepower25 Hp
Load voltage460V
Material housingAluminium
Mechanical life operations1.0E7
NEMA sizeSize 2
Number of auxiliary contacts, max8
Operating positionVertical
Operating temperature-25 °C
Operating time, drop-out13 ms
Operating time, pick-up27 ms
Operating volt amperes burdenSealed: 29VA, 60 Hz coils (2...3 poles)
Overload relayE1 plus, manual reset, Class 20, full load current adjustment range 14...45 A
Overload release current setting14 A
Power contact materialSilver alloy
Rated control supply voltage at AC 50 Hz110 V
Rated control supply voltage at AC 60 Hz120 V
Release classCLASS 20
Required torque on power terminal wire clamps and pressure connectors or lugs45 in-lb
Suitable for emergency stoptrue
Temperature compensated overload protectiontrue
Type of electrical connection for auxiliary- and control current circuitScrew connection
Type of electrical connection of main circuitScrew connection
Type of motor starterDirect online starter (DOL)
Type of power terminalPressure terminals
Voltage type for actuatingAC
Width13.26 mm
Wire sizeFor power terminals: 14...4 AWG
With fusefalse
With short-circuit releasetrue
With transformerfalse

513-CUBD-A2J-44: frequently asked questions

When can 513-CUBD-A2J-44 be shipped?

513-CUBD-A2J-44 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 513-CUBD-A2J-44 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 513-CUBD-A2J-44 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 513-CUBD-A2J-44, subject to availability and destination.
