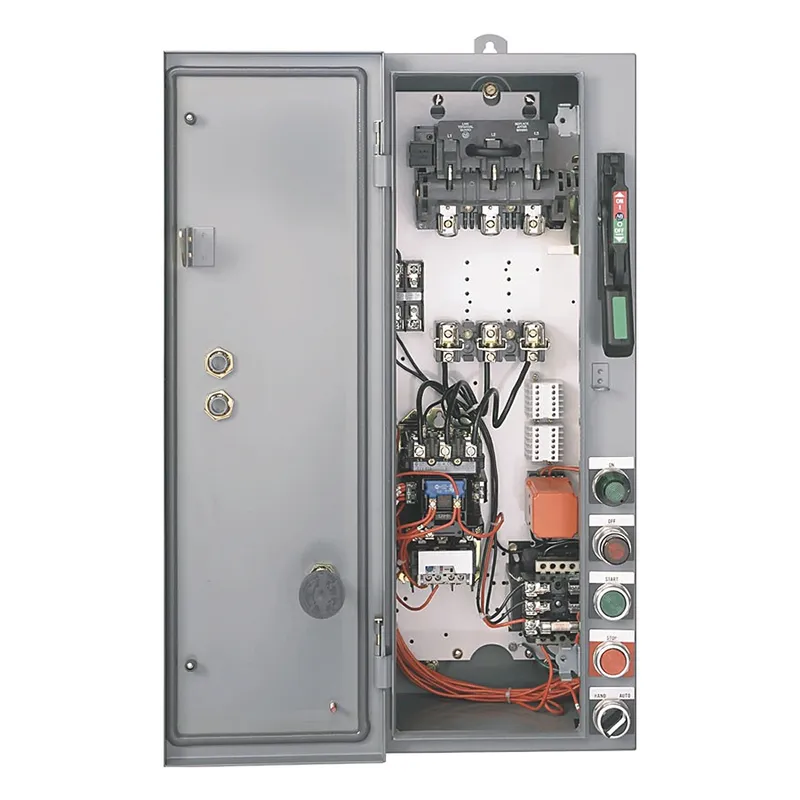

Allen-Bradley 512-DFB-A2L-26R-VH

NEMA Combination Starter Disconnect

MPN
512-DFB-A2L-26R-VH
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 512-DFB-A2L-26R-VH?

Allen-Bradley 512-DFB-A2L-26R-VH — NEMA Combination Starter Disconnect. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Disconnect TypeFusible
Fuse Clips100 A Class R
Product FamilyNEMA
Altitude10000 ft before derating
Auxiliary contact materialSilver
Available short circuit amperes RMS symmetrical100000 A
Circuit closing inrush current peak including offset, max947 A
Coil operating limits85...110%
Continuous current90 A
Coordination class according to IEC 60947-4-3Class 2
Corrosion-resistanceAll metal parts are treated for corrosion-resistance
Degree of protection (NEMA)12
Depth10.19 mm
Enclosure typeNEMA 3R/4/12 non-metal handle
External reset possibletrue
Factory installed modelsVault hardware installed
Fuse clips100 A Class R
Heat dissipation10 W (2...3 poles)
Height30 mm
Hp rating50 Hp
Load voltage460V
Material housingSteel
Mechanical life operations5000000
NEMA sizeSize 3
Number of auxiliary contacts, max8
Operating positionVertical
Operating temperature-25 °C
Operating time, drop-out20 ms
Operating time, pick-up37 ms
Operating volt amperes burdenSealed: 45VA, 60 Hz coils (2...3 poles)
Overload relayE1 plus, manual reset, Class 20, full load current adjustment range 66...110 A
Overload release current setting66 A
Power contact materialSilver Alloy
Rated control supply voltage at AC 50 Hz480 V
Rated control supply voltage at AC 60 Hz480 V
Release classCLASS 20
Required torque on power terminal wire clamps and pressure connectors or lugs150 in-lb
Suitable for emergency stoptrue
Temperature compensated overload protectiontrue
Type of electrical connection for auxiliary- and control current circuitScrew connection
Type of electrical connection of main circuitScrew connection
Type of motor starterDirect online starter (DOL)
Type of power terminalPressure terminals
Voltage type for actuatingAC
Weight90 lb
Width20.5 mm
Wire sizeFor power terminals: 8...1 AWG
With fusetrue
With short-circuit releasetrue
With transformerfalse

512-DFB-A2L-26R-VH: frequently asked questions

When can 512-DFB-A2L-26R-VH be shipped?

512-DFB-A2L-26R-VH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 512-DFB-A2L-26R-VH in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 512-DFB-A2L-26R-VH and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 512-DFB-A2L-26R-VH, subject to availability and destination.
