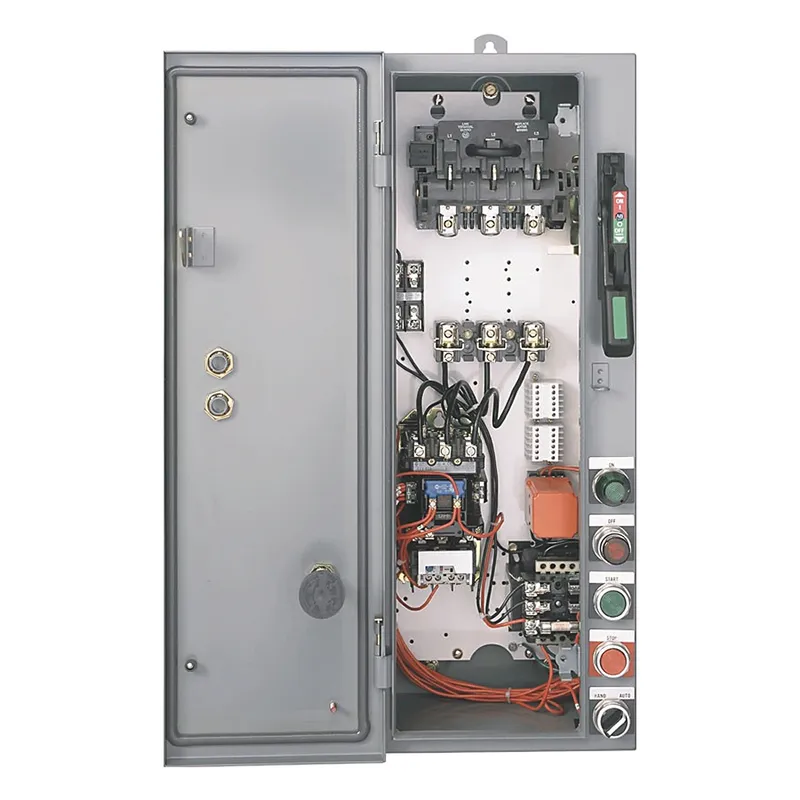

Allen-Bradley 512-BFCD-1-4G-24R

NEMA Combination Starter Disconnect

MPN
512-BFCD-1-4G-24R
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 512-BFCD-1-4G-24R?

Allen-Bradley 512-BFCD-1-4G-24R — NEMA Combination Starter Disconnect. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Control Voltage120V 60 Hz
Disconnect TypeFusible
Fuse Clips30 A Class R
Product FamilyNEMA
Altitude10000 ft before derating
Auxiliary contact materialSilver
Available short circuit amperes RMS symmetrical100000 A
Circuit closing inrush current peak including offset, max288 A
Coil operating limits85...110%
Continuous current27 A
Coordination class according to IEC 60947-4-3Class 2
Corrosion-resistanceAll metal parts are treated for corrosion-resistance
Degree of protection (NEMA)12
Depth8.25 mm
Enclosure typeNEMA 3R/4/12 non-metal handle
External reset possibletrue
Factory installed modelsSTART-STOP push button
Fuse clips30 A Class R
Heat dissipation5.9 W
Height27.5 mm
Hp rating10 Hp
Load voltage575V
Material housingSteel
Mechanical life operations1.0E7
NEMA sizeSize 1
Number of auxiliary contacts, max8
Number of indicator lights1
Operating positionVertical
Operating temperature-25 °C
Operating time, drop-out14 ms
Operating time, pick-up22 ms
Operating volt amperes burdenSealed: 29VA, 60 Hz coils
Overload relayEutectic alloy overload relay
Power contact materialSilver Alloy
Rated control supply voltage at AC 50 Hz110 V
Rated control supply voltage at AC 60 Hz120 V
Required torque on power terminal wire clamps and pressure connectors or lugs20 in-lb
Suitable for emergency stoptrue
Temperature compensated overload protectiontrue
Type of electrical connection for auxiliary- and control current circuitScrew connection
Type of electrical connection of main circuitScrew connection
Type of motor starterDirect online starter (DOL)
Type of power terminalSaddle or wire clA
Voltage type for actuatingAC
Weight40 lb
Width10.5 mm
Wire sizeFor power terminals: 14...8 AWG
With fusetrue
With short-circuit releasetrue
With transformerfalse
