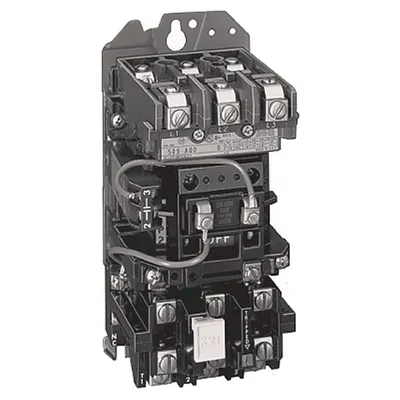

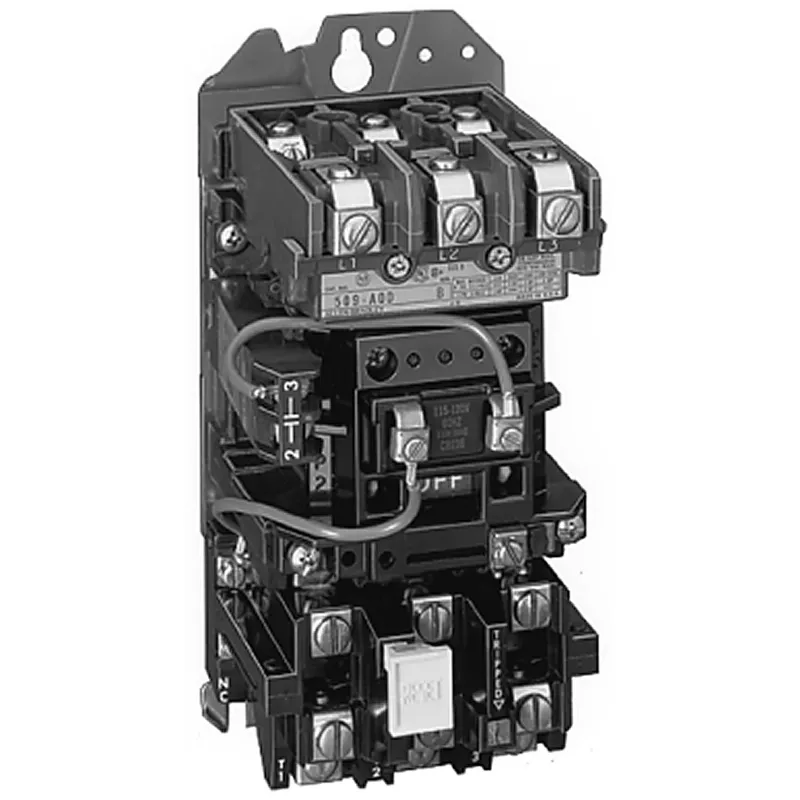

Allen-Bradley – 509-AOD-A2E-17-90 NEMA 3 Phase Non-Reversing Starter

MPN: 509-AOD-A2E-17-90 · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	NEMA Open/Enclosed Full Voltage Starters
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 509-AOD-A2E-17-90 be shipped?

509-AOD-A2E-17-90 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 509-AOD-A2E-17-90 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 509-AOD-A2E-17-90 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 509-AOD-A2E-17-90, subject to availability and destination.

Allen-Bradley 509-AOD-A2E-17-90 — NEMA 3 Phase Non-Reversing Starter. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Altitude	10000 ft before derating
Auxiliary contact material	Silver
Average operating time, drop-out	16 ms
Average operating time, pick-up	21 ms
Circuit closing inrush current peak including offset, max	140 A
Coil operating limits	85...110%
Continuous current	18 A
Coordination class according to IEC 60947-4-3	Class 2
Corrosion-resistance	All metal parts are treated for corrosion-resistance
Enclosure	Open type
External reset possible	true
Factory installed models	Surge suppressor
Heat dissipation	5.9 W
Hp rating, max	5Hp @ 575V load voltage, 3-phase (non-plugging and non-jogging duty)
Mechanical life operations	1.0E7
NEMA size	Size 0
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts, max	8
Number of indicator lights	0
Operating position	Vertical
Operating temperature	55 °C
Operating volt amperes burden	Sealed: 29VA, 60 Hz coils
Overload relay	Overload relay, full load current adjustment range 1.0...5.0 A
Overload release current setting	1 A
Power contact material	Silver Alloy
Rail mounting possible	true
Rated control supply voltage at AC 50 Hz	110 V
Rated control supply voltage at AC 60 Hz	120 V
Release class	Adjustable
Required torque on power terminal wire clamps and pressure connectors or lugs	20 in-lb
Requirements for sizing of wire	All wire rated 167 °F (75 °C) or higher must be sized per the local electrical code for 167 °F (75 °C) wire
Service limit current rating	21 A
Suitable for emergency stop	true
Supporting protocol for DeviceNet	true
Supporting protocol for EtherNet/IP	false
Supporting protocol for PROFIBUS	false
Temperature compensated overload protection	true
Transformer primary switching kVA rating	5.2 kVA @ 575V load voltage, 3-phase (inrush current ≤20 times continuous current)
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Type of electrical connection of main circuit	Screw connection
Type of motor starter	Direct online starter (DOL)
Type of power terminal	Saddle or wire clA
Voltage type for actuating	AC
Wire size	For power terminals: 14...10 AWG
With fuse	false
With short-circuit release	true
With transformer	false
