Allen-Bradley 509-AAXA-1

NEMA Size 0 Non-Reversing Starter

MPN
509-AAXA-1
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 509-AAXA-1?

Allen-Bradley 509-AAXA-1 — NEMA Size 0 Non-Reversing Starter. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Altitude10000 ft before derating
Auxiliary contact materialSilver
Circuit closing inrush current peak including offset, max140 A
Coil operating limits85...110%
Continuous current18 A
Coordination class according to IEC 60947-4-3Class 2
Corrosion-resistanceAll metal parts are treated for corrosion-resistance
Degree of protection (NEMA)1
Depth2.81 mm
Enclosure type ratingNEMA 1 general purpose
External reset possibletrue
Factory installed modelsSTART-STOP push button
Heat dissipation5.9 W
Height9.67 mm
Hp rating2 Hp
Load voltage230V
Material housingSteel
Mechanical life operations1.0E7
NEMA sizeNEMA 0
Number of auxiliary contacts, max8
Operating positionVertical
Operating temperature-25 °C
Operating time, drop-out16 ms
Operating time, pick-up21 ms
Operating volt amperes burdenSealed: 29VA, 60 Hz coils
Overload relayEutectic overload
Power contact materialSilver Alloy
Rated control supply voltage at AC 50 Hz220 V
Rated control supply voltage at AC 60 Hz230 V
Required torque on power terminal wire clamps and pressure connectors or lugs20 in-lb
Service limit current rating21 A
Suitable for emergency stoptrue
Temperature compensated overload protectiontrue
Type of electrical connection for auxiliary- and control current circuitScrew connection
Type of electrical connection of main circuitScrew connection
Type of motor starterDirect online starter (DOL)
Type of power terminalSaddle or wire clA
Voltage type for actuatingAC
Width6.75 mm
Wire sizeFor power terminals: 14...10 AWG
With fusefalse

509-AAXA-1: frequently asked questions

When can 509-AAXA-1 be shipped?

509-AAXA-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 509-AAXA-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 509-AAXA-1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 509-AAXA-1, subject to availability and destination.

More Rockwell Automation / Allen-Bradley parts

Allen-Bradley 509-AAH-A2F – NEMA Size 0 Non-Reversing Starter
Allen-Bradley
509-AAH-A2F

/ – NEMA Size 0 Non-Reversing Starter

Allen-Bradley 509-AAH-A2F-6GP – NEMA Size 0 Non-Reversing Starter
Allen-Bradley
509-AAH-A2F-6GP

/ – NEMA Size 0 Non-Reversing Starter

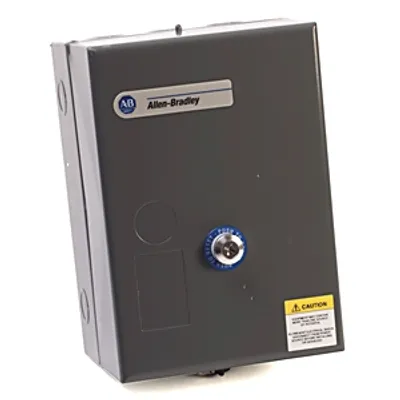

Allen-Bradley 509-AAJ-3-4R – NEMA Size 0 Non-Reversing Starter
