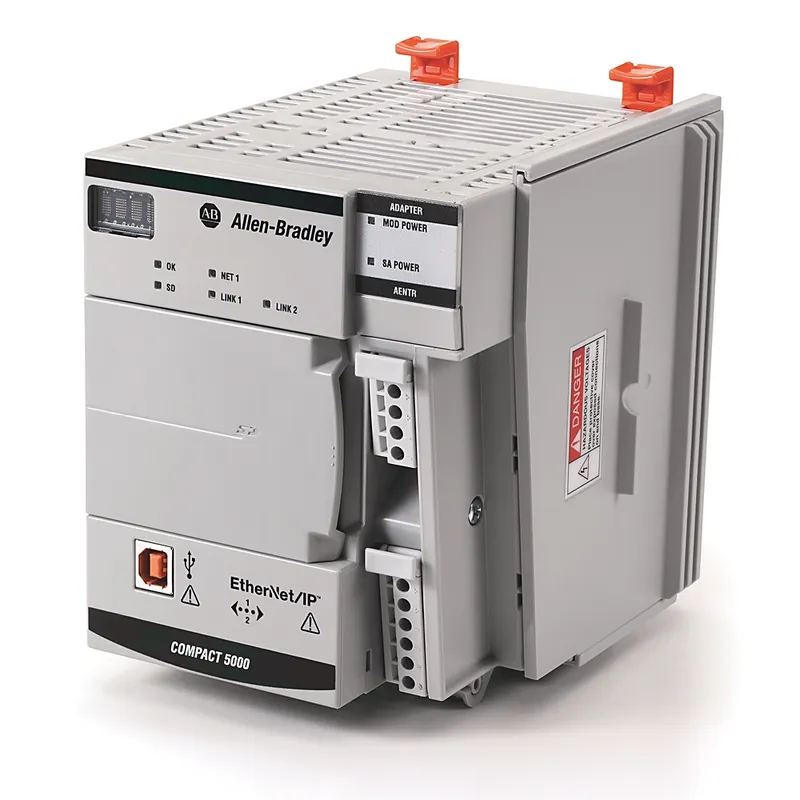

Allen-Bradley – 5069-AEN2TR Compact 5000 EtherNet/IP Adapter

MPN: 5069-AEN2TR · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 5069-AEN2TR (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Compact 5000 I/O Modules
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 5069-AEN2TR now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 5069-AEN2TR, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 5069-AEN2TR be shipped?

5069-AEN2TR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5069-AEN2TR in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5069-AEN2TR and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5069-AEN2TR, subject to availability and destination.

Allen-Bradley 5069-AEN2TR — Compact 5000 EtherNet/IP Adapter. Discontinued by Rockwell Automation on August 26, 2021. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	August 26, 2021
Replacement category (Rockwell)	Engineering Replacement
Repair options available	Yes

Specifications

Depth	137mm, 5.39"
Height	138mm, 5.43"
Isolation	300V(cont);No isolation
ATEX temp code	T4
Conducted RF immunity	10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz on power and Ethernet ports
Depth	137 mm
EFT/B immunity	±4kV @ 5kHz on power ports, ±2kV @ 5kHz on Ethernet ports
Emissions	IEC 61000-6-4
Enclosure type rating	None (open-style)
ESD immunity	6 kV contact discharges, 8 kV air discharges
Height	138 mm
Insulation stripping length	5069-RTB4-SPRING, 5069-RTB6-SPRING connections: 10 mm (0.39 in.), 5069-RTB4-SCREW, 5069-RTB6-SCREW connections: 12 mm (0.47 in.)
IO link master	false
Isolation voltage	250V (continuous), basic insulation type, SA, and MOD power to backplane, 250V (continuous), basic insulation type, SA to MOD power, 250V (continuous), basic insulation type, Ethernet to backplane, 250V (continuous), double insulation type, Ethernet to MO
MOD power	450mA @ 18...32V DC
MOD Power inrush	850 mA for 125 ms
MOD power passthrough, max	9.55A @ 18...32V DC, Maximum level of MOD Power current that the adapter can pass through to the next module in the system
Module keying	Electronic keying via progming software
Nonoperating temperature	-40 °C
Number of HW-interfaces industrial Ethernet	1
Operating temperature	0 to 60 °C
Power dissipation, max	8.5 W
Radiated RF immunity	10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
Redundancy	false
Relative humidity	5...95% noncondensing
RTB keying	None
RTB torque	5069-RTB4-SCREW and 5069-RTB6-SCREW only: 0.4 Nm (3.5 in-lb)
SA power	10mA @ 0...32V DC, 25mA @ 0...240V AC, 47...63 Hz, ATEX/IECEx, 125V AC maximum
SA power passthrough, max	9.95A @ 0...32V DC, 9.975A @ 0...240V AC, 47...63 Hz, ATEX/IECEx, 125V AC maximum, Maximum level of SA power current that the adapter can pass through to the next module in the system
Shock	Operating: 30 G, Non operating: 50 G
Supporting protocol for ASI	false
Supporting protocol for AS-Interface Safety at Work	false
Supporting protocol for CAN	false
Supporting protocol for Data-Highway	false
Supporting protocol for DeviceNet	false
Supporting protocol for DeviceNet Safety	false
Supporting protocol for EtherNet/IP	true
Supporting protocol for Foundation Fieldbus	false
Supporting protocol for INTERBUS	false
Supporting protocol for INTERBUS-Safety	false
Supporting protocol for KNX	false
Supporting protocol for LON	false
Supporting protocol for Modbus	false
Supporting protocol for other bus systems	false
Supporting protocol for PROFIBUS	false
Supporting protocol for PROFINET CBA	false
Supporting protocol for PROFINET IO	false
Supporting protocol for PROFIsafe	false
Supporting protocol for SafetyBUS p	false
Supporting protocol for SERCOS	false
Supporting protocol for SUCONET	false
Supporting protocol for TCP/IP	false
Surge transient immunity	±1kV line-line (DM) and ±2kV line-earth (CM) on power ports, ±2kV line-earth (CM) on Ethernet ports
Surrounding air temperature, max	60 °C
Thermal dissipation, max	29 btu/h
Type of data transmission	Module rack extension
Vibration	5 G @ 10...500 Hz
Voltage variation	10 ms interruption on MOD power port
Width	98 mm
Wire size	5069-RTB4-SPRING, 5069-RTB6-SPRING: 0.5...1.5 mm² (22...16 AWG) solid or stranded copper wire rated at 105 °C (221 °F), or greater, 2.9 mm (0.11 in.) maximum diam including insulation, single wire connection only, 5069-RTB4-SCREW, 5069-RTB6-SCREW: 0.5
Wiring category	3 - on USB ports, 2 - on power ports, 2 - on Ethernet ports
With optical interface	false
With potential separation	false
