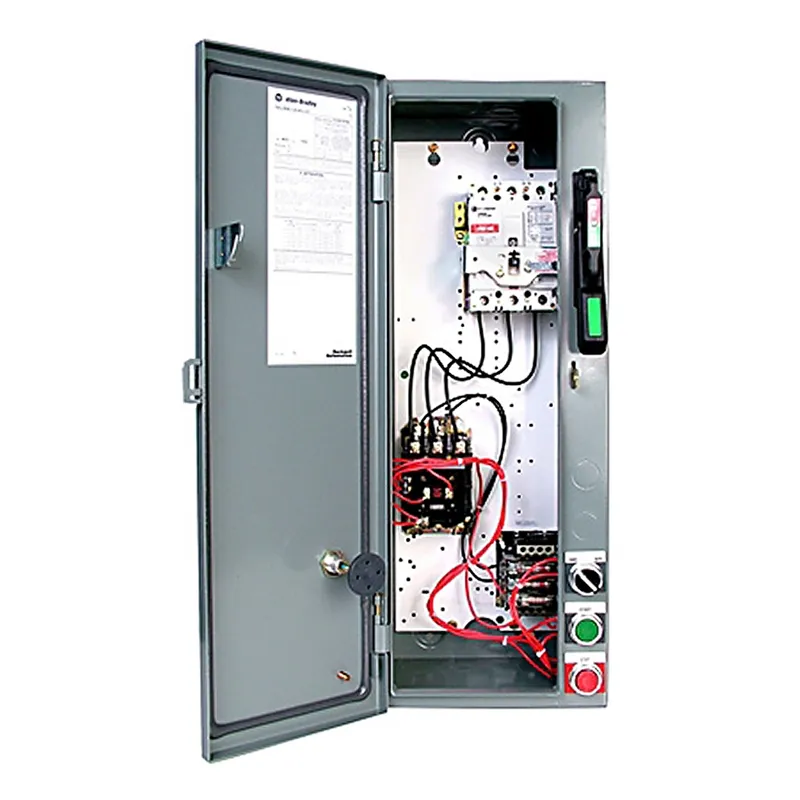

Allen-Bradley – 503-CJB-3-4LG-6GPC-42T NEMA Size 2 Combination Cntcr Ckt-bkr

MPN: 503-CJB-3-4LG-6GPC-42T · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 503-CJB-3-4LG-6GPC-42T (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	NEMA Combination Contactors
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 503-CJB-3-4LG-6GPC-42T now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 503-CJB-3-4LG-6GPC-42T, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 503-CJB-3-4LG-6GPC-42T be shipped?

503-CJB-3-4LG-6GPC-42T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 503-CJB-3-4LG-6GPC-42T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 503-CJB-3-4LG-6GPC-42T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 503-CJB-3-4LG-6GPC-42T, subject to availability and destination.

Allen-Bradley 503-CJB-3-4LG-6GPC-42T — NEMA Size 2 Combination Cntcr Ckt-bkr. Discontinued by Rockwell Automation on October 16, 2018. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	October 16, 2018
Replacement category (Rockwell)	Functional Replacement
Repair options available	No

Specifications

Circuit-Breaker Type	Inverse Hrs - Swbd Interruptin
Control Voltage	120V 60 Hz
Sub Brand	NEMA
Altitude	10000 ft before derating
Auxiliary contact material	Silver
Available short circuit amperes RMS symmetrical	65000 A
Average operating time, drop-out	13 ms
Average operating time, pick-up	27 ms
Capacitor switching kVAR	25 kVAR @ 460V load voltage, 3-phase
Circuit breaker type	Inverse time, standard interrupting capacity
Circuit closing inrush current peak including offset, max	483 A
Coil operating limits	85...110%
Continuous current	45 A
Coordination class according to IEC 60947-4-3	Class 2
Corrosion-resistance	All metal parts are treated for corrosion-resistance
Degree of protection (NEMA)	12
Depth	8.25 mm
Enclosure type	NEMA 3R/4/12 metal
External reset possible	true
Factory installed models	Transformer with grounding includes 2 primary fuses & 1 sary fuse with fuse cover
Heat dissipation	5.9 W
Height	27.5 mm
Hp rating	15 Hp
Load voltage	460V
Mechanical life operations	1.0E7
NEMA size	Size 2
Number of auxiliary contacts, max	8
Number of indicator lights	1
Operating position	Vertical
Operating volt amperes burden	Sealed: 29VA, 60 Hz coils
Power contact material	Silver Alloy
Rated control supply voltage at AC 50 Hz	110 V
Rated control supply voltage at AC 60 Hz	120 V
Required torque on power terminal wire clamps and pressure connectors or lugs	45 in-lb
Suitable for emergency stop	true
Transformer primary switching kVA rating	7.2 kVA @ 460V load voltage, 3-phase (inrush current = 20...40 times continuous current)
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Type of electrical connection of main circuit	Screw connection
Type of power terminal	Pressure terminals
Voltage type for actuating	AC
Weight	40 lb
Width	10.5 mm
Wire size for power terminals	14 AWG
With fuse	false
With short-circuit release	true
With transformer	true
