Allen-Bradley 2711P-RSACDIN

PanelView Plus AC to DC 3A Power Supply

MPN
2711P-RSACDIN
Price and lead time confirmed within 1 business day

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 2711P-RSACDIN (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 2711P-RSACDIN?

Allen-Bradley 2711P-RSACDIN — PanelView Plus AC to DC 3A Power Supply. Discontinued by Rockwell Automation on December 30, 2024. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued
Discontinued dateDecember 30, 2024
Replacement category (Rockwell)No planned RA replacement
Repair options availableNo

Specifications

ClassPower supply units
Output Amperage3 A
Power SupplyDIN-rail Mt AC-to-DC Power
Conducted RF immunity10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
Depth69 mm
DescriptionDIN rail power supply, AC-to-DC, 85...265V AC @ 47...63Hz
Direct mounting possiblefalse
EFT/B immunity±2kV @ 5kHz on power ports
EmissionsCISPR 11, Group 1, class A (with appropriate enclosure)
Enclosure type ratingNone (open-style)
ESD immunity4 kV contact discharges, 8 kV air discharges
Height87 mm
Inrush current40 A typical, 1 AC cycle @ Vin 265V AC @ 55°C
InterruptionOutput voltage will stay within specification when input drops out for 0.5 cycle @ 47 Hz, 85V AC with maximum load
Isolation voltage2830V DC @ 1s
Leakage current0.5 mA rms maximum @ rated input and output
Minimum load50 mA
Nominal supply voltage120V AC @ 47...63Hz, 1.7 A maximum, 230V AC @ 47...63Hz, 1.1 A maximum
Nominal value output voltage 124 V
Operating temperature0 °C
Output current3 A maximum horizontal mount
Output voltage range20.4...27.6V DC (includes noise and 5% AC ripple)
Overcurrent protectionCurrent limit 3.2 A minimum (107% minimum)
Overvoltage protectionOutput internally limited to 35V DC cycle power to re-energize
Power conductorWire size: 12 gauge (4 mm²) maximum solid or stranded copper wire rated at 75 °C or greater, 1.2 mm (3/64 in.) insulation maximum Category: 1
Radiated RF immunity10V/m with 1 kHz sine-wave 80% AM from 30...1000 MHz
Rail mounting possibletrue
Rated supply voltage at AC 50 Hz85 V
Rated supply voltage at AC 60 Hz85 V
Relative humidity5...95% noncondensing
ShockOperating: 30 G
Stabilizedtrue
Storage temperature-40 °C
Suitable for safety functionstrue
Surge transient immunity±1 kV line-line (DM) and ±2 kV line-earth (CM) on ac power ports
Terminal screw torque0.5 nm
Vibration5 G @ 10...500 Hz
Voltage type of supply voltageAC
Wall mounting possibletrue
Width68 mm

2711P-RSACDIN: frequently asked questions

Can I still buy the 2711P-RSACDIN now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 2711P-RSACDIN, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 2711P-RSACDIN be shipped?

2711P-RSACDIN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2711P-RSACDIN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2711P-RSACDIN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2711P-RSACDIN, subject to availability and destination.

More Rockwell Automation / Allen-Bradley parts

Allen-Bradley 2711P-RP9DK – PanelView Plus 6 700-1500 Logic Module
Allen-Bradley
2711P-RP9DK

PanelView Plus 6 700-1500 Logic Module

Allen-Bradley 2711P-RR128 – PV Plus Logic Module 256 MB Ram Module
Allen-Bradley
2711P-RR128

PV Plus Logic Module 256 MB Ram Module

Allen-Bradley 2711P-RR256 – PV Plus Logic Module 128 MB Ram Module
Allen-Bradley
2711P-RR256

PV Plus Logic Module 128 MB Ram Module

Allen-Bradley 2711P-RR64 – PV Plus Logic Module 64 MB Ram Module
Allen-Bradley
2711P-RR64

PV Plus Logic Module 64 MB Ram Module

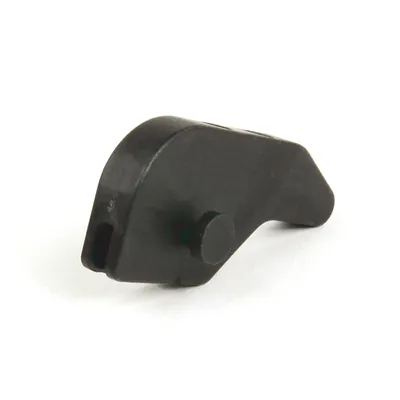

Allen-Bradley 2711P-RTBAC3 – PanelView Plus Accessory
