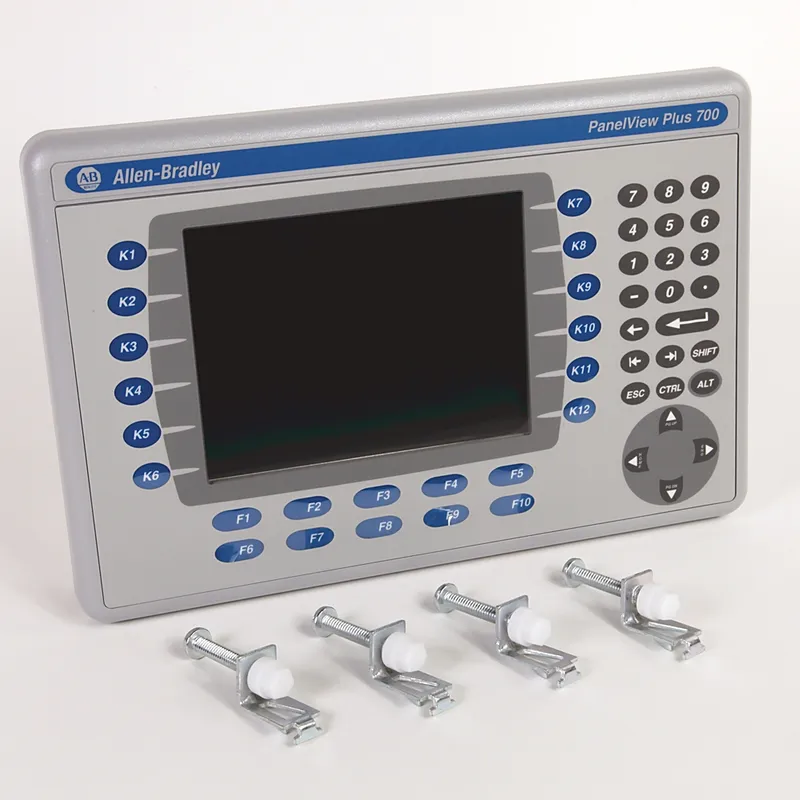

Allen-Bradley – 2711P-RDB7CM PVP6 700 Touch/ Keypad LED Display Modul

MPN: 2711P-RDB7CM · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 2711P-RDB7CM (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	2711P PanelView Plus 7 Graphic Terminals
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 2711P-RDB7CM now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 2711P-RDB7CM, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 2711P-RDB7CM be shipped?

2711P-RDB7CM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2711P-RDB7CM in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2711P-RDB7CM and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2711P-RDB7CM, subject to availability and destination.

Allen-Bradley 2711P-RDB7CM — PVP6 700 Touch/ Keypad LED Display Modul. Discontinued by Rockwell Automation on December 30, 2021. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	December 30, 2021
Replacement category (Rockwell)	No planned RA replacement
Repair options available	Yes

Specifications

Image Aspect Ratio	Standard Aspect Ratio
Operator Input	Touch Screen and Keypad
Speciality Display Modules	Marine Certified PanelView
Actuation rating, keypad	1 mon presses
Actuation rating, touch screen	1 mon presses
Altitude, operating	2000 m
Application flash memory	20 MB for logic modules, series A to D
Backlight	CCFL, 50000 hr life, minimum
Battery life	4 yr minimum at 25 °C (77 °F)
Clock	Battery-backed, +/-2 min per month
Cutout dimensions	167 x 264 mm
Degree of protection (IP)	IP65
Depth	55 mm
Description	700 keypad and touch color display, marine certified
Display area	132 x 99 mm
Display size	6.5 in
Display type	Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Enclosure rating	NEMA Type 12, 13, 4X (Indoor use only), IP54, IP65
External CompactFlash storage	512 MB maximum
Heat dissipation	240 BTU/hr
Height	193 mm
Input voltage	85...264V AC
Keypad function keys	Function keys, numeric and navigation
LED indicators	COMM (Green), fault (Red)
Line frequency	47 Hz
List of degrees of protection (IP)	IP54, IP65
Luminance	300 cd/m2 (Nits)
Nonoperating temperature	-25 °C
Number of pixels, horizontal	640
Number of pixels, vertical	480
Operating force, keypad	340
Operating force, touch screen	10 g
Operating temperature	0 °C
Operator input	Keypad, touch
PCI slot available power supply, max	11 W DC, 5 W AC
Power consumption	70 W max (2.9A @ 24V DC), 39 W typical (1.6A @ 24V DC)
Relative humidity	5...95% without condensation
Remote power consumption	120VA maximum
Remote power input voltage	85...264V AC
Shock	Operating: 15 G at 11 ms
Special option	Marine certified
Touch screen	Analog resistive
Vibration	10...57 Hz, 0.012 peak-to-peak displacement, 57...500 Hz, 2 G peak acceleration
Weight, approx	1.9 kg
Width	290 mm
