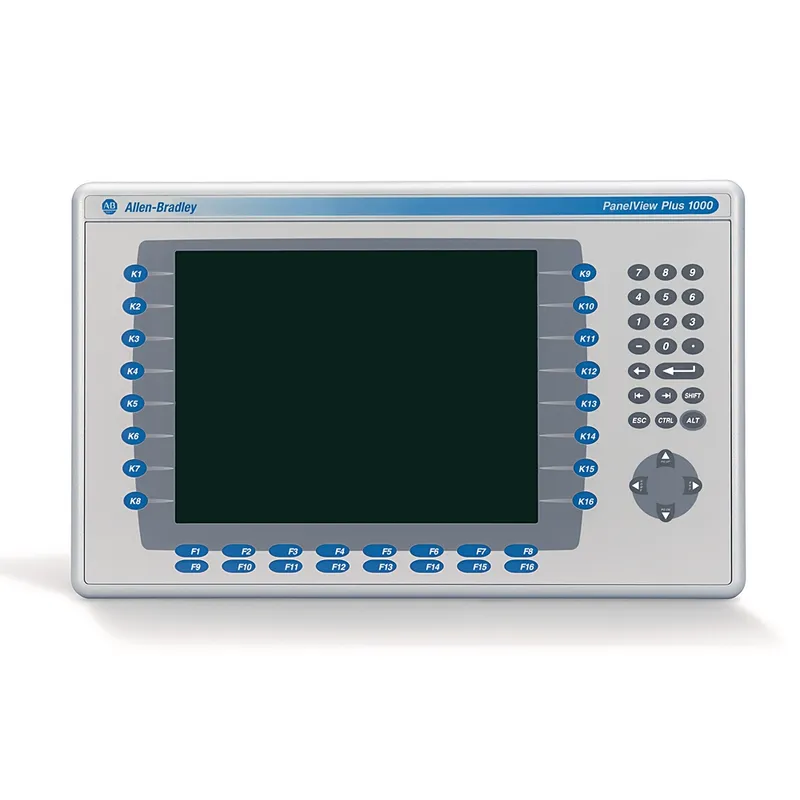

Allen-Bradley 2711P-RDB12C

PanelView Plus Display Module

MPN
2711P-RDB12C
Price and lead time confirmed within 1 business day

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 2711P-RDB12C (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 2711P-RDB12C?

Allen-Bradley 2711P-RDB12C — PanelView Plus Display Module. Discontinued by Rockwell Automation on September 30, 2022. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued
Discontinued dateSeptember 30, 2022
Replacement category (Rockwell)Engineering Replacement
Repair options availableYes

Specifications

Image Aspect RatioStandard Aspect Ratio
Input TypeKeypad/Touch
Monitor Size12.1-in TFT Display
Operator InputTouch Screen and Keypad
OptionsNo
Type of DisplayTFT Color
Actuation rating, touch screen1 mon presses
Altitude, operating2000 m
Application flash memory20 MB for logic modules, series A to D
BacklightCCFL, 50000 hr life, minimum
Battery life4 yr minimum at 25 °C (77 °F)
ClockBattery-backed, +/-2 min per month
Cutout dimensions257 x 338 mm
Degree of protection (IP)IP65
Depth55 mm
Description1250 keypad and touch color display
Display area246 x 184 mm
Display size12.1 in
Display typeColor active matrix, thin-film transistor (TFT) with liquid crystal display (LCD)
Enclosure ratingNEMA Type 12, 13, 4X (Indoor use only), IP54, IP65
External CompactFlash storage512 MB maximum
Heat dissipation240 BTU/hr
Height282 mm
Input voltage85...264V AC
Keypad function keysFunction keys, numeric and navigation
LED indicatorsCOMM (Green), fault (Red)
Line frequency47 Hz
List of degrees of protection (IP)IP54, IP65
Luminance300 cd/m2 (Nits)
Nonoperating temperature-25 °C
Number of pixels, horizontal800
Number of pixels, vertical600
Operating force, touch screen10 g
Operating temperature0 °C
Operator inputKeypad, touch
PCI slot available power supply, max11 W DC, 5 W AC
Power consumption70 W max (2.9A @ 24V DC), 39 W typical (1.6A @ 24V DC)
Relative humidity5...95% without condensation
Remote power consumption120VA maximum
Remote power input voltage85...264V AC
ShockOperating: 15 G at 11 ms
Touch screenAnalog resistive
Vibration10...57 Hz, 0.012 peak-to-peak displacement, 57...500 Hz, 2 G peak acceleration
Weight, approx3.4 kg
Width416 mm

2711P-RDB12C: frequently asked questions

Can I still buy the 2711P-RDB12C now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 2711P-RDB12C, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 2711P-RDB12C be shipped?

2711P-RDB12C is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 2711P-RDB12C in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 2711P-RDB12C and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 2711P-RDB12C, subject to availability and destination.

More Rockwell Automation / Allen-Bradley parts

Allen-Bradley 2711P-RC4 – PanelView Plus 512MB Ext Memory Card
Allen-Bradley
2711P-RC4

PanelView Plus 512MB Ext Memory Card

Allen-Bradley 2711P-RCH – PanelView Plus Accessory
Allen-Bradley
2711P-RCH

PanelView Plus Accessory

Allen-Bradley 2711P-RDB10C – PanelView Plus Display Module
Allen-Bradley
2711P-RDB10C

PanelView Plus Display Module

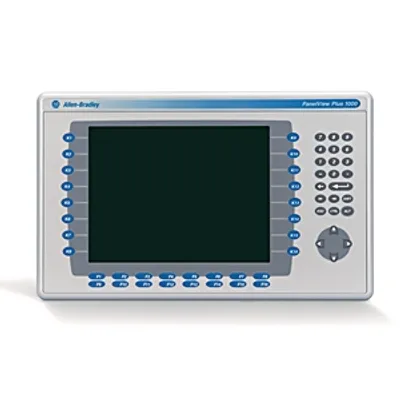

Allen-Bradley 2711P-RDB10CM – PanelView Plus Display Module
