Allen-Bradley – 1783-SR Stratix 5900 Security Appliance
Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1783-SR (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Stratix 2100 Unmanaged Industrial Ethernet Switch |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the 1783-SR now that it is discontinued?
Yes. Rockwell Automation / Allen-Bradley has discontinued the 1783-SR, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can 1783-SR be shipped?
1783-SR is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1783-SR in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1783-SR and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1783-SR, subject to availability and destination.
Allen-Bradley 1783-SR — Stratix 5900 Security Appliance. Discontinued by Rockwell Automation on September 03, 2019. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Discontinued |
| Discontinued date | September 03, 2019 |
| Replacement category (Rockwell) | Functional Replacement |
| Repair options available | No |
Specifications
| Analogue | false |
| Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms) | 10 V |
| Degree of protection (IP) | IP41 |
| EFT/B immunity for IEC 61000-4-4 at 5 kHz on Ethernet ports | ±500 |
| Emissions, CISPR22 (IEC 61000-6-4) | Class B |
| Empty chassis | true |
| ESD immunity, IEC 61000-4-2, air discharges | 15 kV |
| ESD immunity, IEC 61000-4-2, contact discharges | 8 kV |
| Ethernet | true |
| Firewall | true |
| Includes | AC power supply with cable, power cord retention lock, power switch lock, serial to Ethernet (RJ-45-to-DB-9) console cable, DIN rail mount |
| Input voltage, 4 A Class 2 | 5 V |
| Input voltage, router AC power adapter | 85 V |
| ISDN | true |
| LTE | false |
| Number of Gigabit Ethernet WAN RJ45 ports | 1 |
| Number of ports 10/100 Mbps LAN | 4 |
| Number of ports WAN | 1 |
| Number of RS-232 RJ45 console/AUX ports | 1 |
| Output power, maximum | 20 W |
| Power consumption, maximum | 11 W |
| Power consumption, router AC power adapter, maximum | 25 W |
| Power dissipation | 11 W |
| Protocol | IPv4 and IPv6 |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 - 2700 MHz | 10 kg/km |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 2000 MHz | 10 kg/km |
| Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing | 5 % |
| Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 15 g |
| Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 15 g |
| Surge transient immunity, IEC 61000-4-5, line-earth (CM) on shielded Ethernet port | ±1 |
| Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock) | -40 °C |
| Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold) | -40 °C |
| Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat) | -40 °C |
| Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock) | -25 °C |
| Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold) | -25 °C |
| Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat) | -25 °C |
| Temperature, surrounding air, maximum | 60 °C |
| UMTS | false |
| USB | false |
| Vibration, IEC 60068-2-64 (test Fh, operating), random | 1.12 g |
| VPN | true |
| Weight | 1.5 kg |
| Wiring category on Ethernet ports | 2 |
| Wiring category on power ports | 3 |
| xDSL | false |
More Rockwell Automation / Allen-Bradley parts
Available on request1783-SFP1GSX2-ND Stratix SFP With No Diagnostics

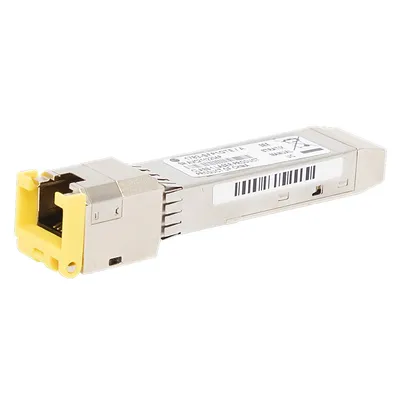

Available on request1783-SFP1GTE 1G copper SFP
