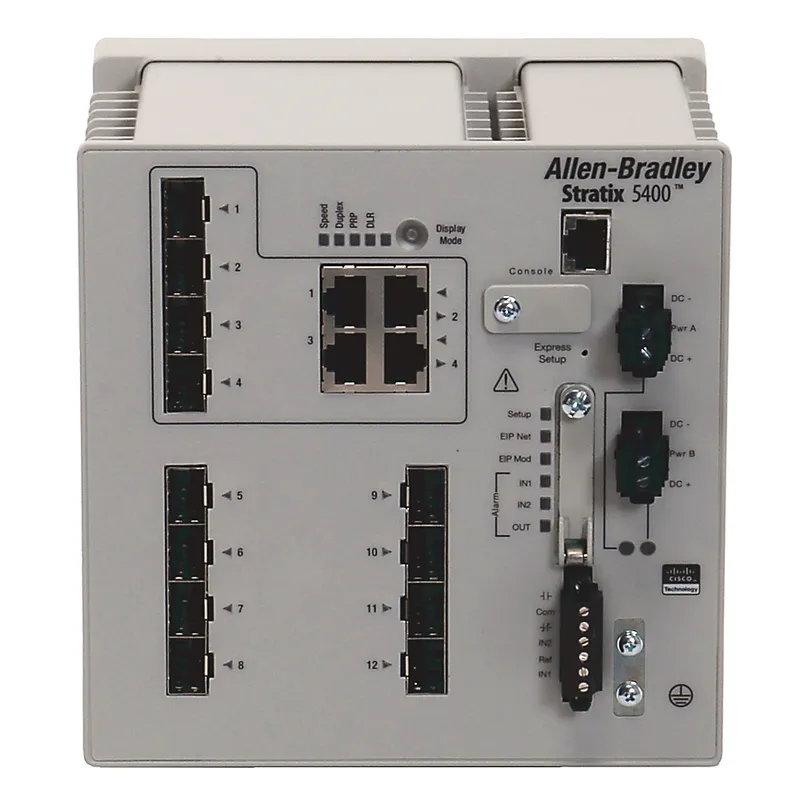

Allen-Bradley – 1783-HMS8SG4CGN Stratix 5400 12 Port Managed Switch

MPN: 1783-HMS8SG4CGN · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1783-HMS8SG4CGN (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Stratix 2100 Unmanaged Industrial Ethernet Switch
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 1783-HMS8SG4CGN now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 1783-HMS8SG4CGN, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1783-HMS8SG4CGN be shipped?

1783-HMS8SG4CGN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1783-HMS8SG4CGN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1783-HMS8SG4CGN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1783-HMS8SG4CGN, subject to availability and destination.

Allen-Bradley 1783-HMS8SG4CGN — Stratix 5400 12 Port Managed Switch. Discontinued by Rockwell Automation on January 30, 2025. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	January 30, 2025
Replacement category (Rockwell)	Engineering Replacement
Repair options available	Yes

Specifications

Combo ports	4 GE
Fiber ports	0
NAT	true
Port	12
Alarm relay at 30V DC	1 A
Alarm relay at 48V DC	0.5 A
Approximate weight	2.88 kg
CIP sync (IEEE 1588)	true
Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms)	10 V
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on Ethernet ports	±2.5
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on power and alarm ports	±2.5
Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on power and alarm ports	±1
Delta connected motor power, max	T3
Depth	14.67 cm
DLR	true
EFT/B immunity for IEC 61000-4-4 at 5 - 100 kHz on alarm ports	±3
EFT/B immunity for IEC 61000-4-4 at 5 - 100 kHz on DC power ports	±3
EFT/B immunity for IEC 61000-4-4 at 5 - 100 kHz on Ethernet ports	±3
Emissions	IEC 61000-6-4
ESD immunity, IEC 61000-4-2, air discharges	8 kV
ESD immunity, IEC 61000-4-2, contact discharges	6 kV
Ethernet	true
Height	16.45 cm
Housing base material	Open-style
Isolation voltage (continuous), basic insulation type, all ports to ground	60 V
Layer 2	true
Layer 3	false
Magnetic field immunity, IEC 61000-4-8, long duration at 50 - 60 Hz (A/m)	300
Magnetic field immunity, IEC 61000-4-8, short duration at 50 - 60 Hz (A/m)	1000
Magnetic pulse immunity, IEC 61000-4-9 (A/m)	300
Manageable	true
Mounting method	DIN rail (top hat rail)
NAT	true
Nominal position	T3
Number of combination ports 10/100/1000 Mbps	4
Number of combination-ports RJ45/Mini GBIC	4
Number of ports 10/100/1000 Mbps SFP	8
Power consumption at 24V DC, 40 ˚C	42 W
Power dissipation	42 W
Power input at 12 - 54V DC, maximum	5 A
Protection type	Alarm not rated
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 - 2700 MHz	20 kg/km
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 2000 MHz	20 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz	10 kg/km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing	5 %
Screw torque, alarm terminal	0.23 nm
Screw torque, ground terminal	0.51 nm
Screw torque, power terminal	0.56 nm
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock)	15 g
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on alarm ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on DC power ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on Ethernet ports	±2
Surge transient immunity, IEC 61000-4-5, line-line (DM) on alarm ports	±1
Surge transient immunity, IEC 61000-4-5, line-line (DM) on DC power ports	±1
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock)	-40 °C
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold)	-40 °C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat)	-40 °C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock)	-40 °C
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold)	-40 °C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat)	-40 °C
Temperature, surrounding air, maximum	70 °C
Total number of ports	12
Vibration, IEC 60068-2-6 (test Fc, operating) at 5 - 150 Hz	1 g
Voltage variation, IEC 61000-4-29, interruption on DC power ports	10 ms
Width	15.54 cm
Wire size, alarm connection, solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire	0.5 mm²
Wire size, DC power connection, solid or stranded copper wire rated at 30 ˚C, or greater, above the surrounding air temperature	0.52 mm²
Wire size, ground connection, solid or stranded copper wire	4 mm²
Wire strip length, alarm connection	6.3±0.5
Wire strip length, DC power connection	6.3±0.5
Wiring category on console ports	3
Wiring category on DC power and alarm ports	2
Wiring category on Ethernet ports	2
