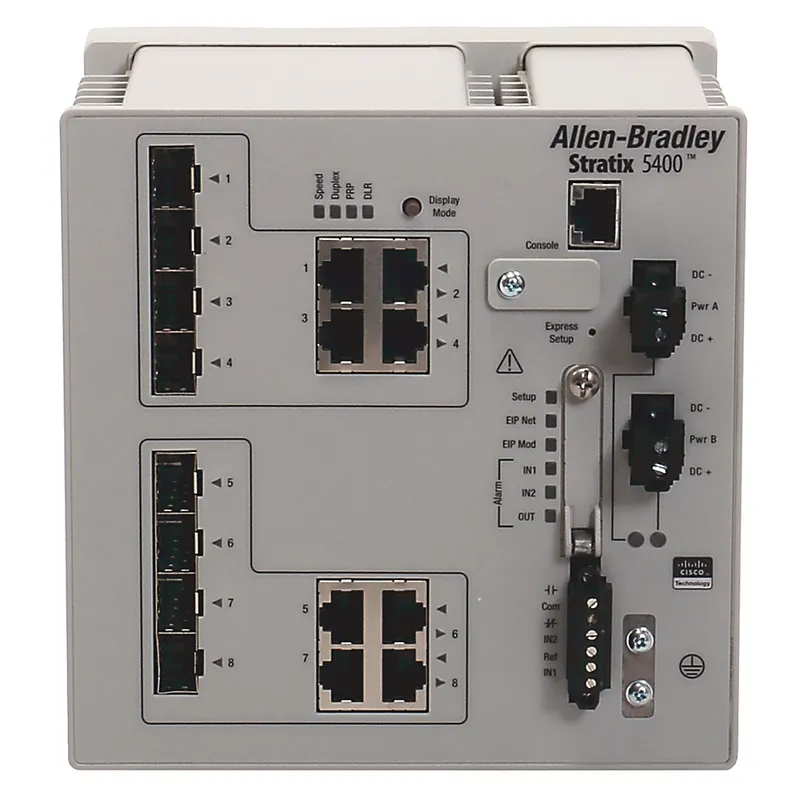

Allen-Bradley – 1783-HMS4C4CGN Stratix 5400 8 Port Managed Switch

MPN: 1783-HMS4C4CGN · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1783-HMS4C4CGN (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Stratix 2100 Unmanaged Industrial Ethernet Switch
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 1783-HMS4C4CGN now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 1783-HMS4C4CGN, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1783-HMS4C4CGN be shipped?

1783-HMS4C4CGN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1783-HMS4C4CGN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1783-HMS4C4CGN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1783-HMS4C4CGN, subject to availability and destination.

Allen-Bradley 1783-HMS4C4CGN — Stratix 5400 8 Port Managed Switch. Discontinued by Rockwell Automation on January 30, 2025. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	January 30, 2025
Replacement category (Rockwell)	Engineering Replacement
Repair options available	Yes

Specifications

CIP Sync	true
Combo ports	4 GE + 4 FE
Fiber ports	0
Network	Ethernet
Alarm relay at 30V DC	1 A
Alarm relay at 48V DC	0.5 A
Approximate weight	2.88 kg
CIP sync (IEEE 1588)	true
Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms)	10 V
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on Ethernet ports	±2.5
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on power and alarm ports	±2.5
Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on power and alarm ports	±1
Delta connected motor power, max	T3
Depth	14.67 cm
DLR	true
EFT/B immunity for IEC 61000-4-4 at 5 - 100 kHz on alarm ports	±3
EFT/B immunity for IEC 61000-4-4 at 5 - 100 kHz on DC power ports	±3
EFT/B immunity for IEC 61000-4-4 at 5 - 100 kHz on Ethernet ports	±3
Emissions	IEC 61000-6-4
ESD immunity, IEC 61000-4-2, air discharges	8 kV
ESD immunity, IEC 61000-4-2, contact discharges	6 kV
Ethernet	true
Height	16.45 cm
Housing base material	Open-style
Isolation voltage (continuous), basic insulation type, all ports to ground	60 V
Layer 2	true
Layer 3	false
Magnetic field immunity, IEC 61000-4-8, long duration at 50 - 60 Hz (A/m)	300
Magnetic field immunity, IEC 61000-4-8, short duration at 50 - 60 Hz (A/m)	1000
Magnetic pulse immunity, IEC 61000-4-9 (A/m)	300
Manageable	true
Mounting method	DIN rail (top hat rail)
NAT	true
Nominal position	T3
Number of combination ports 10/100/1000 Mbps	4
Number of combination ports 10/100 Mbps	4
Number of combination-ports RJ45/Mini GBIC	8
Power consumption at 24V DC, 40 ˚C	40 W
Power dissipation	40 W
Power input at 12 - 54V DC, maximum	4.3 A
Protection type	Alarm not rated
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 - 2700 MHz	20 kg/km
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 2000 MHz	20 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 1890 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz	10 kg/km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing	5 %
Screw torque, alarm terminal	0.23 nm
Screw torque, ground terminal	0.51 nm
Screw torque, power terminal	0.56 nm
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock)	15 g
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on alarm ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on DC power ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on Ethernet ports	±2
Surge transient immunity, IEC 61000-4-5, line-line (DM) on alarm ports	±1
Surge transient immunity, IEC 61000-4-5, line-line (DM) on DC power ports	±1
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock)	-40 °C
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold)	-40 °C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat)	-40 °C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock)	-40 °C
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold)	-40 °C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat)	-40 °C
Temperature, surrounding air, maximum	70 °C
Total number of ports	8
Vibration, IEC 60068-2-6 (test Fc, operating) at 5 - 150 Hz	1 g
Voltage variation, IEC 61000-4-29, interruption on DC power ports	10 ms
Width	15.54 cm
Wire size, alarm connection, solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire	0.5 mm²
Wire size, DC power connection, solid or stranded copper wire rated at 30 ˚C, or greater, above the surrounding air temperature	0.52 mm²
Wire size, ground connection, solid or stranded copper wire	4 mm²
Wire strip length, alarm connection	6.3±0.5
Wire strip length, DC power connection	6.3±0.5
Wiring category on console ports	3
Wiring category on DC power and alarm ports	2
Wiring category on Ethernet ports	2
