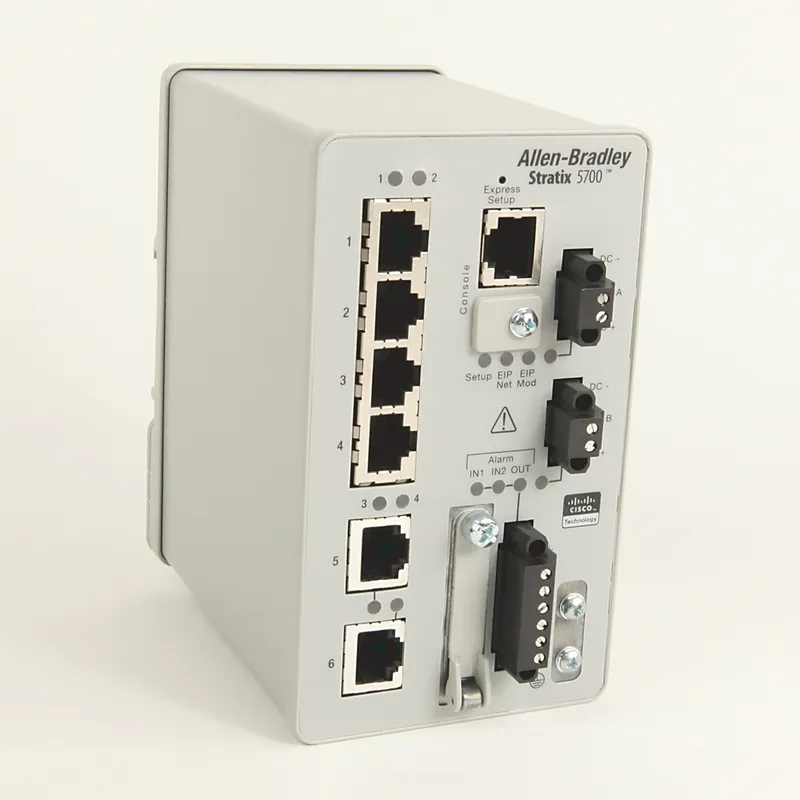

Allen-Bradley – 1783-BMS06TL Stratix 5700 6 Port Managed Switch

MPN: 1783-BMS06TL · Brand: Rockwell Automation / Allen-Bradley

Price on request

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1783-BMS06TL (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Stratix 2100 Unmanaged Industrial Ethernet Switch
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the 1783-BMS06TL now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 1783-BMS06TL, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1783-BMS06TL be shipped?

1783-BMS06TL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1783-BMS06TL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1783-BMS06TL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1783-BMS06TL, subject to availability and destination.

Allen-Bradley 1783-BMS06TL — Stratix 5700 6 Port Managed Switch. Discontinued by Rockwell Automation on September 01, 2024. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Discontinued
Discontinued date	September 01, 2024
Replacement category (Rockwell)	Engineering Replacement
Repair options available	Yes

Specifications

Network	Ethernet
Alarm relay at 30V DC	1 A
Alarm relay at 48V DC	0.5 A
Approximate weight	1.11 kg
Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz - 80 MHz (rms)	10 V
Damped oscillatory wave immunity, IEC 61000-4-18, line-earth (CM) on power ports	±2.5
Damped oscillatory wave immunity, IEC 61000-4-18, line-line (DM) on power ports	±1
Degree of protection (IP)	IP30
Depth	11.67 cm
EFT/B immunity for IEC 61000-4-4 at 100 kHz on alarm ports	±1
EFT/B immunity for IEC 61000-4-4 at 100 kHz on DC power ports	±2
EFT/B immunity for IEC 61000-4-4 at 100 kHz on Ethernet ports	±1
EFT/B immunity for IEC 61000-4-4 at 2.5 kHz on alarm ports	±4
EFT/B immunity for IEC 61000-4-4 at 2.5 kHz on Ethernet ports	±4
EFT/B immunity for IEC 61000-4-4 at 5 kHz on alarm ports	±2
EFT/B immunity for IEC 61000-4-4 at 5 kHz on DC power ports	±4
EFT/B immunity for IEC 61000-4-4 at 5 kHz on Ethernet ports	±2
Emissions, CISPR11 (IEC 61000-6-4)	Class A
ESD immunity, IEC 61000-4-2, air discharges	15 kV
ESD immunity, IEC 61000-4-2, contact discharges	8 kV
Ethernet	true
Firmware type	Lite
Height	12.95 cm
Housing base material	Open-style
Isolation voltage (continuous), basic insulation type, DC power ports to ground, DC power ports to ethernet ports, and DC power ports to alarm ports	50 V
Layer 2	false
Layer 3	false
Manageable	true
Maximum insulation, DC power connection	1.2 mm
Mounting method	DIN rail (top hat rail)
Nominal position	T4
Number of ports 10/100 Mbps RJ45	6
Power consumption at 24V DC, 40 ˚C	9.5 W
Power consumption, maximum	15 W
Power dissipation	15 W
Power input at 12 - 48V DC, class 2/SELV	0.5 A
Protection type	Alarm not rated
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 1000 - 2700 MHz	10 kg/km
Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 - 1000 MHz	20 kg/km
Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz	20 kg/km
Relative humidity, IEC 60068-2-30 (test Db, unpackaged damp heat), non-condensing	5 %
Screw torque, ground terminal, maximum	0.96 nm
Screw torque, power and alarm terminals	0.23 nm
Selectable start times	T4
Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock)	55 g
Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock)	30 g
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on DC power ports	±2
Surge transient immunity, IEC 61000-4-5, line-earth (CM) on Ethernet ports	±2
Surge transient immunity, IEC 61000-4-5, line-line (DM) on DC power ports	±1
Temperature, non-operating, IEC 60068-2-14 (test Na, unpackaged non-operating thermal shock)	-40 °C
Temperature, non-operating, IEC 60068-2-1 (test Ab, unpackaged non-operating cold)	-40 °C
Temperature, non-operating, IEC 60068-2-2 (test Bb, unpackaged non-operating dry heat)	-40 °C
Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock)	-40 °C
Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold)	-40 °C
Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat)	-40 °C
Temperature, surrounding air, maximum	60 °C
Total number of ports	6
Vibration, IEC 60068-2-6 (test Fc, operating) at 10 - 500 Hz	2 g
Voltage variation IEC 61000-4-29, interruption on DC power ports	10 ms
Width	7.48 cm
Wire size, alarm connection, solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire	0.5 mm²
Wire size, DC power connection, solid or stranded copper wire rated at 75 °C or greater	0.5 mm²
Wire size, ethernet connection	RJ45 connector according to IEC 60603-7, 2 or 4-pair category 5e minimum cable according to TIA 568-B.1 or category 5 cable according to ISO/IEC 24702
Wire size, ground connection, stranded copper wire, minimum	4 mm²
Wire strip length, alarm connection	6.3±0.5
Wire strip length, DC power connection	6.3±0.5
Wiring category on console and alarm ports	3
Wiring category on DC power ports	2
Wiring category on Ethernet ports	2
