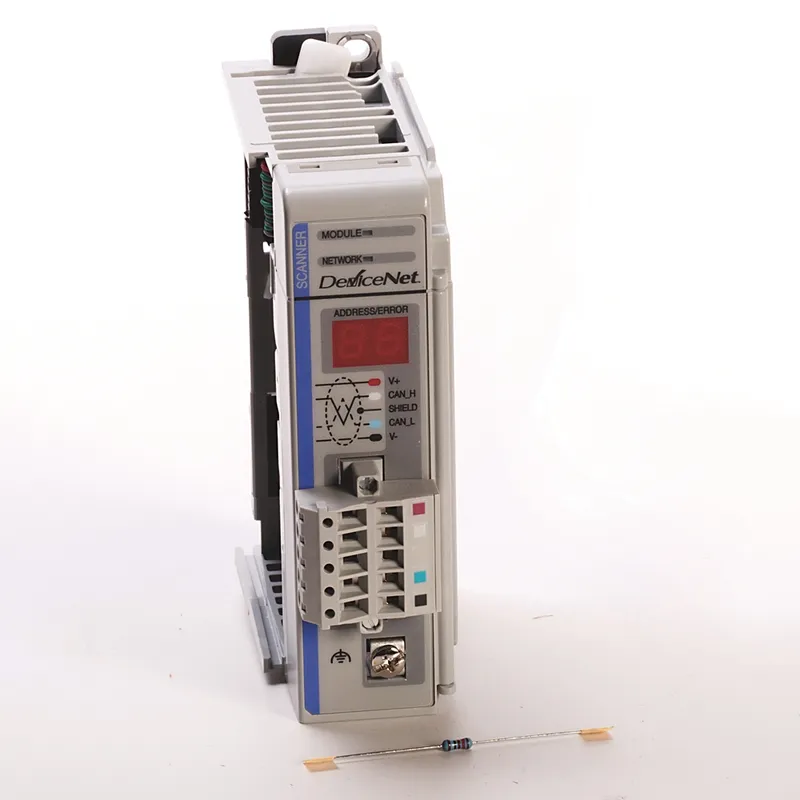

Allen-Bradley 1769-SDN

CompactLogix DeviceNet Scanner Module

MPN
1769-SDN
Price and lead time confirmed within 1 business day

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1769-SDN (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 1769-SDN?

Allen-Bradley 1769-SDN — CompactLogix DeviceNet Scanner Module. Discontinued by Rockwell Automation on December 31, 2025. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued
Discontinued dateDecember 31, 2025
Replacement category (Rockwell)Engineering Replacement
Repair options availableNo

Specifications

Depth87mm, 3.43"
Conducted RF immunity10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
Current draw440mA @ 5.2V DC
Depth87 mm
DeviceNet communication rate125 Kbps (500 m max), 250 Kbps (250 m max), 500 Kbps (100 m max)
DeviceNet connector torque0.56 nm
DeviceNet current draw110mA @ 24V DC Class 2/SELV
DeviceNet current range11...25V DC
EFT/B immunity±2kV @ 5kHz on communications ports
EmissionsCISPR 11 (IEC 61000-6-4): Group 1, Class A
Enclosure type ratingNone (open-style)
ESD immunity6 kV contact discharges, 8 kV air discharges
Height118 mm
IO link masterfalse
Isolation voltage30V (continuous), basic insulation type, DeviceNet to backplane, Type tested at 710V DC @ 60s
Module locationDIN rail or panel mount
Mounting screw torque1.16 Nm (10 in-lb) - use M4 or #8 screws
Nonoperating temperature-40 to 85 °C
Number of HW-interfaces industrial Ethernet1
Number of nodes, max64 nodes
Operating temperature0 to 60 °C
Ports1 DeviceNet open-style 5-pin linear plug
Power dissipation4.7 W
Power supply distance rating4 modules
Radiated RF immunity10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% Pulse 100% AM @ 900 MHz, 1 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
Radio standard Bluetoothfalse
Radio standard GPRSfalse
Radio standard GSMfalse
Radio standard UMTSfalse
Radio standard Wi-Fi 802.11false
Redundancyfalse
Relative humidity5...95% noncondensing
ShockOperating: 30 G
Slot width1
Suitable for safety functionsfalse
Supporting protocol for ASIfalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for CANfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for DeviceNettrue
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for KNXfalse
Supporting protocol for LONfalse
Supporting protocol for Modbusfalse
Supporting protocol for other bus systemsfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for SERCOSfalse
Supporting protocol for SUCONETfalse
Supporting protocol for TCP/IPfalse
Surge transient immunity±2 kV line-earth (CM) on communication ports
Surrounding air temperature, max60 °C
Type of data transmissionOther
Vibration2 G @ 10...500 Hz
Weight, approx0.28 kg
Width50 mm
Wire category2 - on communication ports
Wire size802.3 compliant shielded or unshielded twisted pair
With optical interfacefalse
With potential separationfalse

1769-SDN: frequently asked questions

Can I still buy the 1769-SDN now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 1769-SDN, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1769-SDN be shipped?

1769-SDN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1769-SDN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1769-SDN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1769-SDN, subject to availability and destination.
