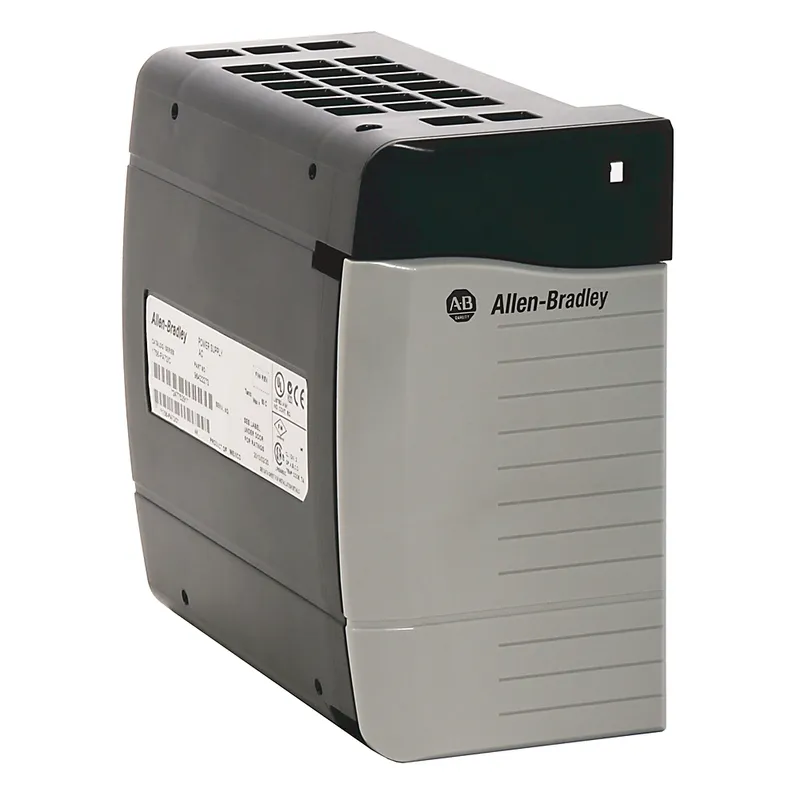

Allen-Bradley 1756-PB50K
ControlLogix DC Power Supply
- MPN
- 1756-PB50K
- Category
- ControlLogix I/O Modules
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →
What is the Allen-Bradley 1756-PB50K?
Allen-Bradley 1756-PB50K — ControlLogix DC Power Supply. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.
Specifications
Product
| Lifecycle | Active |
| Repair options available | Yes |
Specifications
| Conductor screw torque | 0.565 nm |
| Current capacity | 8A @ 50°C (122 °F) @ 5.1V DC @ 6A @ 60 °C (140 °F) @ 5.1V DC |
| Depth | 145 mm |
| Enclosure type rating | None (open-style) |
| Height | 140 mm |
| Hold-up time | 30 ms @ 18...32V DC, 60 W, 40 ms @ 18...32V DC, 50 W |
| Input power, max | 85 W @ 50 °C (122 °F), 70 W @ 60 °C (140 °F) |
| Input voltage at DC | 18 V |
| Input voltage, nom | 24V DC |
| Inrush current, max | 30 A |
| ISAGX | false |
| Operating temperature | 0 °C < Ta < +60 °C (+32 °F < Ta < +140 °F) |
| Output voltage at DC | 5.1 V |
| Power output | 60 W |
| Power output, max | 60 W @ 0...50 °C (32...122 °F), 50 W @ 0...60 °C (32...140 °F) |
| Redundancy capable | false |
| Relative humidity | 5...95% noncondensing |
| Rockwell tire and rubber rated | false |
| Shock | Operating: 30 G |
| Suitable for safety functions | false |
| Type of output voltage | DC |
| Type of voltage (input voltage) | DC |
| Vibration | 2 G @ 10...500 Hz |
| Voltage variation | IEC 61000-4-29: 10 ms interruption on DC supply ports, 60% dips for 100 ms on DC supply ports, 100% dips for 50 ms on DC supply ports, ±20% fluctuations for 15 min on DC supply ports, 5 s interruptions on DC supply ports |
| Weight | 0.77 kg |
| Width | 78 mm |
| Wire category | 1 - on power ports |
| Wire size | 2.5 mm² (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F), or greater, 1.2 mm (3/64 in.) insulation max |
| Environmental Compliance | <a href='https://www.rockwellautomation.com/en-us/company/product-environmental-compliance.html'>See Details</a> | <a href='#modal-submit-inquiry'>Submit Inquiry</a> |
| Environmental Compliance | <a href='https://www.rockwellautomation.com/en-us/company/product-environmental-compliance.html'>See Details</a> | <a href='#modal-submit-inquiry'>Submit Inquiry</a> |
| Device does not consume power | No |
| Pwr diss at full load 100% (W) | 25 |
| Pwr diss modes not applicable | No |
| Review of pwr diss data | NOT REVIEWED |
| Product Series | A |
