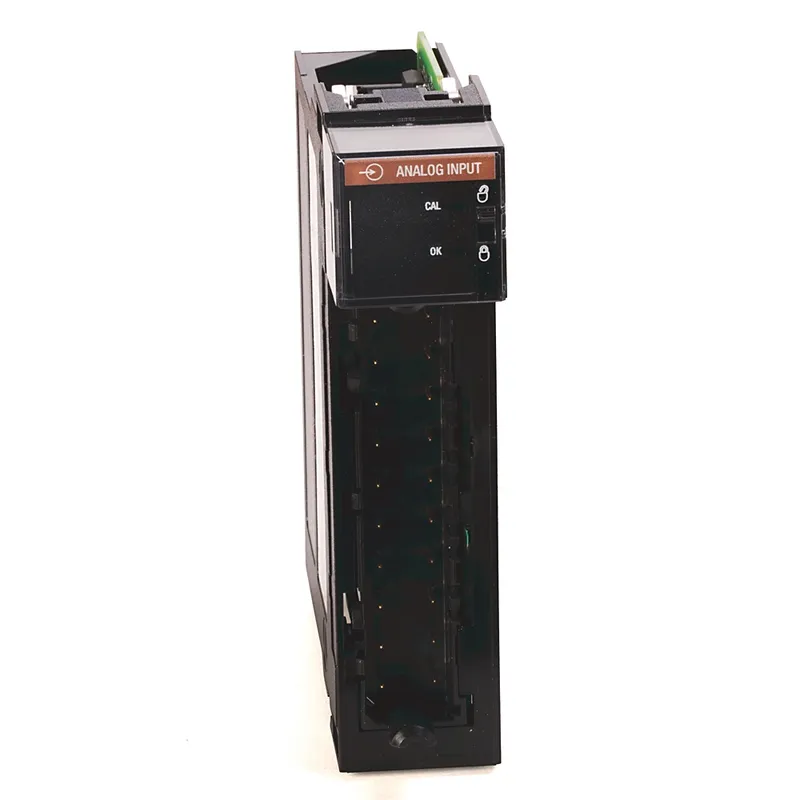

Allen-Bradley 1756-IF6I

ControlLogix 6 Point Isolated A/I Module

MPN
1756-IF6I
Price and lead time confirmed within 1 business day

Discontinued by Rockwell Automation / Allen-Bradley — we can still source the original 1756-IF6I (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 1756-IF6I?

Allen-Bradley 1756-IF6I — ControlLogix 6 Point Isolated A/I Module. Discontinued by Rockwell Automation on March 31, 2017. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleDiscontinued
Discontinued dateMarch 31, 2017
Replacement category (Rockwell)Functional Replacement
Repair options availableYes

Specifications

DisplayModule Health, In Calibration,Mode
Input Signal+/- 10V, 0-10.5V, 0-5.25V,0-21mA
Isolation250 V continuous between,inputs
Number Of Channels6
Special FeaturesPer Point Isolation
Analogue inputs configurabletrue
Analogue outputs configurablefalse
Calibrated accuracyBetter than 0.1% of range @ 25 °C (77 °F)
Channel bandwidth15 Hz
Common mode noise rejection120 dB @ 60 Hz, 100 dB @ 50 Hz
Conducted RF immunity10V rms with 1 kHz sine wave 80% AM from 150 kHz...80 MHz on shielded signal ports
Current draw250mA @ 5.1V, 100mA @ 24V
Data formatInteger mode (left justified, 2 s complement) IEEE 32-bit floating point
EFT/B immunity±2kV @ 5kHz on shielded signal ports
EmissionsIEC 61000-6-4
Enclosure type ratingNone (open-style)
ESD immunity6 kV contact discharges, 8 kV air discharges
Gain drift with temperatureVoltage: 35 ppm/°C, 80 ppm/°C maximum, Current: 45 ppm/°C, 90 ppm/°C maximum
Input, currenttrue
Input impedanceVoltage: >10 MΩ, Current: 249 Ω
Input range±10.5V @ 0...10.5V, 0...5.25V @ 0...21mA
Input, resistance thermometerfalse
Input, resistorfalse
Inputs6 individually isolated
Input signal, configurabletrue
Input, thermocouplefalse
Input, voltagetrue
Isolation voltage250V (continuous), basic insulation type, input channels-to-backplane, and input channel-to-channel Routine tested at 1350V AC @ 2s
Module conversion methodSigma-Delta
Module error0.54% of range
Module input scan time, min25 ms minimum - floating point, 10 ms minimum - integer
Module keyingElectronic, software configurable
Nonoperating temperature-40 °C
Normal mode noise rejection60 dB @ 60 Hz
North American temperature codeT4A
Offset drift2 µV/°C
Onboard data alarmingtrue
Open circuit detection timePositive full scale reading within 5 s
Operating temperature0 °C
Output, currentfalse
Output signal configurablefalse
Output, voltagefalse
Overvoltage protectionVoltage: 120V AC/DC maximum, Current: 8V AC/DC (with onboard current resistor), maximum
Power dissipationVoltage: 3.7 W, maximum, Current: 4.3 W, maximum
Radiated RF immunity10 V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10 V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 3 V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz
Real-time channel samplingtrue
Relative humidity5...95% noncondensing
Resolution16 bit, 10.5V: 343 µV/bit, 0...10.5V: 171 µV/bit, 0...5.25V: 86 µV/bit, 0...21 mA: 0.34 µA/bit
RTB keyingUser-defined mechanical
Scaling to engineering unitstrue
Settling time<80 ms to 5% of full scale
ShockOperating: 30 G, Nonoperating: 30 G
Slot width1
Suitable for safety functionsfalse
Surge transient immunity±2 kV line-earth (CM) on shielded signal ports
Surrounding air temperature, max60 °C
Thermal dissipationVoltage: 12.62 BTU/hr, Current: 14.32 BTU/hr
Total backplane power3.7 W
Type of electric connectionScrew-/spring clA connection
Vibration2 G @ 10...500 Hz
Wire categoryCategory: 2

1756-IF6I: frequently asked questions

Can I still buy the 1756-IF6I now that it is discontinued?

Yes. Rockwell Automation / Allen-Bradley has discontinued the 1756-IF6I, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 1756-IF6I be shipped?

1756-IF6I is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1756-IF6I in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1756-IF6I and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1756-IF6I, subject to availability and destination.
