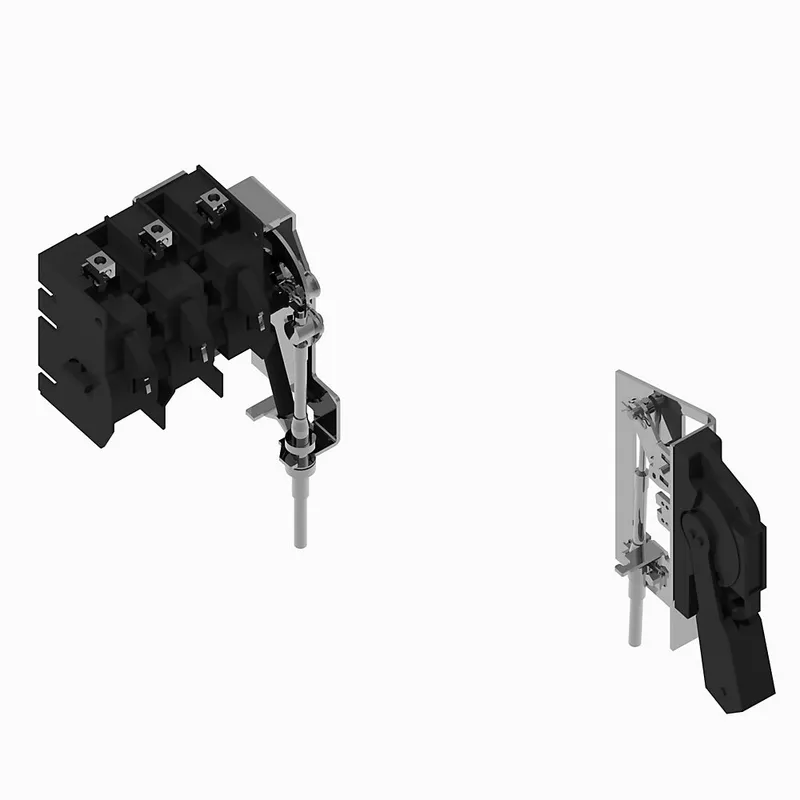

Allen-Bradley – 1494U-N30-C4-S 30A switch Disconnect Kits

MPN: 1494U-N30-C4-S · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	1494U Universal
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1494U-N30-C4-S be shipped?

1494U-N30-C4-S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1494U-N30-C4-S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1494U-N30-C4-S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1494U-N30-C4-S, subject to availability and destination.

Allen-Bradley 1494U-N30-C4-S — 30A switch Disconnect Kits. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Altitude	2000 m (6562 ft) per IEC 947-1
Ambient temperature	Storage: -40...65 °C (-40...149 °F)
Auxiliary contact electrical ratings	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA minimum per IEC
Conductor size	Single Port copper lug: 16 AWG @ copper conductor
Connection type	Switch body: glass-filled thermoplastic
Continuous current rating	30 A
Degree of protection	Operating handles: Stainless Steel Type 4, 4X
Depth	3.63 in
Device construction	Built-in device fixed built-in technique
Dielectric strength	2200V @ 1min
Efficiency	-20
Electrical interlock ratings	Standard contact 2 NO: 10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC
Factory option	Stainless steel handle
Flicker	10A @ 250V AC, 0.3A @ 250V DC per NEMA/EEMAC
Fuse block option	15 kW @ 500...600V AC, 3-phase, 50 Hz
Height	8.58 in
Hold-up time	-40
Hp rating, max	7.5Hp @ 230V AC, 3-phase, 60 Hz per UL and CSA
Individual harmonics (DC-127th)	15Hp @ 600V DC per UL and CSA
Interharmonics	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 17V @ 5mA min per IEC
Interlockable	true
KW rating, max	5.5 kW @ 220...240V AC, 3-phase, 50 Hz per IEC (AC23)
LED status	10000
Level-5 lens color	2000 m per IEC 947-1
Material	Switches, mechanisms and accessory kits: Zinc-plated Steel, RoHS compliant finish
Mechanical life operations	10000
Motor drive optional	false
NEMA rating designation	30A @ 250/600V DC
Number of poles	3
Number of switches	1
Operating distance	2200V @ 1min
Operating handle style	Knife switch style handle
Operational range	10000A @ 600V AC/DC : unfused or with class H fuses
Power losses	1.5
Rated input current	Lug to terminal : 20 in-lb
Rated output current	30 A switch, non-fusible
Rated permanent current Iu	30 A
Recommended torque	Switch side: 45 in-lb
Relative humidity	90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1
Short circuit withstand capability	10000A @ 600V AC/DC, unfused or with class H fuses
Special family function	6
Special product function	Knife switch style handle
Spot size	90% @ 20°C (68 °F) and 50% @ 40°C (104 °F) per IEC 947-1
Sub group	-20
Switch and fuse rating (fusing)	30 A switch, non-fusible
Switching frequency, max	6 ops/m
Temperature, max	Stainless steel handle
Transient detect	AC 15, DC 13 to IEC/EN60947-5-1 and UL 508, 5V @ 1mA min per IEC
Type of control element	Long turning handle
Type of electrical connection of main circuit	Screw connection
Version as main switch	true
Voltage release optional	false
Width	6.81 in
With pre-assembled cabling	false
