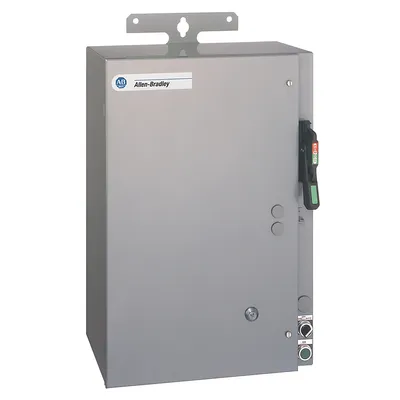

Allen-Bradley – 1233X-FNBD-54 NEMA Extra Space Pump Panel Ckt-Bkr

MPN: 1233X-FNBD-54 · Brand: Rockwell Automation / Allen-Bradley

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Programmable Controllers
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1233X-FNBD-54 be shipped?

1233X-FNBD-54 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1233X-FNBD-54 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1233X-FNBD-54 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1233X-FNBD-54, subject to availability and destination.

Allen-Bradley 1233X-FNBD-54 — NEMA Extra Space Pump Panel Ckt-Bkr. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

Lifecycle	Active
Repair options available	No

Specifications

Circuit-Breaker Type	Instantaneous Trip - Standard
Control Voltage	120V 60 Hz
Disconnect Type	No
Altitude	10000 ft before derating
Auxiliary contact material	Silver
Available short circuit amperes RMS symmetrical	65000 A
Circuit breaker type	800 A (ftder protection), instant trip
Circuit closing inrush current peak including offset, max	3163 A
Continuous current rating	270 A
Coordination class according to IEC 60947-4-3	Class 2
Corrosion-resistance	All metal parts are treated for corrosion-resistance
Degree of protection (NEMA)	3R
Depth	13.78 mm
Enclosure type	NEMA 3R rainproof
External reset possible	true
Height	56 mm
Horsepower	200 Hp (motor protection)
Load voltage	460V
Material housing	Steel
Mechanical life operations	5000000
NEMA size	Size 5
Number of auxiliary contacts, max	8
Operating position	Vertical
Operating time, drop-out	18 ms
Operating time, pick-up	25 ms
Overload relay	Eutectic alloy overload relay
Power contact material	Silver alloy
Rated control supply voltage at AC 50 Hz	120 V
Rated control supply voltage at AC 60 Hz	120 V
Suitable for emergency stop	true
Temperature compensated overload protection	true
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Type of electrical connection of main circuit	Screw connection
Type of motor starter	Direct online starter (DOL)
Type of power terminal	Pressure terminals
Voltage for starter with circuit breaker, max	480 V
Voltage type for actuating	AC
Weight	360 lb
Width	30.5 mm
With short-circuit release	true
With transformer	false
