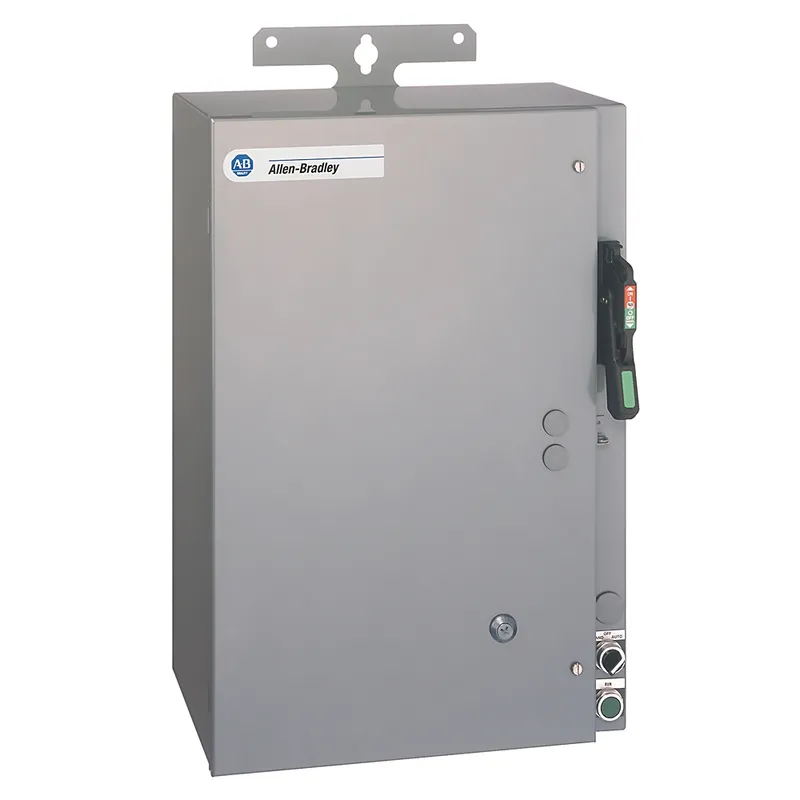

Allen-Bradley 1233X-BNB-A2F-40

NEMA Extra Space Pump Panel Ckt-bkr

MPN
1233X-BNB-A2F-40
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Rockwell Automation / Allen-Bradley parts? We buy surplus →

What is the Allen-Bradley 1233X-BNB-A2F-40?

Allen-Bradley 1233X-BNB-A2F-40 — NEMA Extra Space Pump Panel Ckt-bkr. PartnerPLC supplies new, surplus and discontinued Allen-Bradley parts — request a quote for price, condition and lead time.

Specifications

Product

LifecycleActive
Repair options availableNo

Specifications

Circuit-Breaker TypeInstantaneous Trip - Standard
Control Voltage480V 60 Hz
Disconnect TypeNo
Altitude10000 ft before derating
Auxiliary contact materialSilver
Available short circuit amperes RMS symmetrical65000 A
Circuit breaker type100 A (ftder protection), instant trip
Circuit closing inrush current peak including offset, max288 A
Continuous current rating27 A
Coordination class according to IEC 60947-4-3Class 2
Corrosion-resistanceAll metal parts are treated for corrosion-resistance
Degree of protection (NEMA)3R
Depth8.72 mm
Enclosure typeNEMA 3R rainproof
External reset possibletrue
Height30 mm
Horsepower7.5 Hp (motor protection)
Load voltage460V
Material housingSteel
Mechanical life operations1.0E7
NEMA sizeSize 1
Number of auxiliary contacts, max8
Operating positionVertical
Operating temperature-25 °C
Operating time, drop-out14 ms
Operating time, pick-up22 ms
Overload relayE1 plus, manual reset, Class 20, full load current adjustment range 3.2...16 A
Overload release current setting3.2 A
Power contact materialSilver alloy
Rated control supply voltage at AC 50 Hz480 V
Rated control supply voltage at AC 60 Hz480 V
Release classCLASS 20
Suitable for emergency stoptrue
Temperature compensated overload protectiontrue
Type of electrical connection for auxiliary- and control current circuitScrew connection
Type of electrical connection of main circuitScrew connection
Type of motor starterDirect online starter (DOL)
Type of power terminalSaddle or wire clA
Voltage for starter with circuit breaker, max480 V
Voltage type for actuatingAC
Weight90 lb
Width20.5 mm
Wire sizeFor power terminals: 14...8 AWG
With short-circuit releasetrue
With transformerfalse

1233X-BNB-A2F-40: frequently asked questions

When can 1233X-BNB-A2F-40 be shipped?

1233X-BNB-A2F-40 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1233X-BNB-A2F-40 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1233X-BNB-A2F-40 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1233X-BNB-A2F-40, subject to availability and destination.
