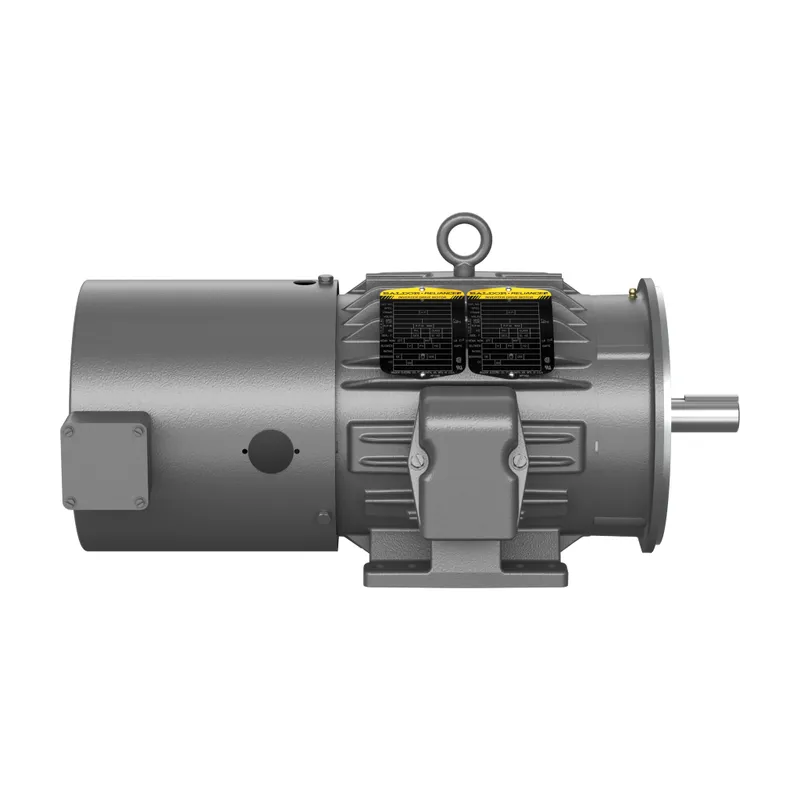

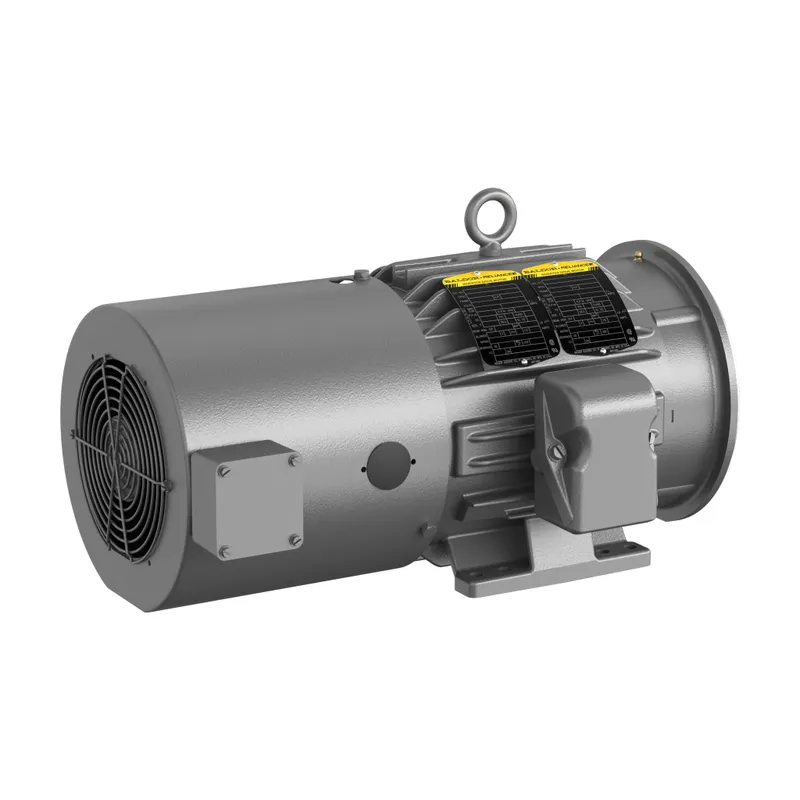

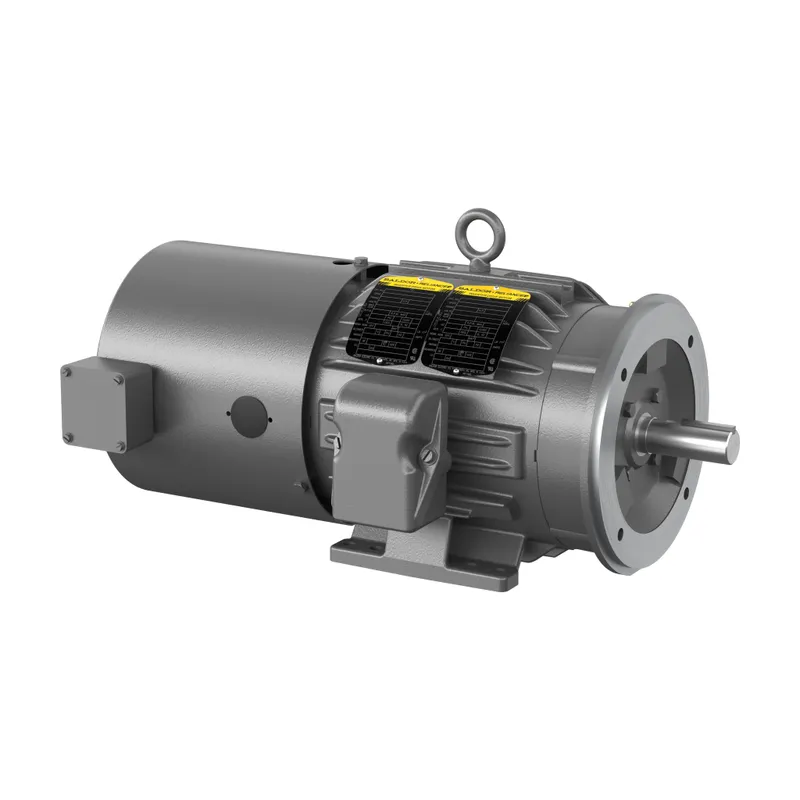

ABB ZDM3667T

1.5HP,1170RPM,3PH,60HZ,182TC,0630M

MPN: ZDM3667T
Category: V*S Master

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB ZDM3667T?

AC Inverter / Vector Duty 1.5 Hp 230 V (ZDM3667T)

Specifications

Ordering

Catalog Number	ZDM3667T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	65 %
Rated Efficiency	87.50 %
Service Factor	1.00
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	1.5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEBC
Frame Material	Cast Iron
Motor Frame Size	182TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	16 in
Product Net Weight	108 lb
Product Net Width	17 in
Dimension Diagram	06LYF552

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1319 >> Inverter motor AC
ETIM 7	EC001851 - Electric motor
