Home / ABB / RPM AC Vector Duty / ABB ZDBRPM25504

ABB

ABB ZDBRPM25504

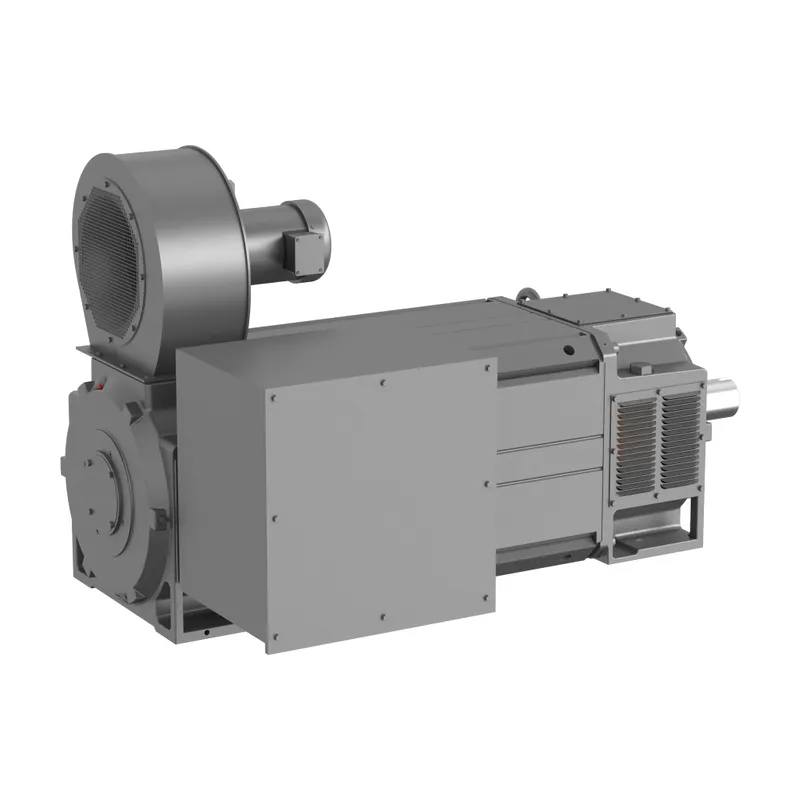

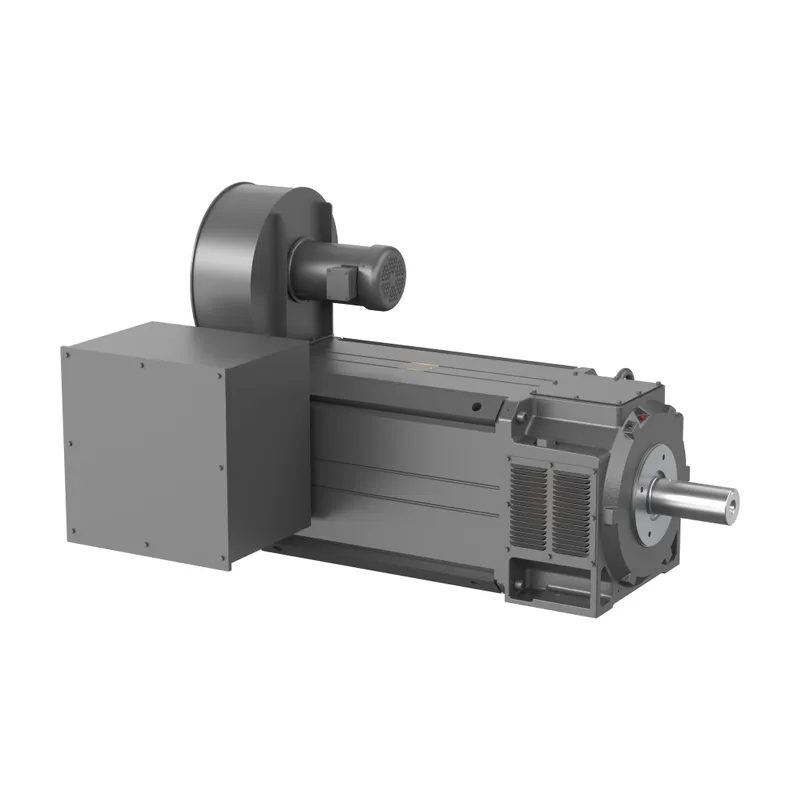

50HP,1750,460V,FL2570,TEBC,F3

MPN: ZDBRPM25504
Category: RPM AC Vector Duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB ZDBRPM25504?

AC VS Laminated Frame - RPMAC 50 Hp 460 V (ZDBRPM25504)

Specifications

Ordering

Catalog Number	ZDBRPM25504
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	H
Number of Phases	3-phase
Service Factor	1.00
Type of Duty	Continuous
Synchronous Speed (vsyn)	1800 r/min
Output Power	50 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEBC
Frame Material	Explosed Laminations
Motor Frame Size	FL2570Z
Motor Base Type	Foot Mounted
Mounting Position	F3
Brake Present	No

Dimensions

Product Net Height	23 in
Product Net Weight	532 lb
Product Net Width	30 in
Dimension Diagram	617573-382

Certificates and Declarations

Certification Agency	CCSA US
IDEA Granular Category Code (IGCC)	1328 >> Multi phase motor AC
ETIM 7	EC001851 - Electric motor
