ABB

ABB XT3306T

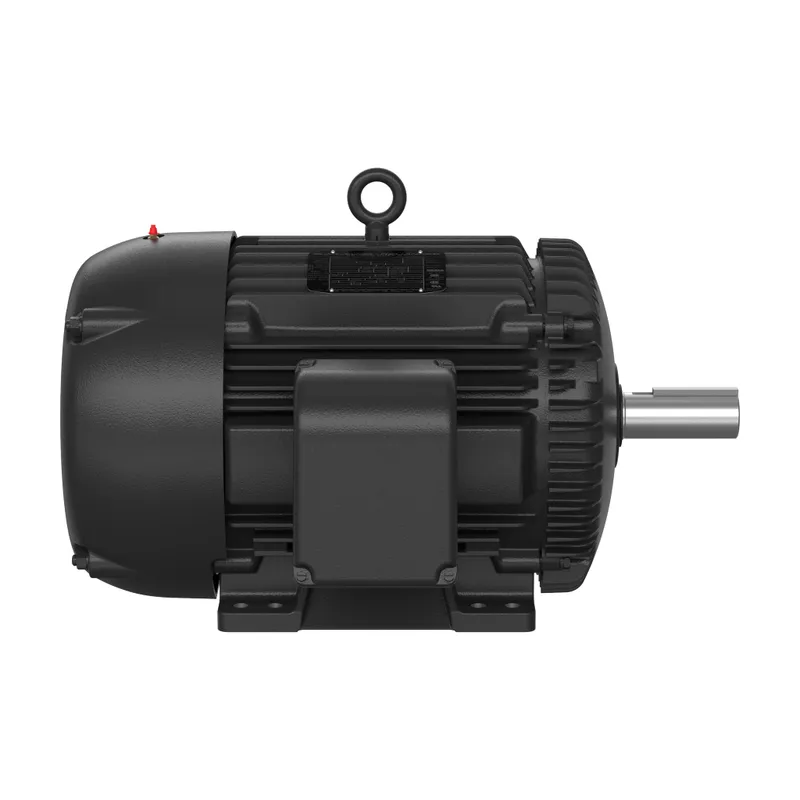

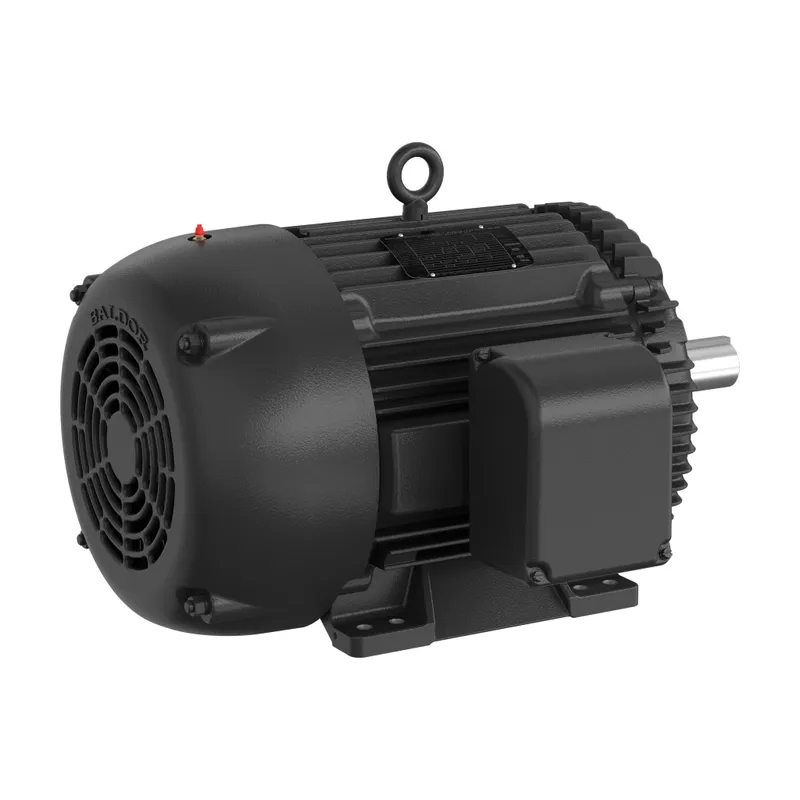

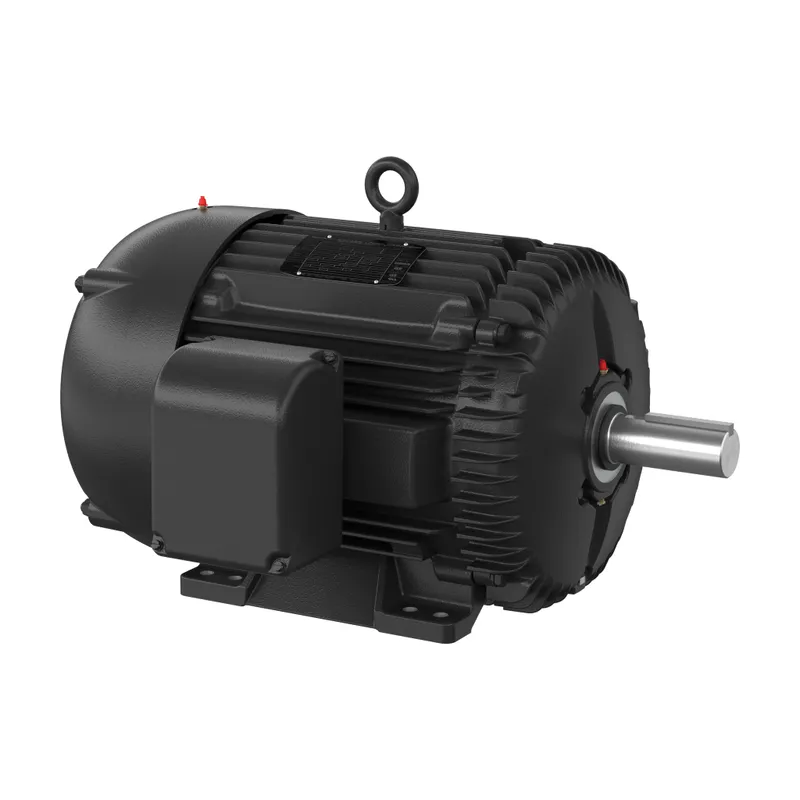

30HP,1180RPM,3PH,60HZ,326T,1264M,TE

MPN: XT3306T
Category: Severe Duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB XT3306T?

Severe Duty Motor 30 Hp 230 V (XT3306T)

Specifications

Ordering

Catalog Number	XT3306T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	78 %
Rated Efficiency	93 %
Service Factor	1.15
Temperature Class	T3
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	30 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Iron
Motor Frame Size	326T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	21.625 in
Product Net Weight	630 lb
Product Net Width	25.688 in
Dimension Diagram	12LYH013

Certificates and Declarations

Certification Agency	CCSA US, CSA EEV, NEMA PREMIUM, UR
ETIM 7	EC001851 - Electric motor
