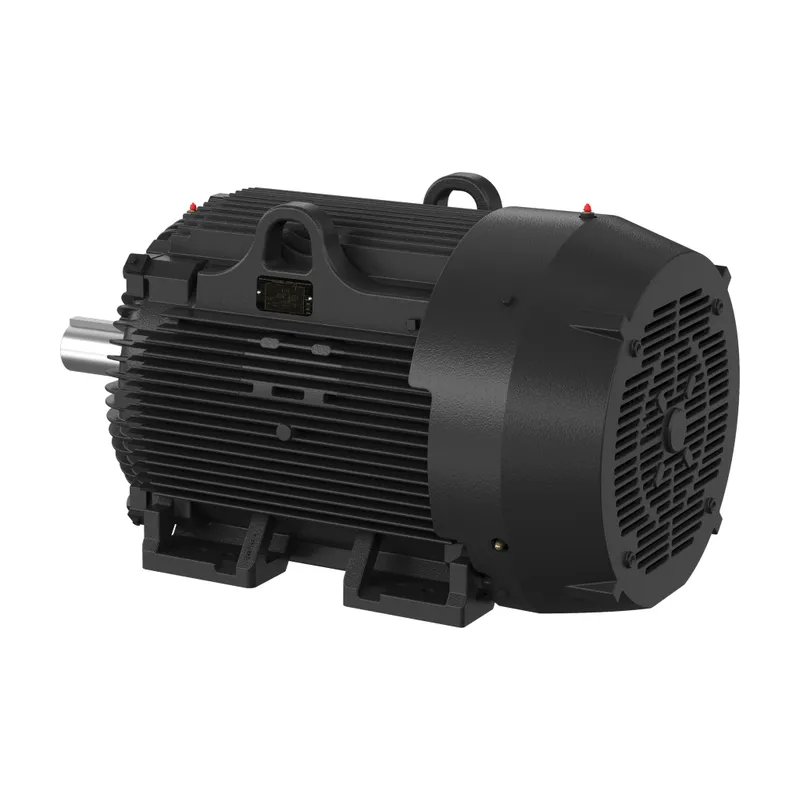

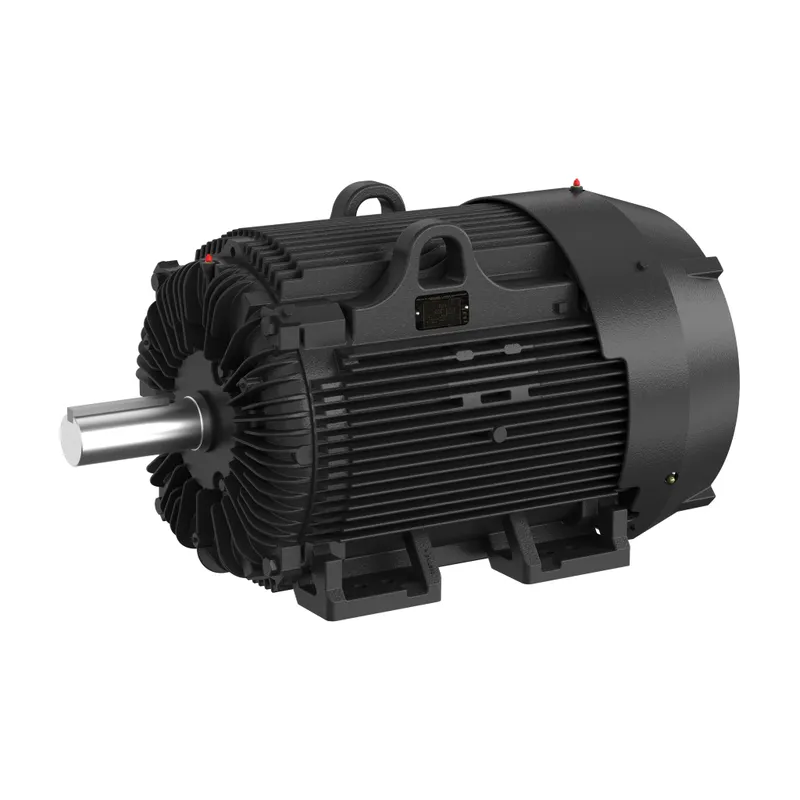

ABB XT31504T-5

150HP,1785RPM,3PH,60HZ,445T,TEFC,F1

MPN: XT31504T-5
Category: Severe Duty

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB XT31504T-5?

Severe Duty Motor 150 Hp 575 V (XT31504T-5)

Specifications

Ordering

Catalog Number	XT31504T-5
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015381
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	86 %
Rated Efficiency	95.80 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	150 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Cast Iron
Motor Frame Size	445T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	52.5 in
Product Net Weight	1826 lb
Product Net Width	42 in
Dimension Diagram	617427-476

Certificates and Declarations

Certification Agency	CCSAUSEEV, CURUSEEV, NEMA_PREMIUM
ETIM 7	EC001851 - Electric motor
