ABB

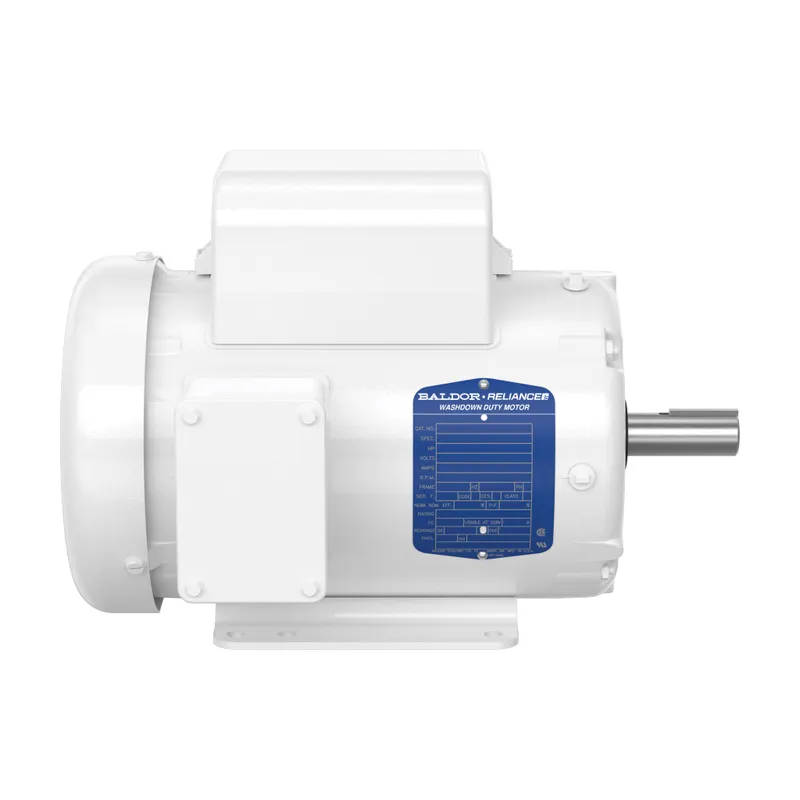

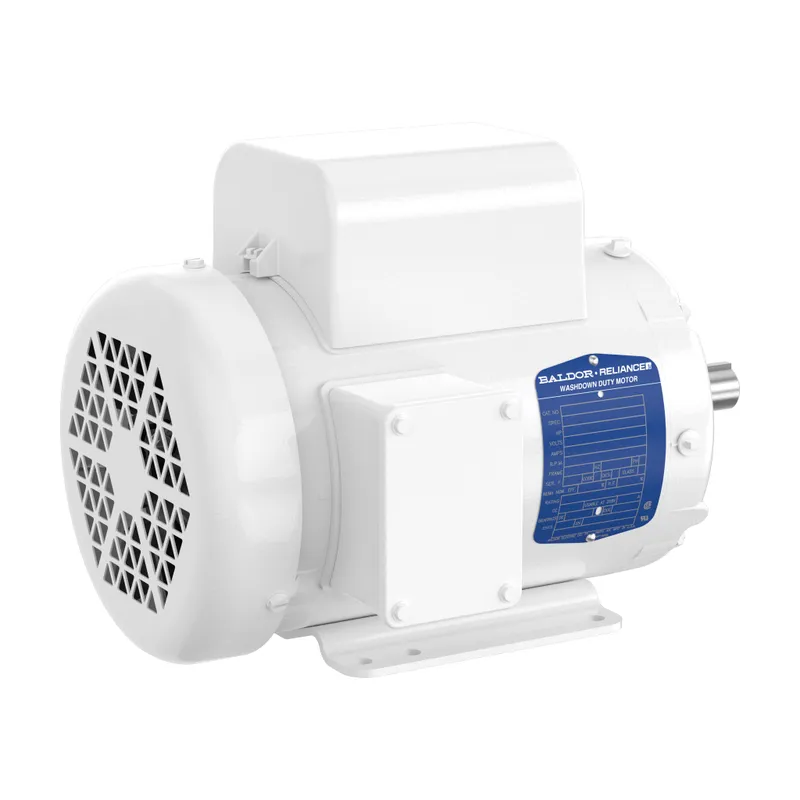

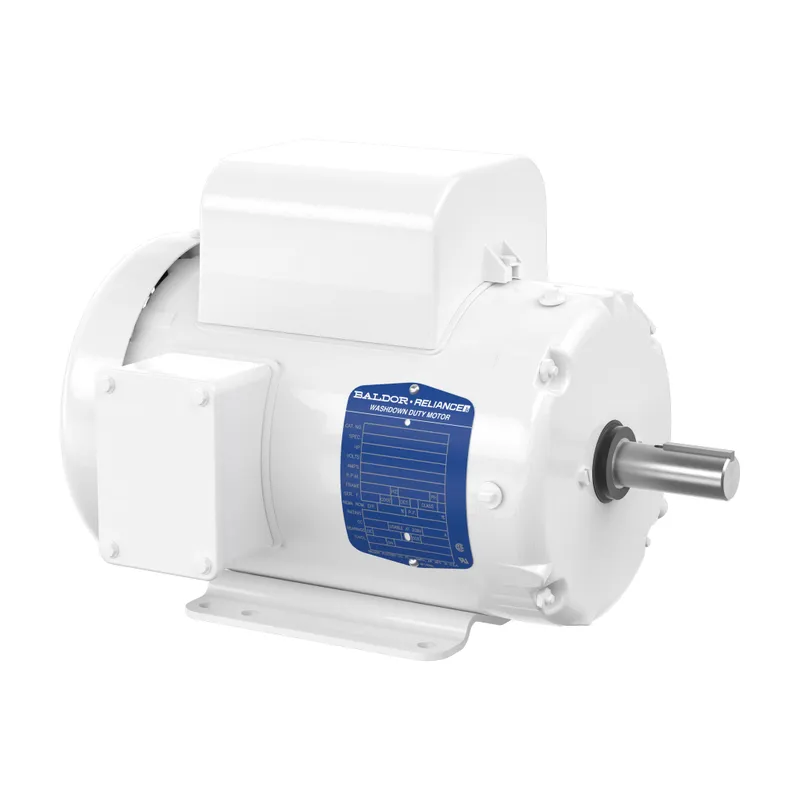

ABB WDL3514T

1.5HP,1725RPM,1PH,60HZ,143T,3532LC

MPN: WDL3514T
Category: White Washdown

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB WDL3514T?

Washdown Motor 1.50 Hp 115 V (WDL3514T)

Specifications

Ordering

Catalog Number	WDL3514T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	L
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	96 %
Rated Efficiency	80 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	1.50 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	145T
Motor Base Type	Rigid
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	50 lb
Product Net Width	13.75 in
Dimension Diagram	35LYE2676

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1329 >> Single phase motor AC
ETIM 7	EC001851 - Electric motor
