Home / ABB / Closed Coupled pump / ABB WCL1409T

ABB

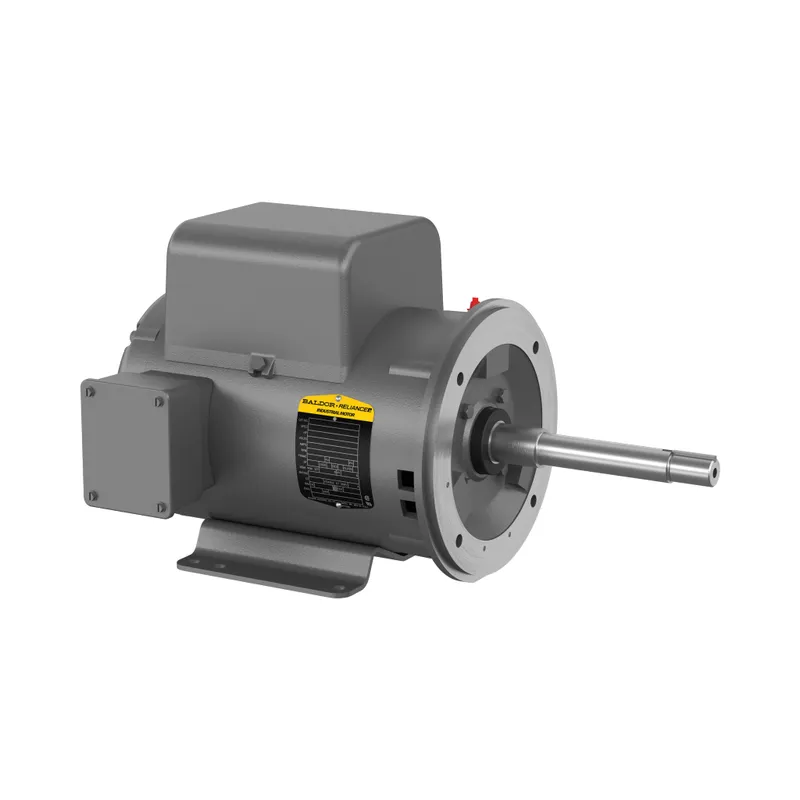

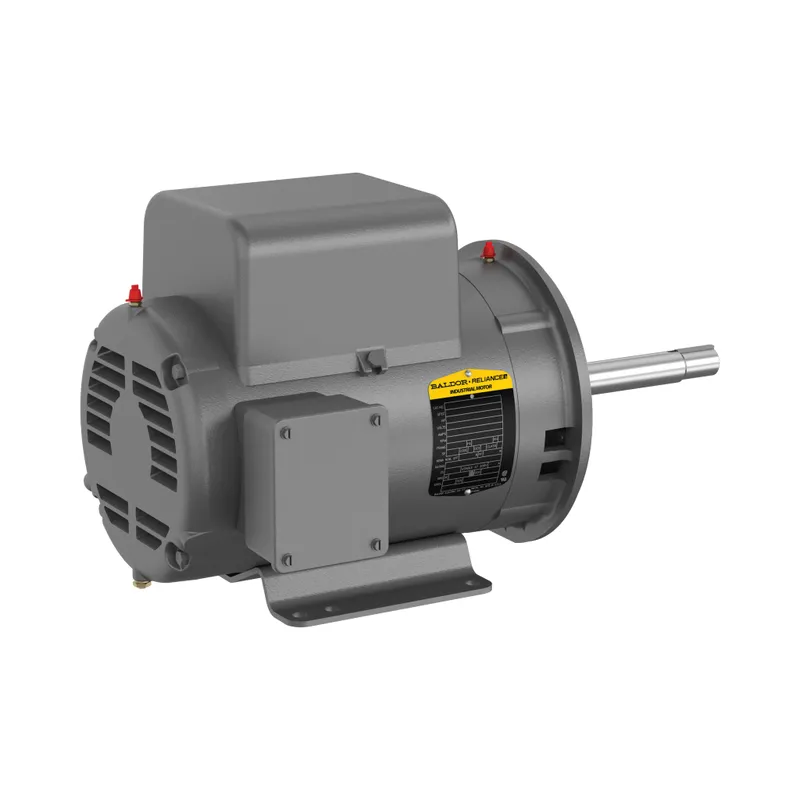

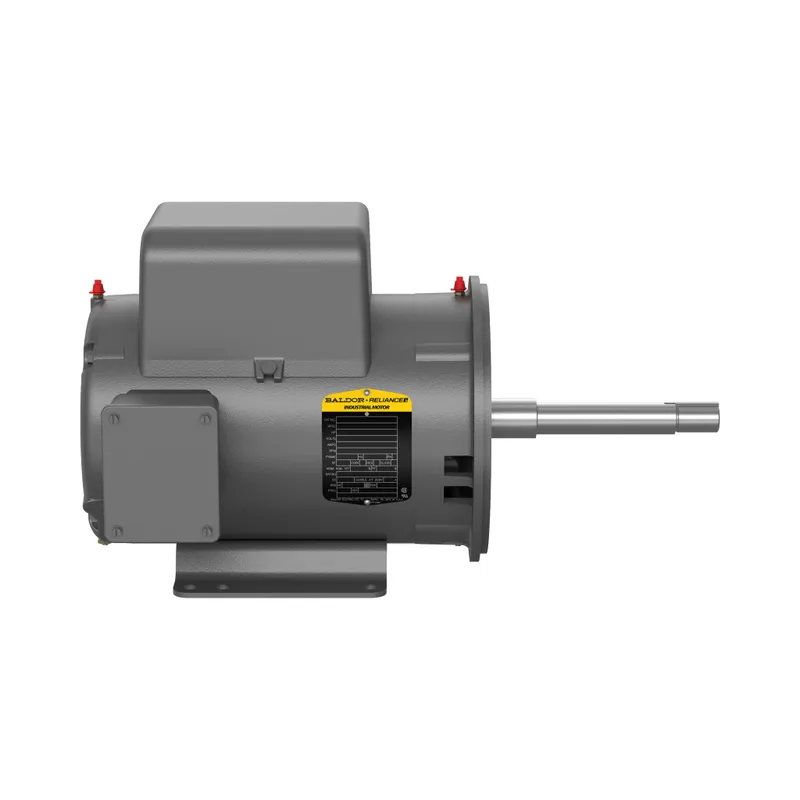

ABB WCL1409T

5HP,3450RPM,1PH,60HZ,184TCZ,3634L,O

MPN: WCL1409T
Category: Closed Coupled pump

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB WCL1409T?

General Purpose Motor 5 Hp 230 V (WCL1409T)

Specifications

Ordering

Catalog Number	WCL1409T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	F
NEMA Design Code	L
Number of Phases	1-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	88 %
Rated Efficiency	75 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	184TCZ
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	16.25 in
Product Net Weight	91 lb
Product Net Width	16.625 in
Dimension Diagram	36LYE775

Certificates and Declarations

Certification Agency	CURUS, UR
IDEA Granular Category Code (IGCC)	1329 >> Single phase motor AC
ETIM 7	EC001851 - Electric motor
