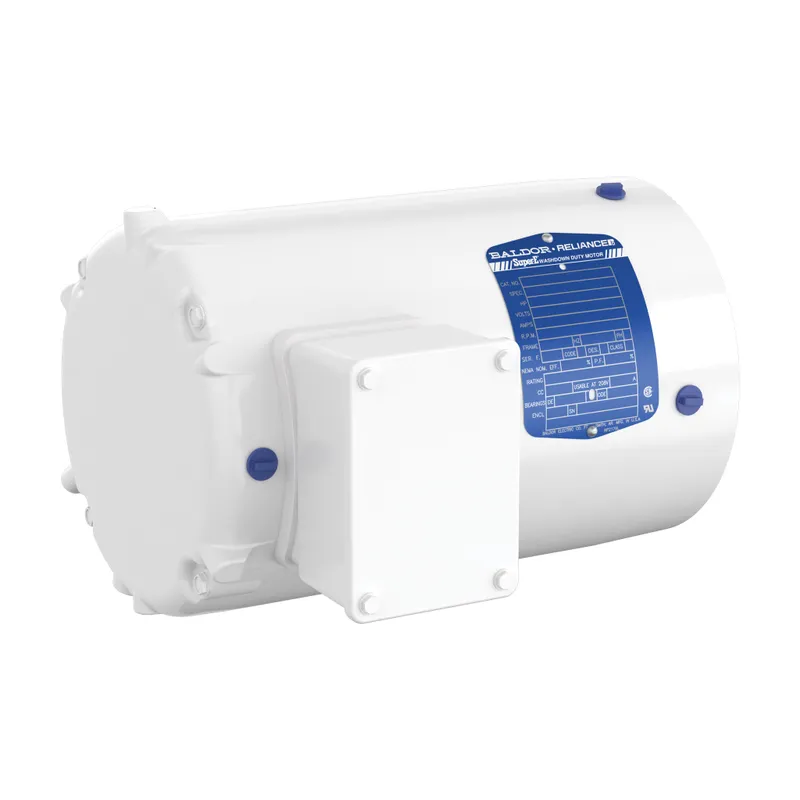

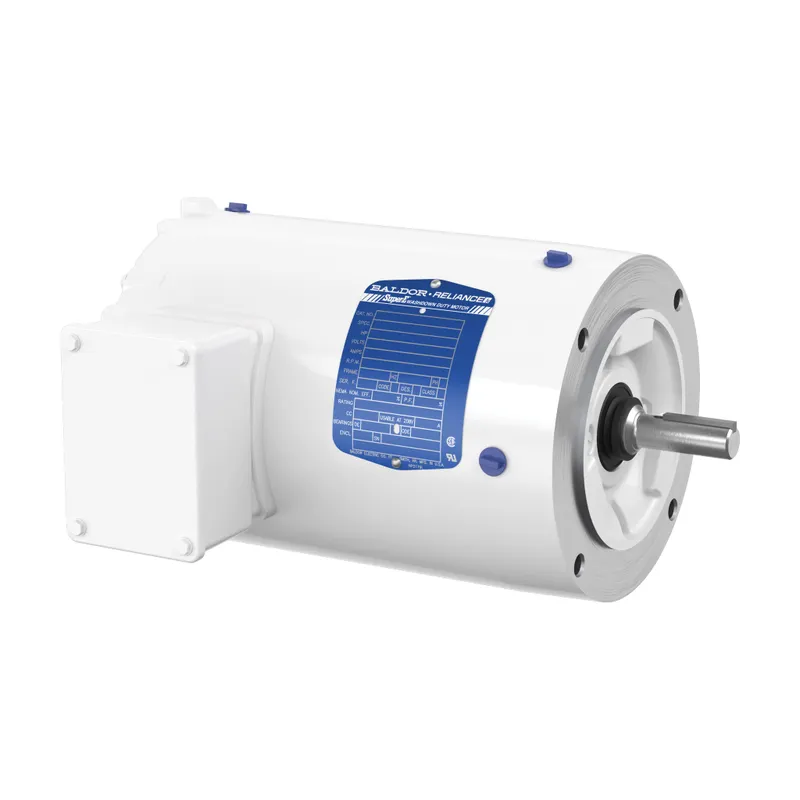

ABB VWDM3542

.75/.55KWHP,1765 1/MINRPM,3PH,60HZ

MPN: VWDM3542
Category: White Washdown

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB VWDM3542?

Washdown Motor 0.750.000 Hp 230 V (VWDM3542)

Specifications

Ordering

Catalog Number	VWDM3542
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt, Undefined Efficiency
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	74 %
Rated Efficiency	82.50 %
Service Factor	1.25
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.750.000 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TENV
Frame Material	Steel
Motor Frame Size	56C
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	33 lb
Product Net Width	11.5 in
Dimension Diagram	35LYS603

Certificates and Declarations

Certification Agency	CE, CURUS, UKCA, WEEE
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
