Home / ABB / High Cycle Brake / ABB VRBM3538

ABB

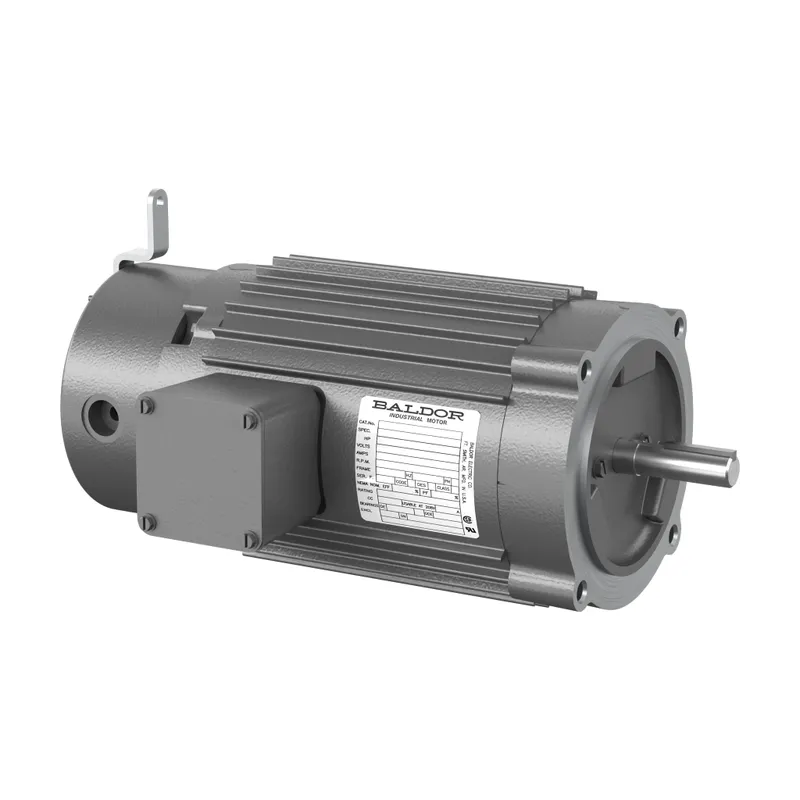

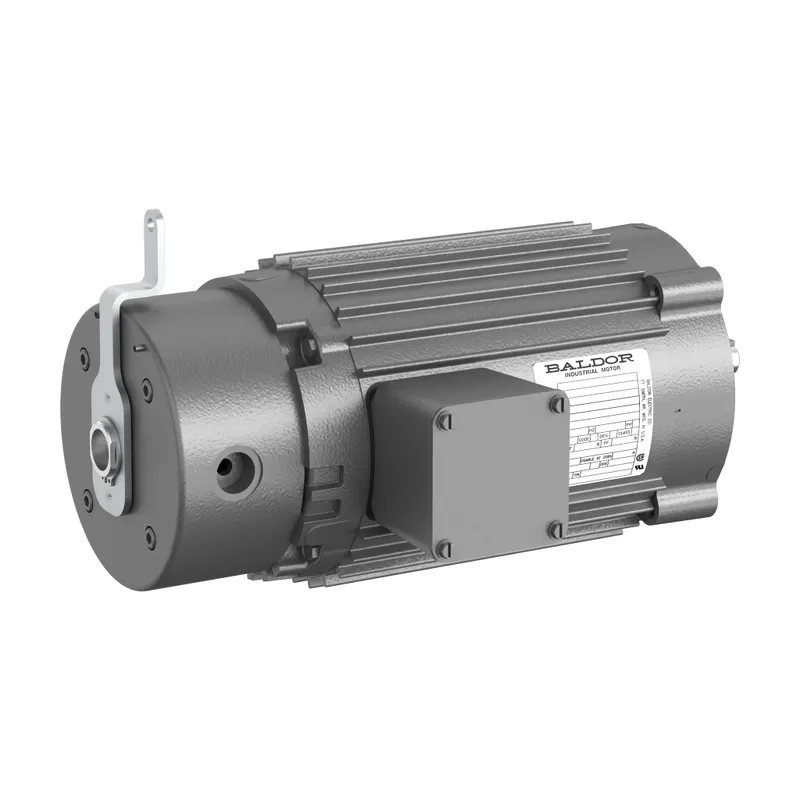

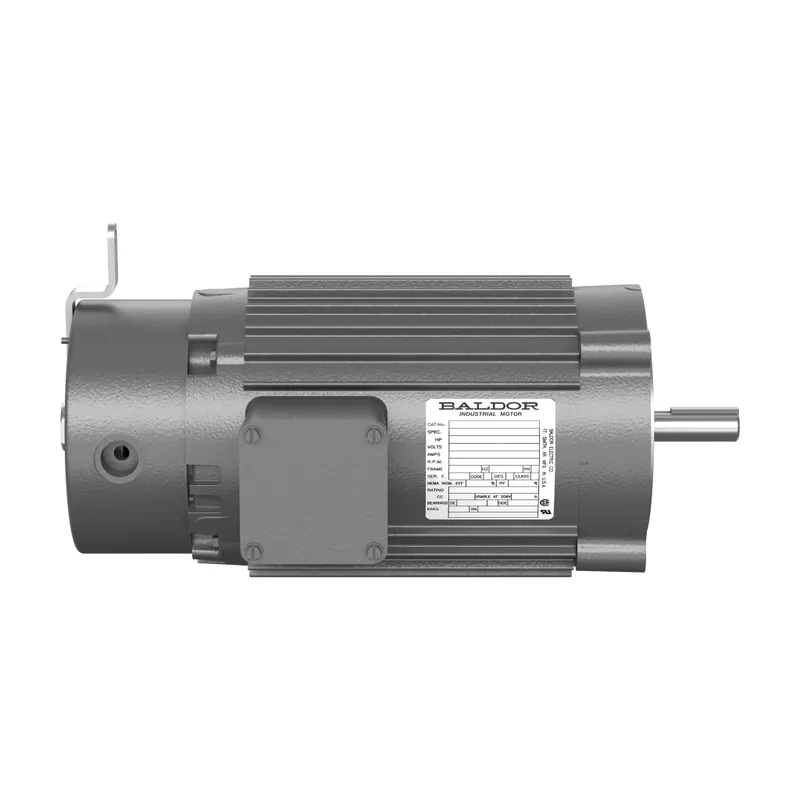

ABB VRBM3538

.5HP,1725RPM,3PH,60HZ,56C,BRAKE,342

MPN: VRBM3538
Category: High Cycle Brake

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB VRBM3538?

High Cycle Brake 0.5 Hp 208 V (VRBM3538)

Specifications

Ordering

Catalog Number	VRBM3538
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt, Undefined Efficiency
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	69 %
Rated Efficiency	75.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TENV
Frame Material	Aluminum
Motor Frame Size	56C
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	Yes

Dimensions

Product Net Height	11.25 in
Product Net Weight	35 lb
Product Net Width	10.5 in
Dimension Diagram	34LYK208

Certificates and Declarations

Certification Agency	CSA, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor

VRBM3538: frequently asked questions

When can VRBM3538 be shipped?

VRBM3538 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VRBM3538 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VRBM3538 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VRBM3538, subject to availability and destination.
