Home / ABB / Three phase enclosed motor / ABB VNM3537
ABB

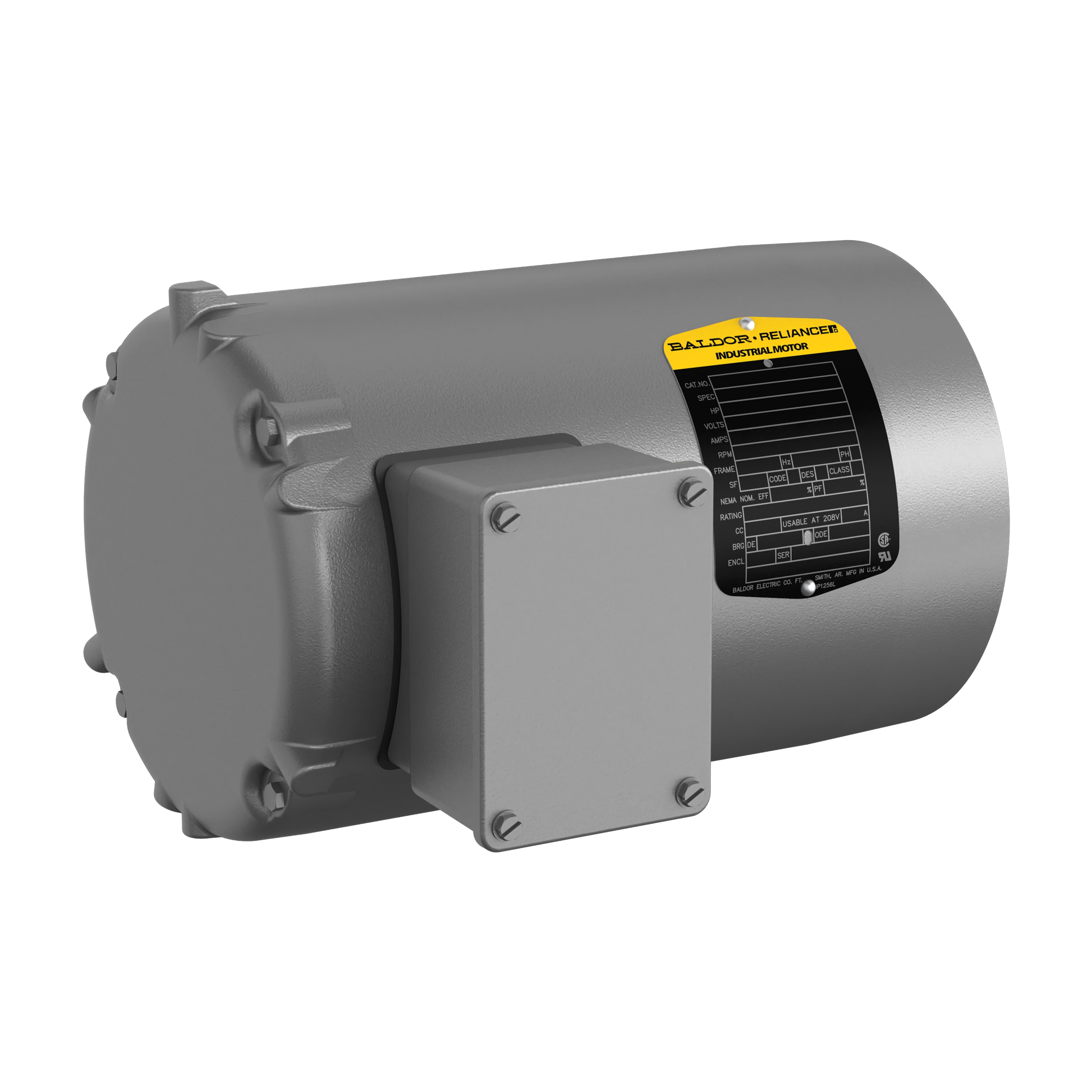

ABB VNM3537

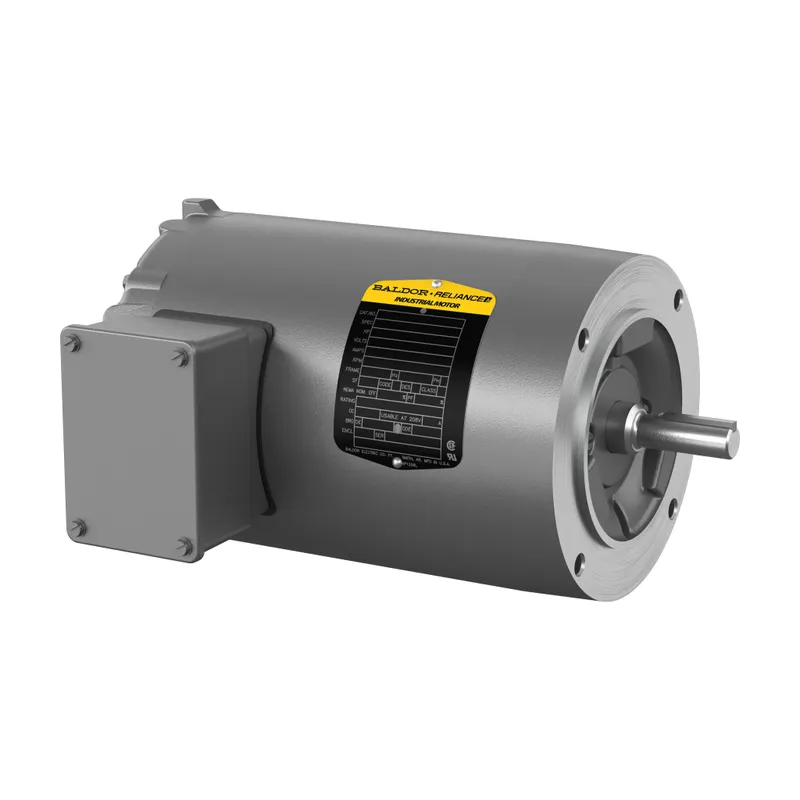

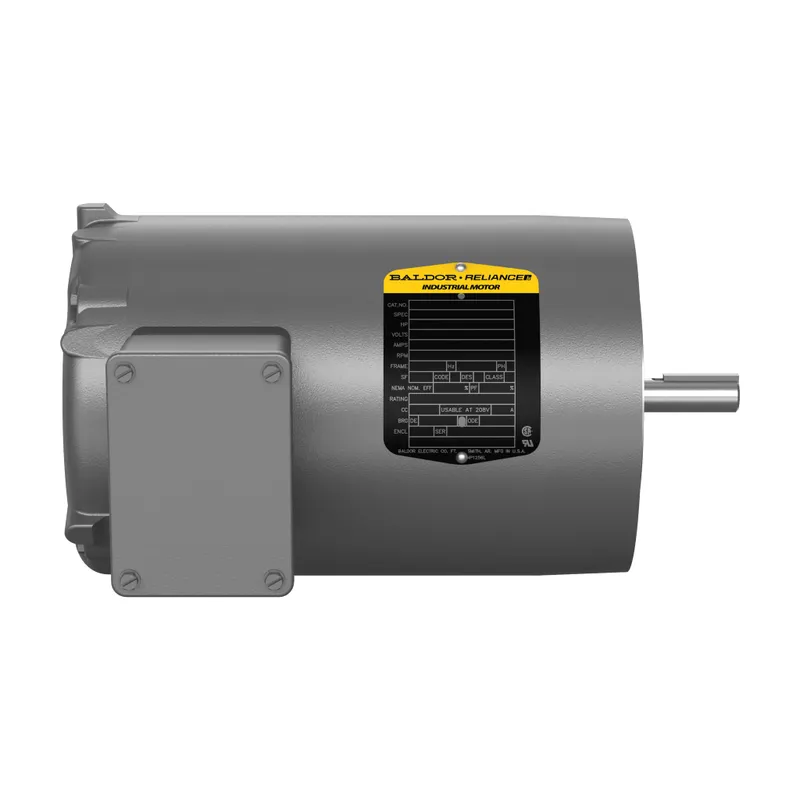

.5HP,3450RPM,3PH,60HZ,56C,3516M,TEN

MPN
VNM3537
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB VNM3537?

General Purpose Motor 0.5 Hp 230 V (VNM3537)

Specifications

Ordering

Catalog NumberVNM3537
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency Level2015 Small Motor Standard, Not Regulated / Exempt, Undefined Efficiency
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor81 %
Rated Efficiency77 %
Service Factor1.25
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power0.5 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTENV
Frame MaterialSteel
Motor Frame Size56C
Motor Base TypeFootless
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height11.125 in
Product Net Weight32 lb
Product Net Width11.5 in
Dimension Diagram35LYE010

Certificates and Declarations

Certification AgencyCSA, UR
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

VNM3537: frequently asked questions

When can VNM3537 be shipped?

VNM3537 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VNM3537 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VNM3537 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VNM3537, subject to availability and destination.
