ABB

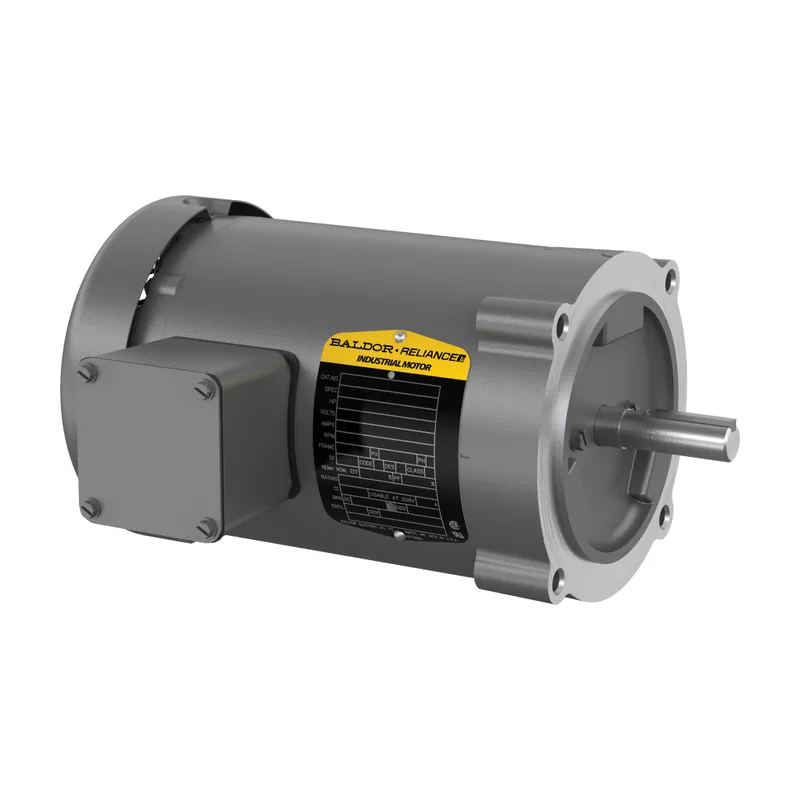

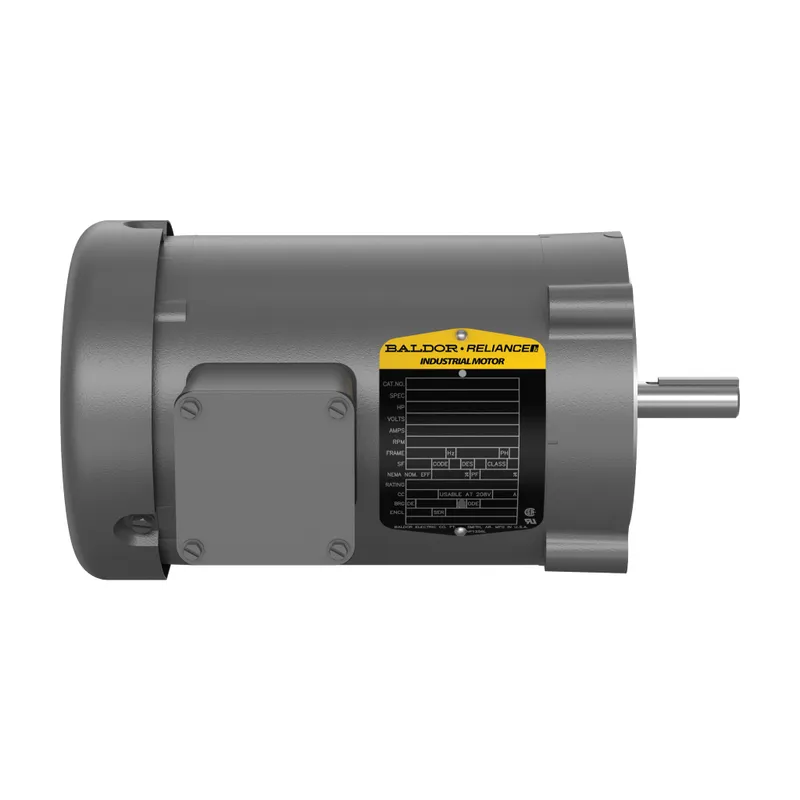

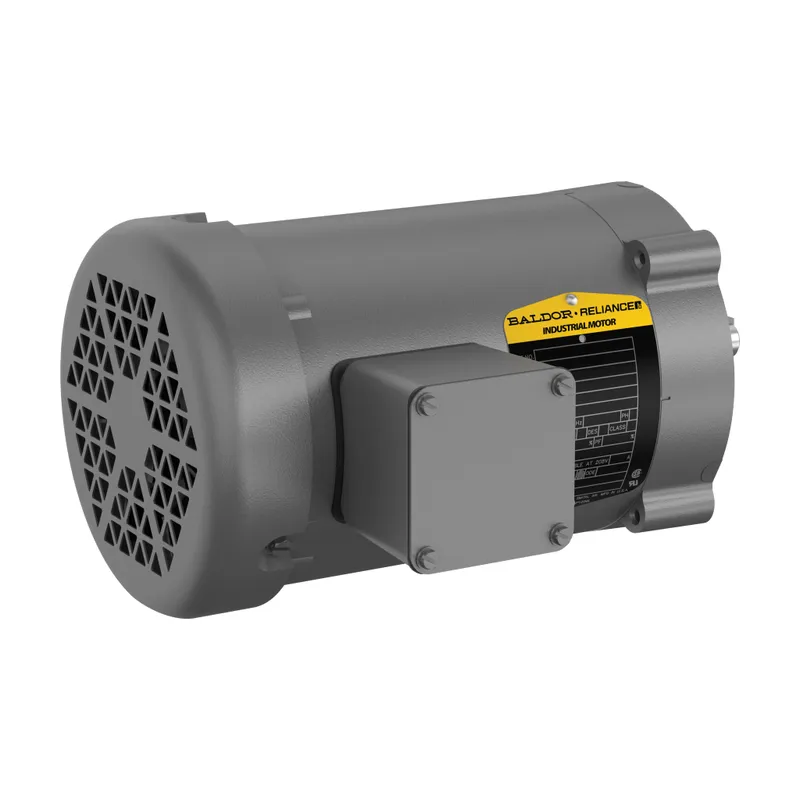

ABB VM3535

.33HP,1140RPM,3PH,60HZ,56C,3414M,TE

MPN: VM3535
Category: Three phase enclosed motor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB VM3535?

General Purpose Motor 0.330.000 Hp 230 V (VM3535)

Specifications

Ordering

Catalog Number	VM3535
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt, Undefined Efficiency
Insulation Class	B
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	51 %
Rated Efficiency	70 %
Service Factor	1.35
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	0.330.000 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	56C
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	9.375 in
Product Net Weight	22 lb
Product Net Width	10.813 in
Dimension Diagram	34LYA063

Certificates and Declarations

Certification Agency	CURUS, UR
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
