Home / ABB / Vertical P-base solid shaft / ABB VLECP4106T

ABB

ABB VLECP4106T

20HP,3540RPM,3PH,60HZ,256LP,0944M,T

MPN: VLECP4106T
Category: Vertical P-base solid shaft

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB VLECP4106T?

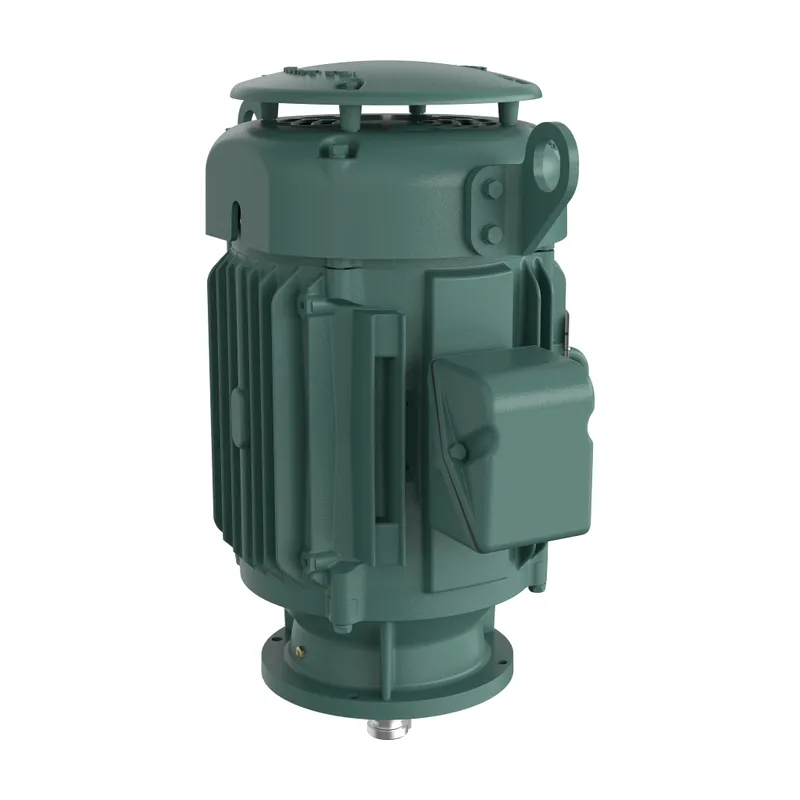

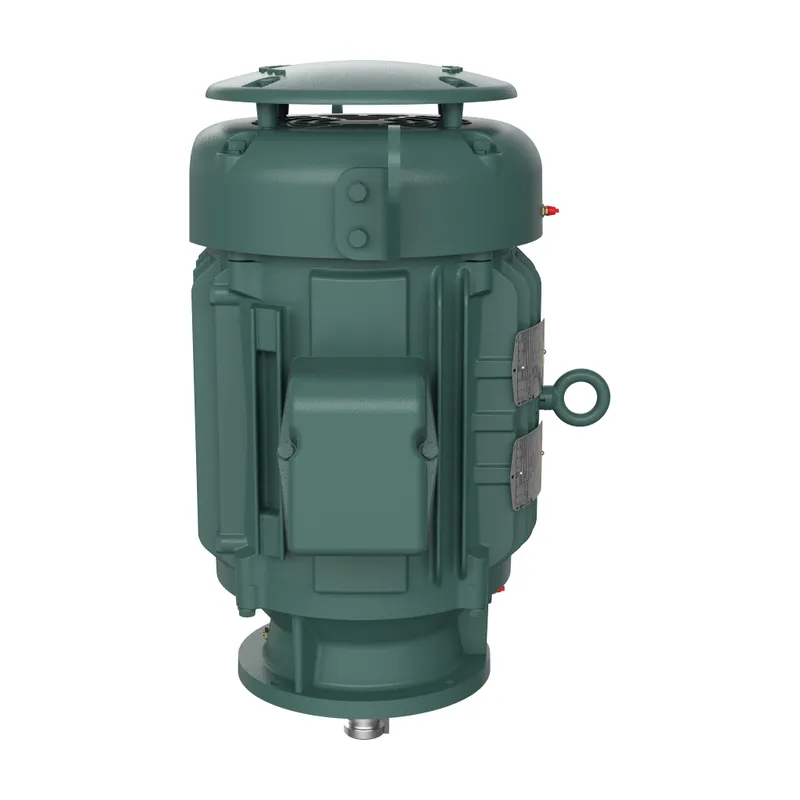

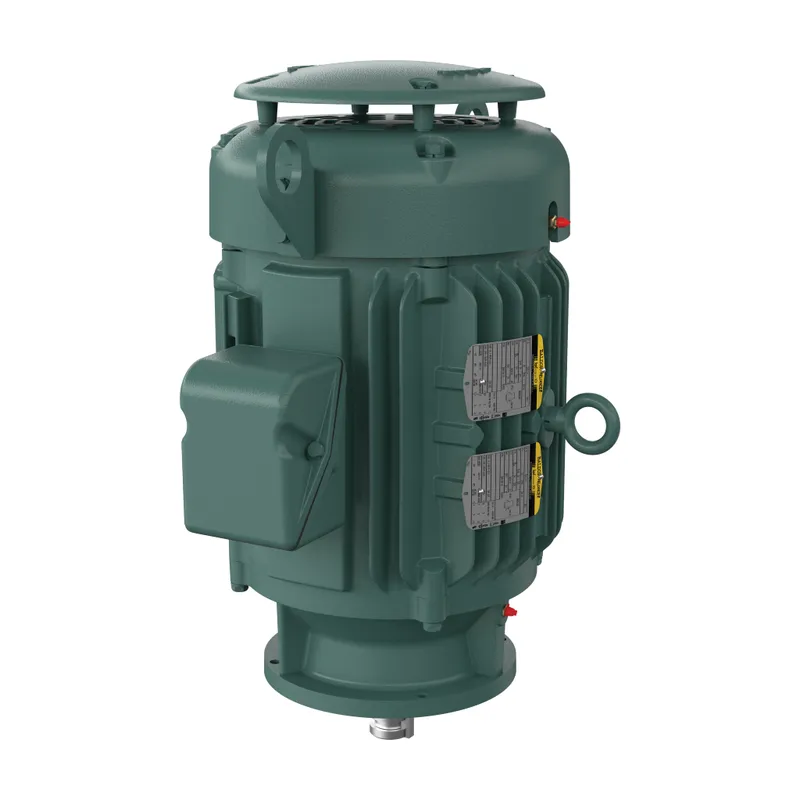

Pump Motor 20 Hp 230 V (VLECP4106T)

Specifications

Ordering

Catalog Number	VLECP4106T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	92 %
Rated Efficiency	91.70 %
Service Factor	1.15
Temperature Class	T3
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	20 Hp

Mechanical

Drive End Flange Type	P-Base
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Cast Iron
Motor Frame Size	256LP
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	34.625 in
Product Net Weight	335 lb
Product Net Width	23.375 in
Dimension Diagram	09LYT001

Certificates and Declarations

Certification Agency	CCSA US, CSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)	1320 >> Pump motor AC
ETIM 7	EC001851 - Electric motor
