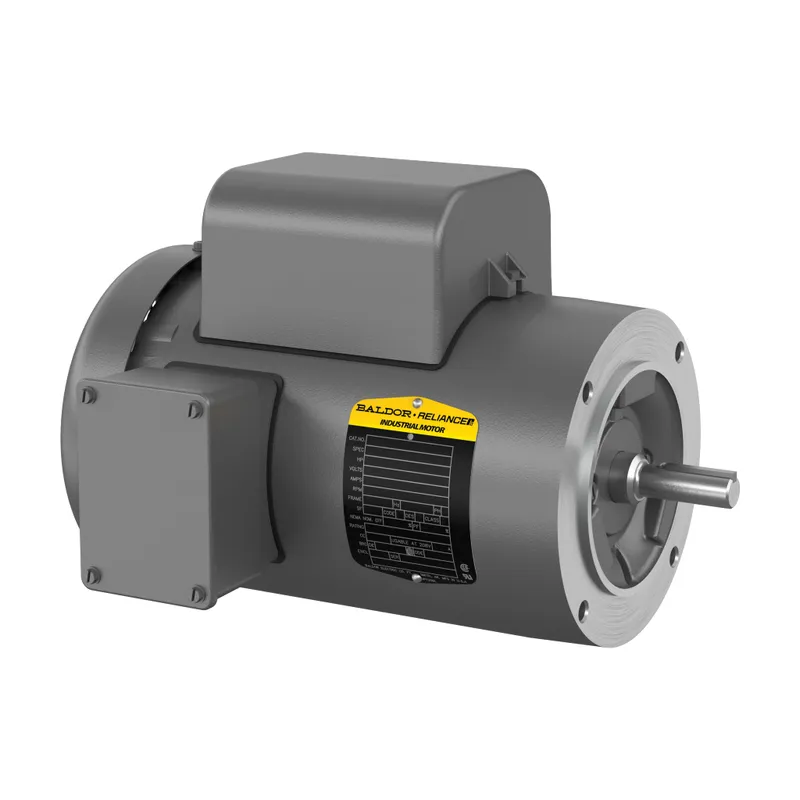

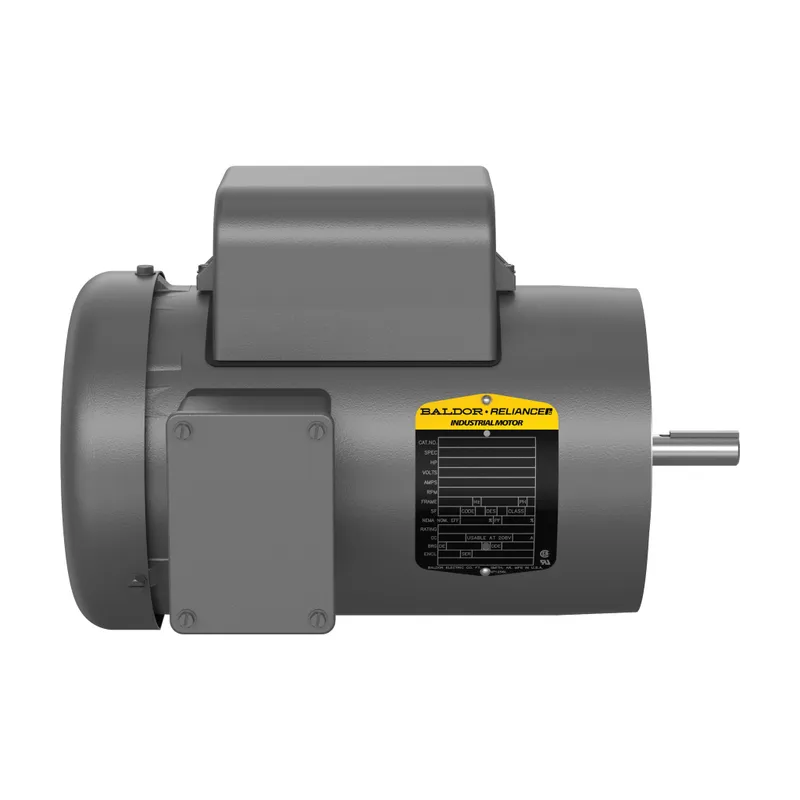

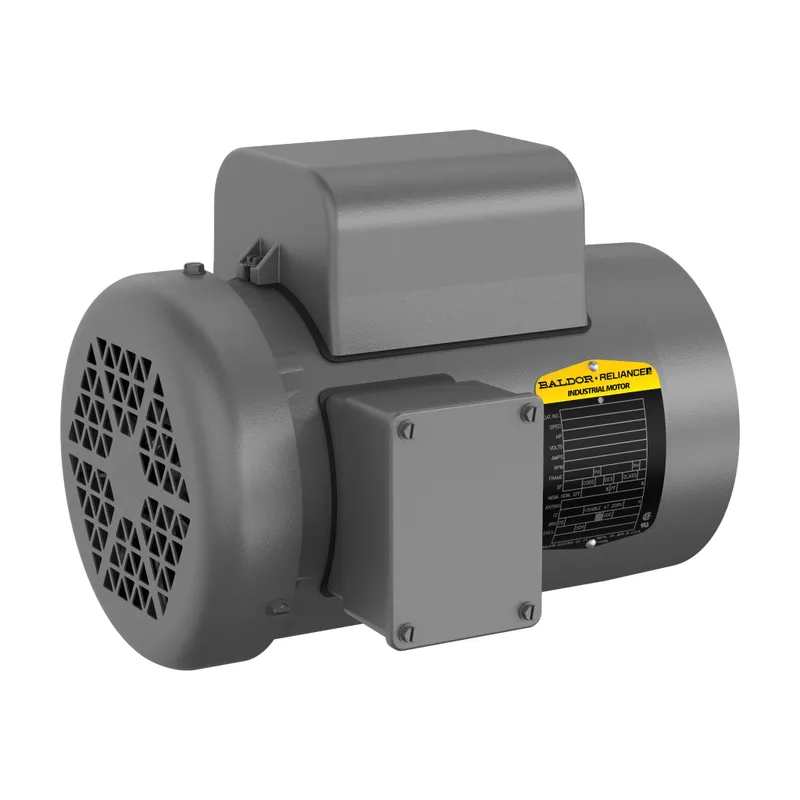

ABB VL3510-50

1/.75KW,1450RPM,1PH,50HZ,56C,3532LC

MPN
VL3510-50
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB VL3510-50?

General Purpose Motor 0.750.000 kW 110 V (VL3510-50)

Specifications

Ordering

Catalog NumberVL3510-50
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE2
Insulation ClassF
NEMA Design CodeN
Number of Phases1-phase
Number of Poles4P
Number of SpeedsSingle Speed
Power Factor82 %
Rated Efficiency68 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1500 r/min
Output Power0.750.000 kW kW

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeTEFC
Frame MaterialSteel
Motor Frame Size56C
Motor Base TypeNo Mounting
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height11.125 in
Product Net Weight47 lb
Product Net Width11.5 in
Dimension Diagram35LYE022

Certificates and Declarations

Certification AgencyC UR US, CE, CURUS, UKCA, WEEE
IDEA Granular Category Code (IGCC)1329 >> Single phase motor AC
ETIM 7EC001851 - Electric motor
