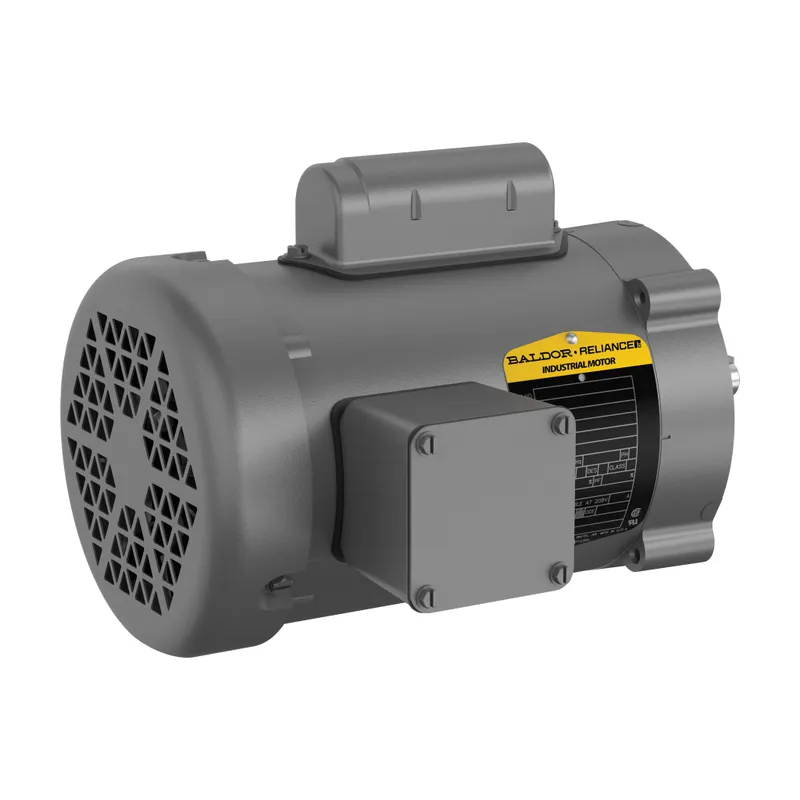

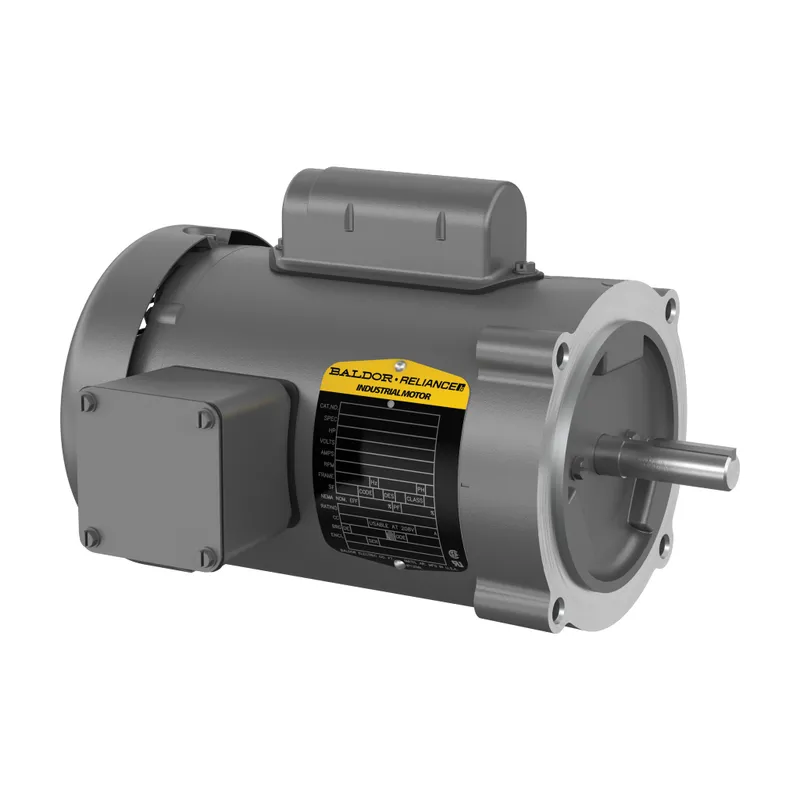

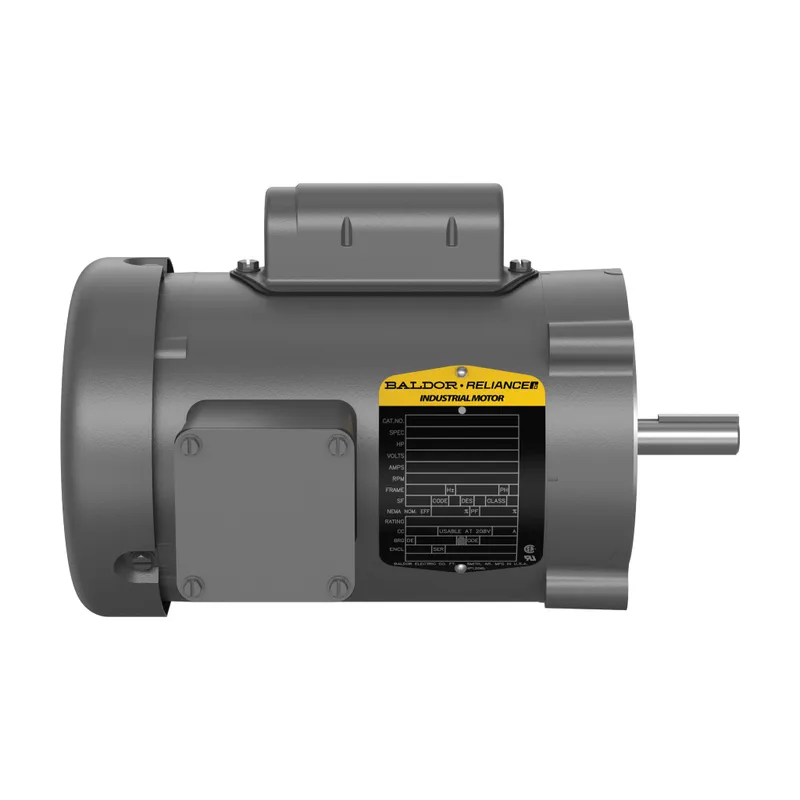

ABB VL3504-50
.5/.37KW,1425RPM,1PH,50HZ,56C,3424L
- MPN
- VL3504-50
- Category
- Single phase enclosed
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB VL3504-50?
General Purpose Motor 0.370.000 kW 110 V (VL3504-50)
Specifications
Ordering
| Catalog Number | VL3504-50 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85013100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | IE2 |
| Insulation Class | B |
| NEMA Design Code | N |
| Number of Phases | 1-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 76 % |
| Rated Efficiency | 62 % |
| Service Factor | 1.25 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1500 r/min |
| Output Power | 0.370.000 kW kW |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Frame Material | Steel |
| Motor Frame Size | 56C |
| Motor Base Type | No Mounting |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 11.125 in |
| Product Net Weight | 31 lb |
| Product Net Width | 11.5 in |
| Dimension Diagram | 34LYH852 |
Certificates and Declarations
| Certification Agency | C UR US, CE, CURUS, UKCA, WEEE |
| IDEA Granular Category Code (IGCC) | 1329 >> Single phase motor AC |
| ETIM 7 | EC001851 - Electric motor |
VL3504-50: frequently asked questions
When can VL3504-50 be shipped?
VL3504-50 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VL3504-50 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VL3504-50 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VL3504-50, subject to availability and destination.
