Home / ABB / Fire pump / ABB VJPFPM2514T

ABB

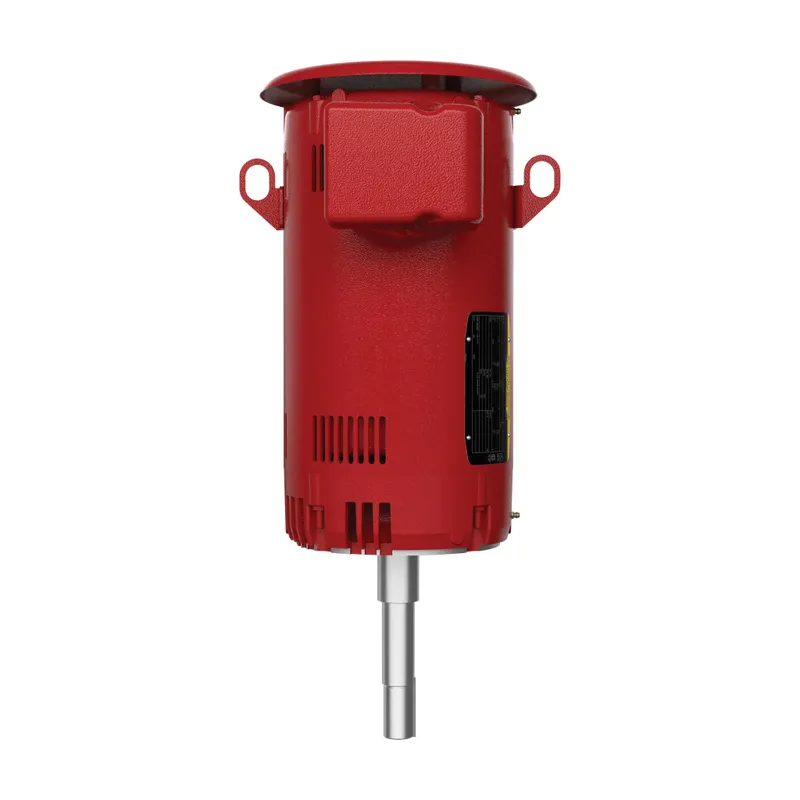

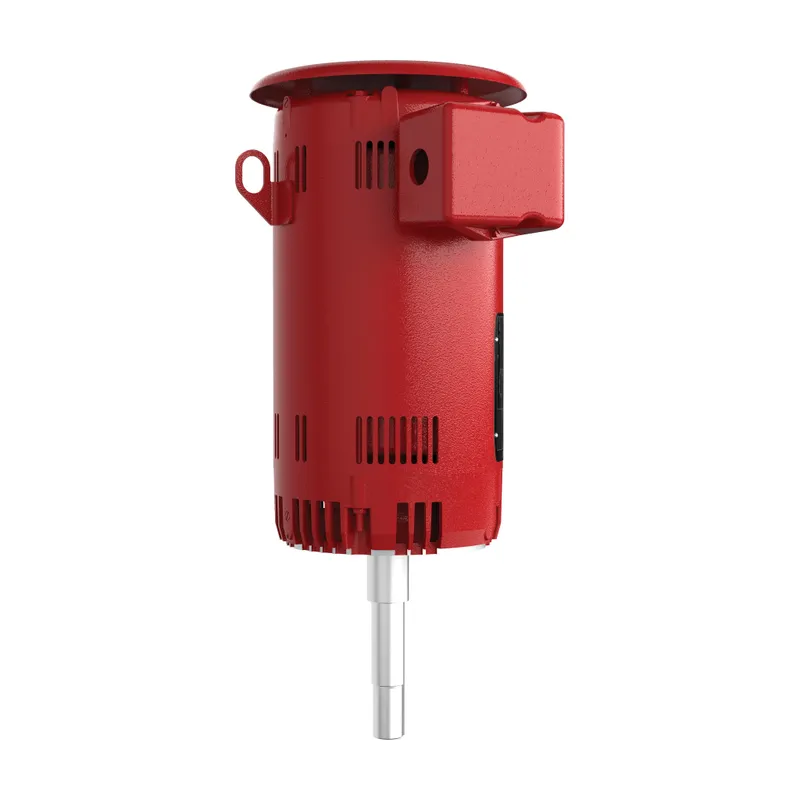

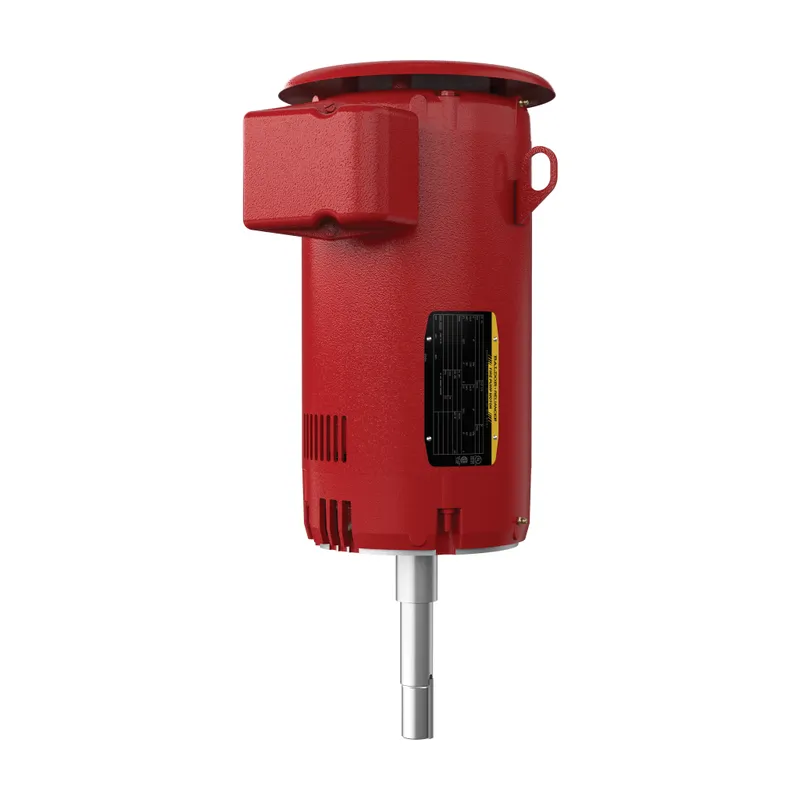

ABB VJPFPM2514T

20//15HP,3450//2860RPM,3PH,60//50HZ

MPN: VJPFPM2514T
Category: Fire pump

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB VJPFPM2514T?

Pump Motor 15 Hp 190 V (VJPFPM2514T)

Specifications

Ordering

Catalog Number	VJPFPM2514T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Energy Efficiency (NEMA 12-11), IE2
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	90 %
Rated Efficiency	90.20 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Y-Start/Delta Run
Synchronous Speed (vsyn)	3600 r/min
Output Power	15 Hp, 20.000 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	254JP
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	18.625 in
Product Net Weight	145 lb
Product Net Width	17.625 in
Dimension Diagram	37LYN805

Certificates and Declarations

Certification Agency	CSA EEV, CULUS
IDEA Granular Category Code (IGCC)	1320 >> Pump motor AC
ETIM 7	EC001851 - Electric motor
