ABB

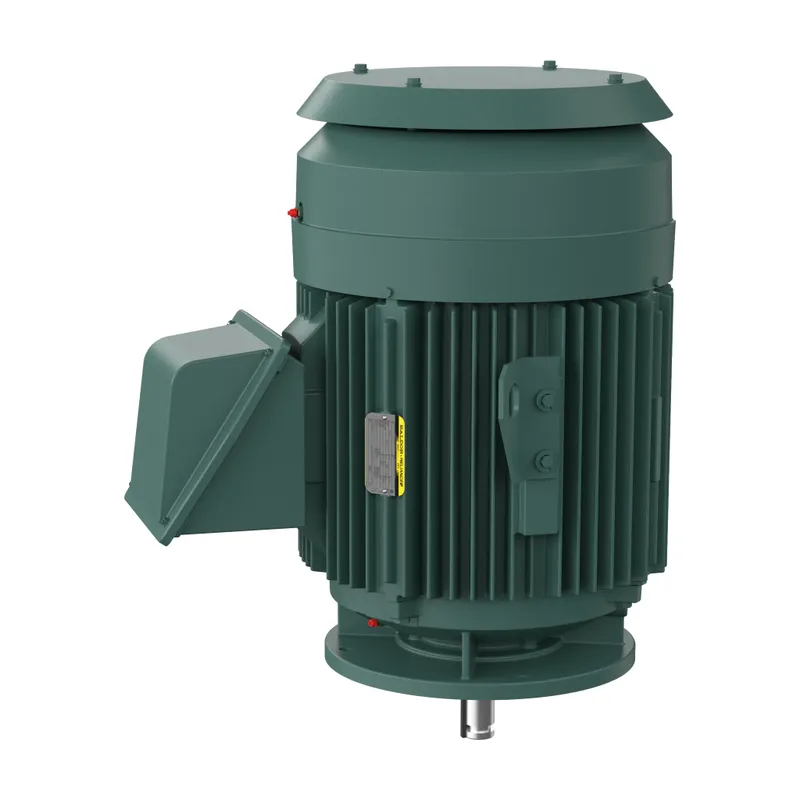

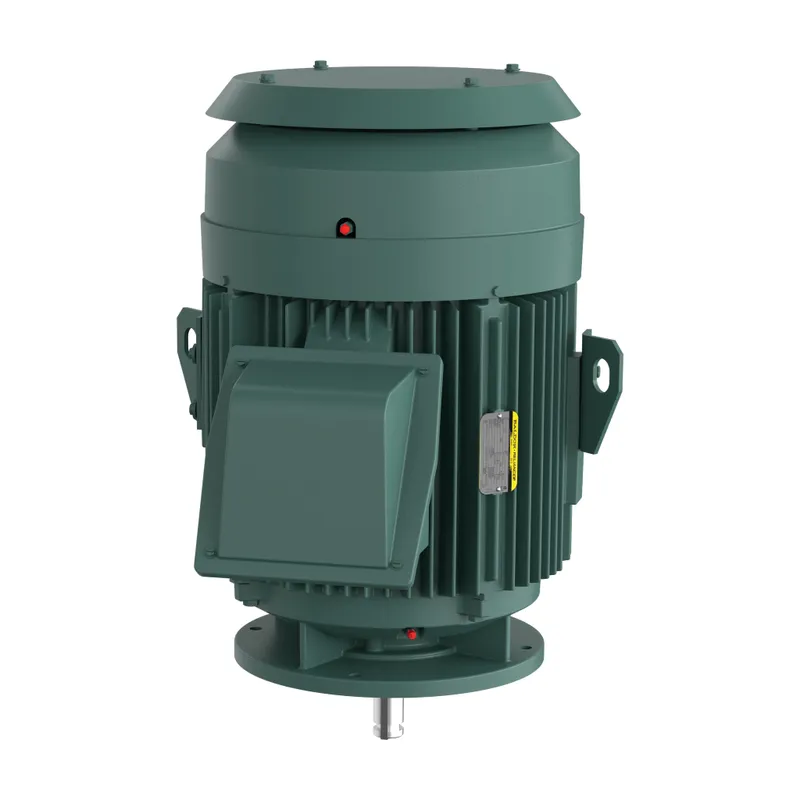

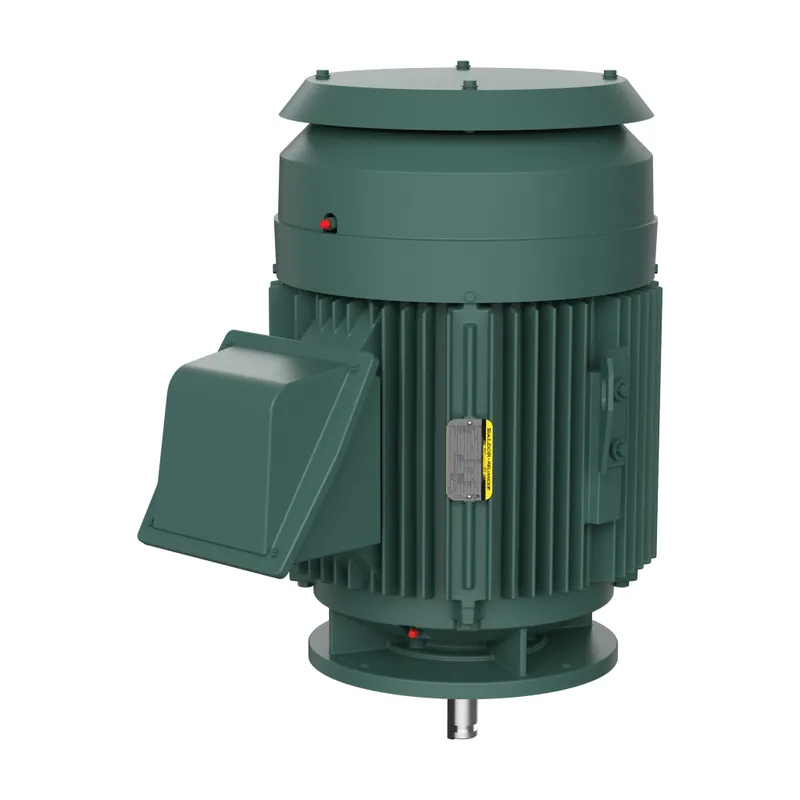

ABB VHECP4314T

60HP,1780RPM,3PH,60HZ,364HP,1462M,T

MPN: VHECP4314T
Category: Vertical P-base solid shaft

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB VHECP4314T?

Pump Motor 60 Hp 230 V (VHECP4314T)

Specifications

Ordering

Catalog Number	VHECP4314T
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Premium Efficiency (NEMA 12-12)
Insulation Class	F
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	87 %
Rated Efficiency	95 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	60 Hp

Mechanical

Drive End Flange Type	P-Base
Enclosure Type	TEFC
Frame Material	Cast Iron
Motor Frame Size	364HP
Motor Base Type	Bracket Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	25.625 in
Product Net Weight	969 lb
Product Net Width	32.5 in
Dimension Diagram	617428-035

Certificates and Declarations

Certification Agency	CCSAUSEEV
IDEA Granular Category Code (IGCC)	1320 >> Pump motor AC
ETIM 7	EC001851 - Electric motor

VHECP4314T: frequently asked questions

When can VHECP4314T be shipped?

VHECP4314T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VHECP4314T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VHECP4314T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VHECP4314T, subject to availability and destination.
