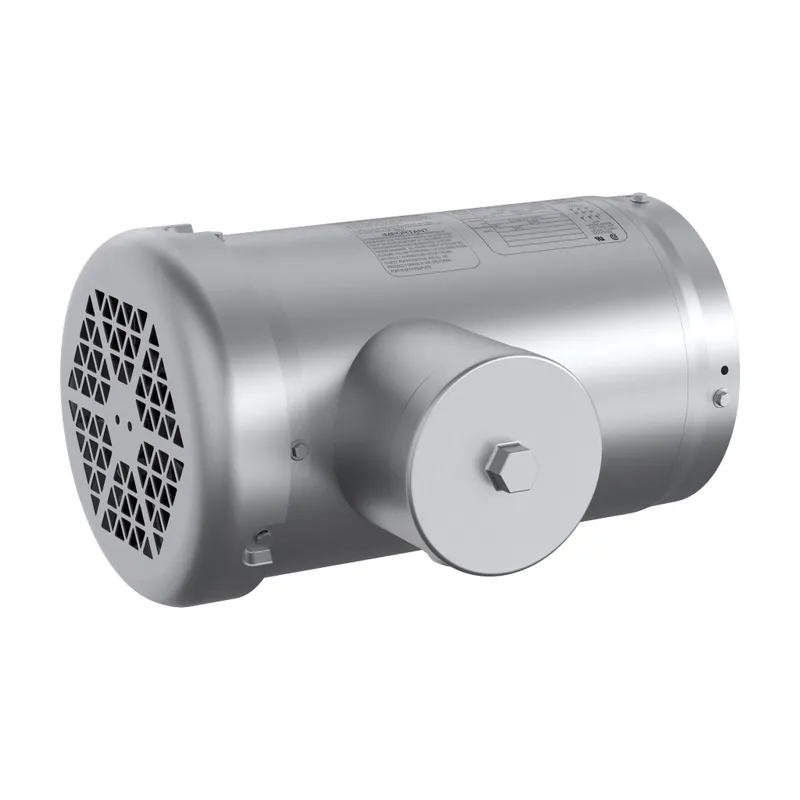

ABB VFSWDM3556-E

1HP,1170RPM,3PH,60HZ,56C,3532M,TEFC

MPN: VFSWDM3556-E
Category: Food Safe three phase motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB VFSWDM3556-E?

Washdown Motor 1 Hp 230 V (VFSWDM3556-E)

Specifications

Ordering

Catalog Number	VFSWDM3556-E
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	6P
Number of Speeds	Single Speed
Power Factor	65 %
Rated Efficiency	82.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1200 r/min
Output Power	1 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Stainless Steel
Motor Frame Size	56C
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	45 lb
Product Net Width	13.75 in
Dimension Diagram	35LYE4649

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA PREMIUM, NEMA_PREMIUM, WEEE
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
