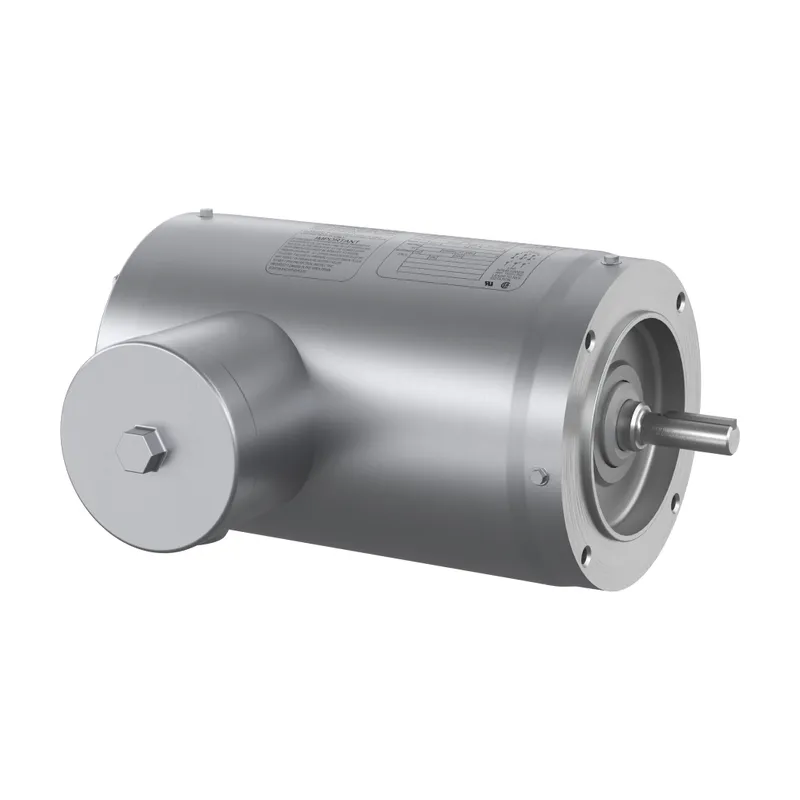

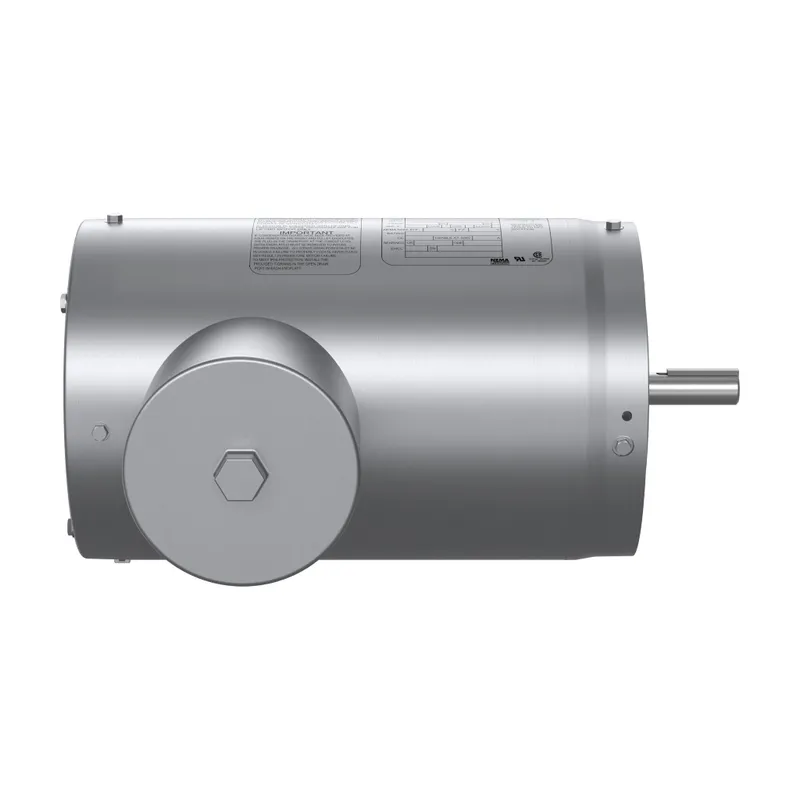

ABB VFSWDM3542-E
.75HP,1765RPM,3PH,60HZ,56C,3514M,TE
- MPN
- VFSWDM3542-E
- Category
- Food Safe three phase motors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the ABB VFSWDM3542-E?
Washdown Motor 0.750.000 Hp 208 V (VFSWDM3542-E)
Specifications
Ordering
| Catalog Number | VFSWDM3542-E |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Not Regulated / Exempt, Undefined Efficiency |
| Insulation Class | H |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 70 % |
| Rated Efficiency | 84 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 0.750.000 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TENV |
| Frame Material | Stainless Steel |
| Motor Frame Size | 56C |
| Motor Base Type | No Mounting |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 13.123 in |
| Product Net Weight | 41 lb |
| Product Net Width | 13.75 in |
| Dimension Diagram | 35LYE4656 |
Certificates and Declarations
| Certification Agency | CURUSEEV, NEMA PREMIUM, NEMA_PREMIUM, WEEE |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| ETIM 7 | EC001851 - Electric motor |
VFSWDM3542-E: frequently asked questions
When can VFSWDM3542-E be shipped?
VFSWDM3542-E is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VFSWDM3542-E in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VFSWDM3542-E and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VFSWDM3542-E, subject to availability and destination.
