Home / ABB / Farm Duty Three Phase / ABB VFDL3504M

ABB

ABB VFDL3504M

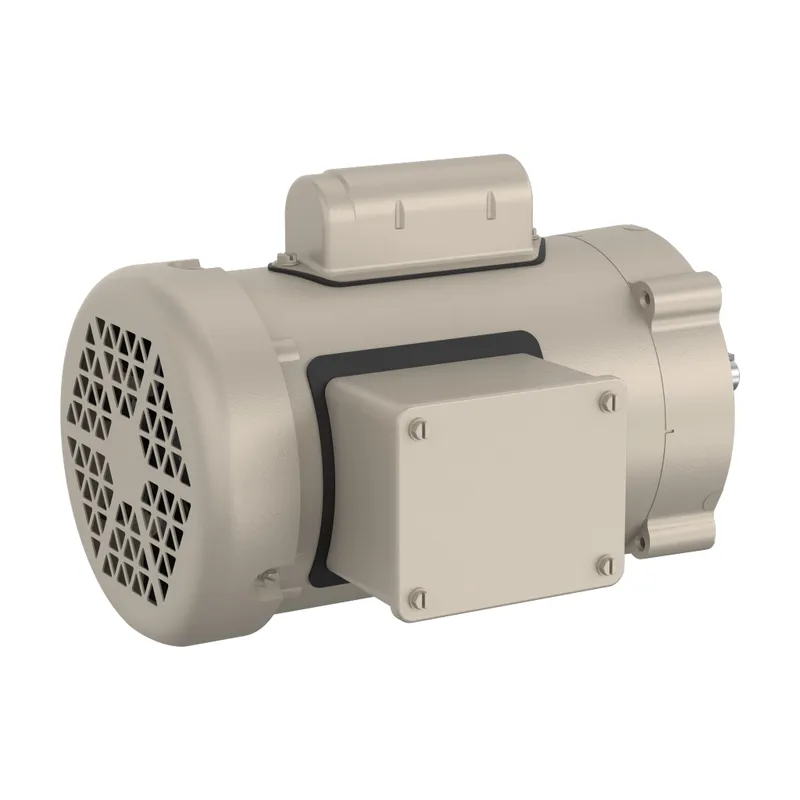

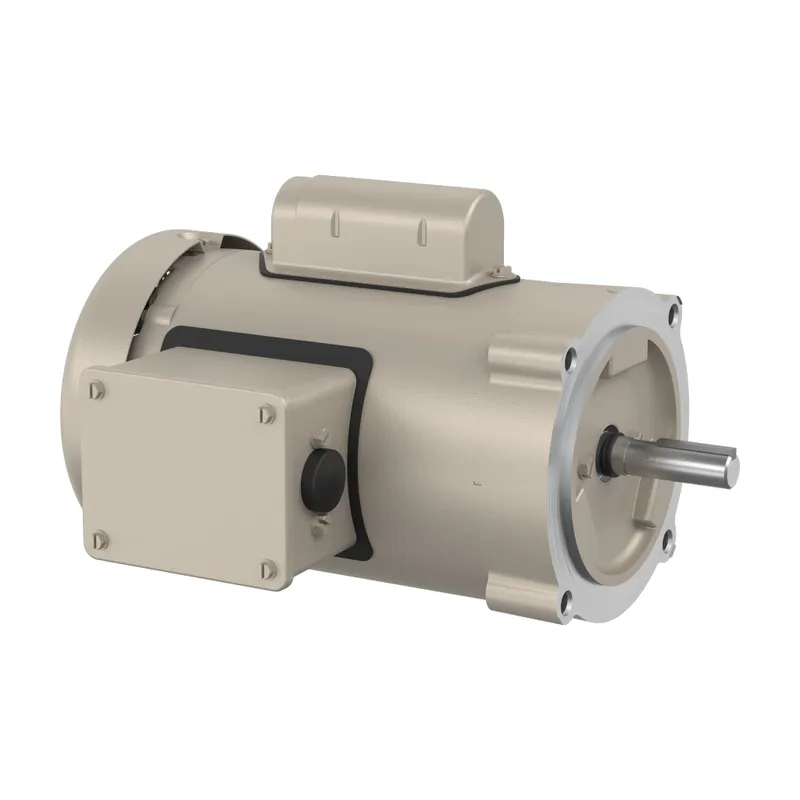

.5HP,1725RPM,1PH,60HZ,56C,3421L,TEF

MPN: VFDL3504M
Category: Farm Duty Three Phase

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB VFDL3504M?

Farm Duty Motor 0.5 Hp 115 V (VFDL3504M)

Specifications

Ordering

Catalog Number	VFDL3504M
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	B
NEMA Design Code	N
Number of Phases	1-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	66 %
Rated Efficiency	68 %
Service Factor	1.25
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TEFC
Frame Material	Steel
Motor Frame Size	56C
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	27 lb
Product Net Width	11.5 in
Dimension Diagram	34LYM372

Certificates and Declarations

Certification Agency	C UR US, CURUS
IDEA Granular Category Code (IGCC)	1317 >> Farm duty motor AC
ETIM 7	EC001851 - Electric motor
