Home / ABB / Three phase open motors / ABB VEM3212T
ABB

ABB VEM3212T

5HP,3450RPM,3PH,60HZ,182TC,3544M,OP

MPN
VEM3212T
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB VEM3212T?

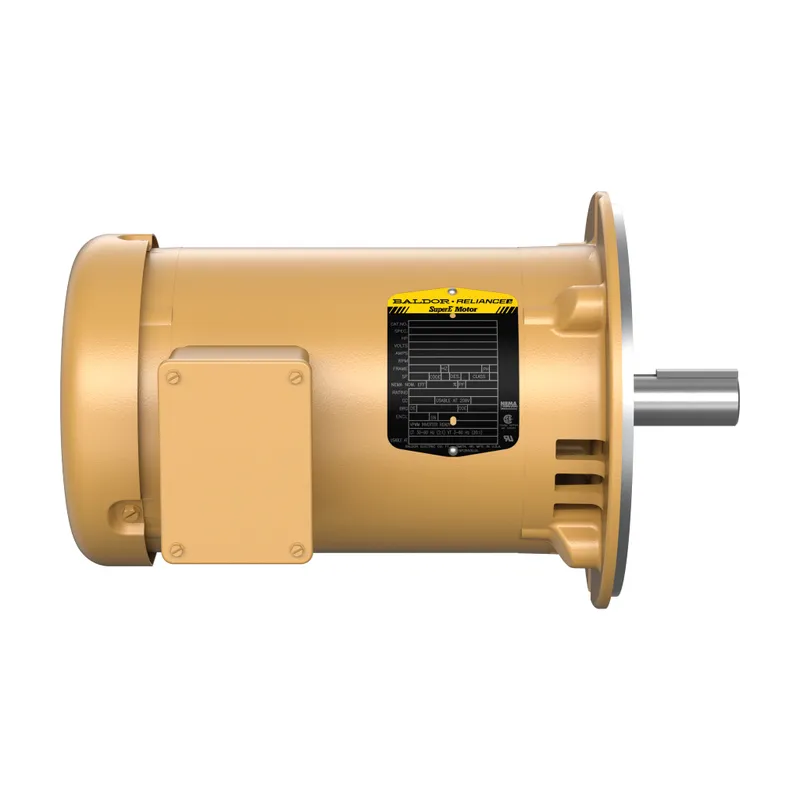

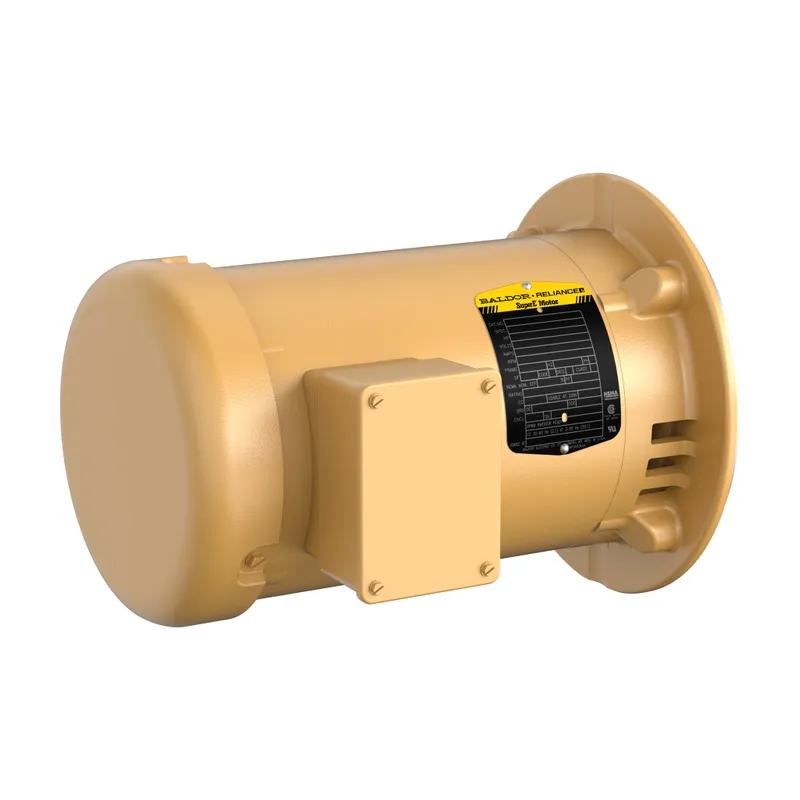

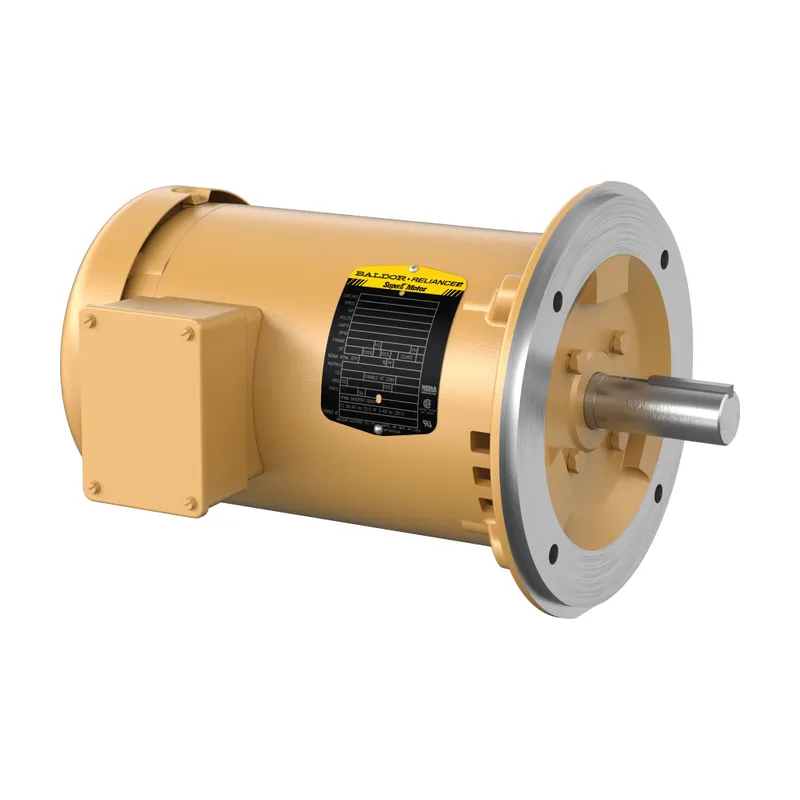

General Purpose Motor 5 Hp 230 V (VEM3212T)

Specifications

Ordering

Catalog NumberVEM3212T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelIE1, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeA A
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor89 %
Rated Efficiency86.50 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power5 Hp

Mechanical

Drive End Flange TypeC-Face
Enclosure TypeOPEN
Frame MaterialSteel
Motor Frame Size182TC
Motor Base TypeNo Mounting
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height13.123 in
Product Net Weight64 lb
Product Net Width13.75 in
Dimension Diagram35LYZ323

Certificates and Declarations

Certification AgencyCURUSEEV, NEMA PREMIUM, UR
IDEA Granular Category Code (IGCC)1328 >> Multi phase motor AC
ETIM 7EC001851 - Electric motor

VEM3212T: frequently asked questions

When can VEM3212T be shipped?

VEM3212T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VEM3212T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VEM3212T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VEM3212T, subject to availability and destination.
