Home / ABB / Three phase open motors / ABB VEM31111

ABB

ABB VEM31111

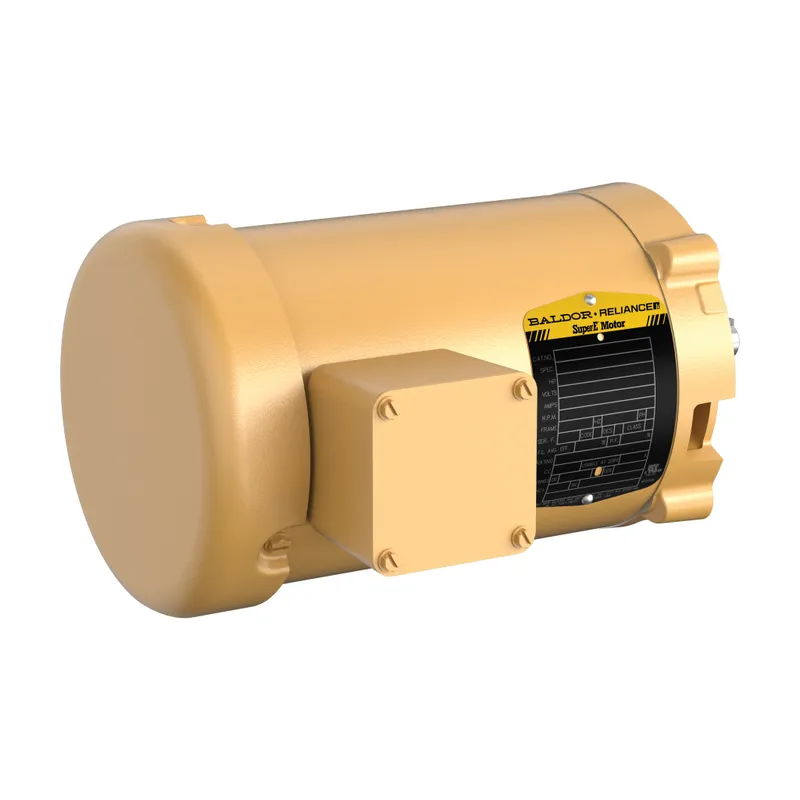

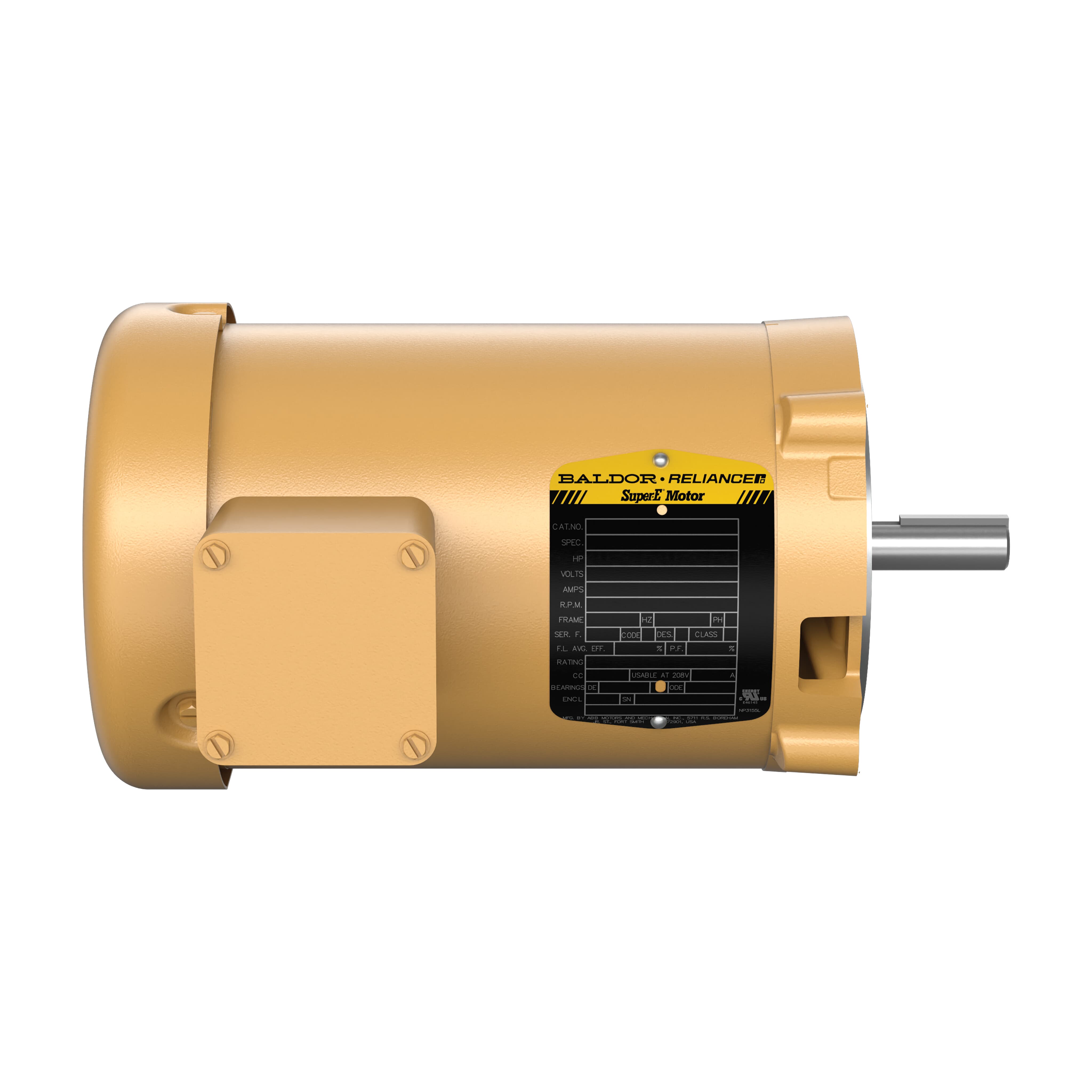

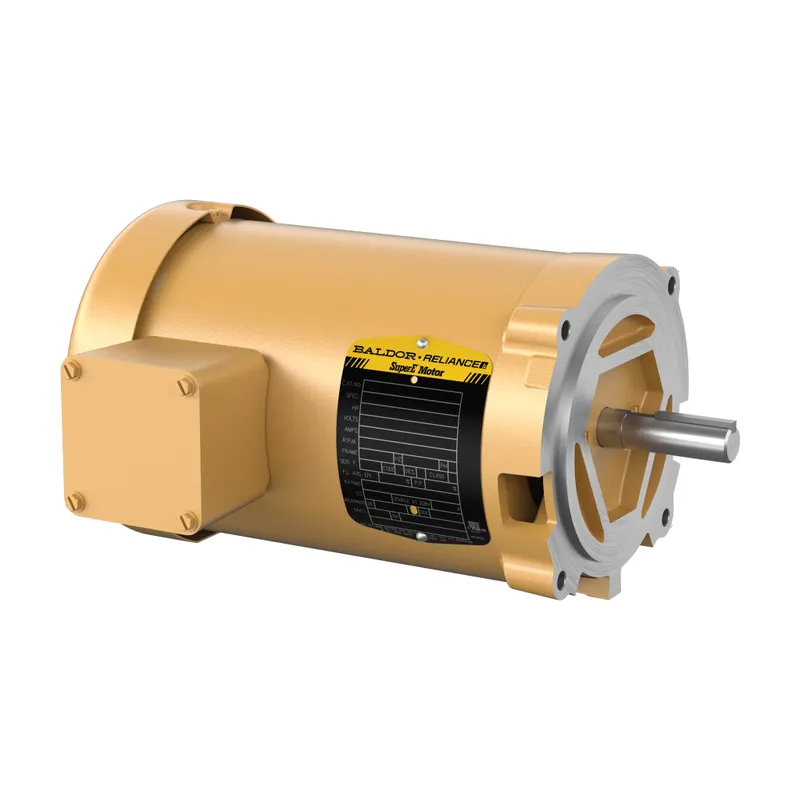

.75HP,3450RPM,3PH,60HZ,56C,3416M,OP

MPN: VEM31111
Category: Three phase open motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the ABB VEM31111?

General Purpose Motor 0.750.000 Hp 230 V (VEM31111)

Specifications

Ordering

Catalog Number	VEM31111
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, Not Regulated / Exempt, Undefined Efficiency
Insulation Class	B
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	80 %
Rated Efficiency	76.80 %
Service Factor	1.25
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	0.750.000 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	ODP
Frame Material	Steel
Motor Frame Size	56C
Motor Base Type	No Mounting
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	11.125 in
Product Net Weight	25 lb
Product Net Width	11.5 in
Dimension Diagram	34LYF012

Certificates and Declarations

Certification Agency	CURUSEEV
IDEA Granular Category Code (IGCC)	1325 >> General purpose motor AC
ETIM 7	EC001851 - Electric motor
