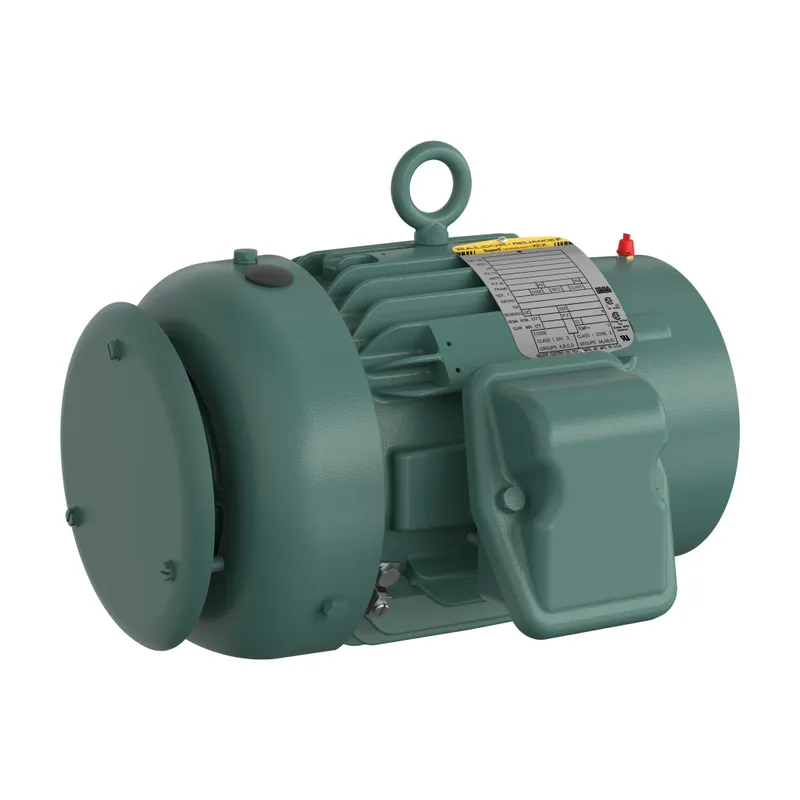

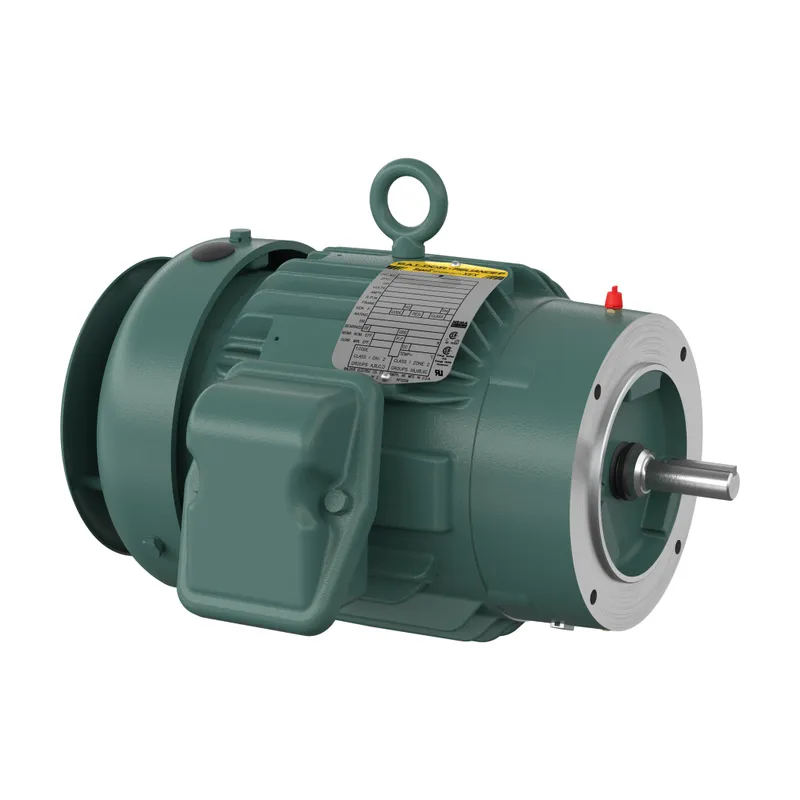

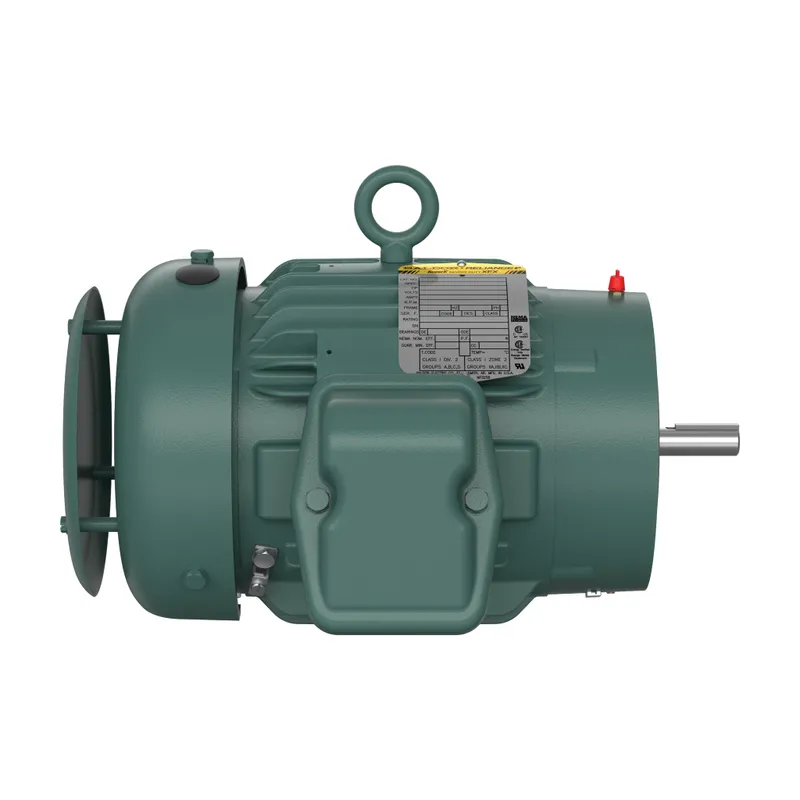

ABB VECP3580-4
1HP,3450RPM,3PH,60HZ,56C,0516M,TEFC
- MPN
- VECP3580-4
- Category
- XEX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB VECP3580-4?
Severe Duty Motor 1 Hp 460 V (VECP3580-4)
Specifications
Ordering
| Catalog Number | VECP3580-4 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015100 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | 2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 2P |
| Number of Speeds | Single Speed |
| Power Factor | 82 % |
| Rated Efficiency | 84 % |
| Service Factor | 1.25 |
| Temperature Class | T4 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 3600 r/min |
| Output Power | 1 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group A, B, C & D A |
| Frame Material | Iron |
| Motor Frame Size | 56C |
| Motor Base Type | No Mounting |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 13.123 in |
| Product Net Weight | 60 lb |
| Product Net Width | 13.75 in |
| Dimension Diagram | 05LYF005 |
Certificates and Declarations
| Certification Agency | CCSA US, CSA EEV, NEMA PREMIUM, NEMA_PREMIUM, UR |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| ETIM 7 | EC001851 - Electric motor |
